Patio door handle marked K K

Quick Learner from East Bethel, MN

Jan 20, 2018 6:43 pm

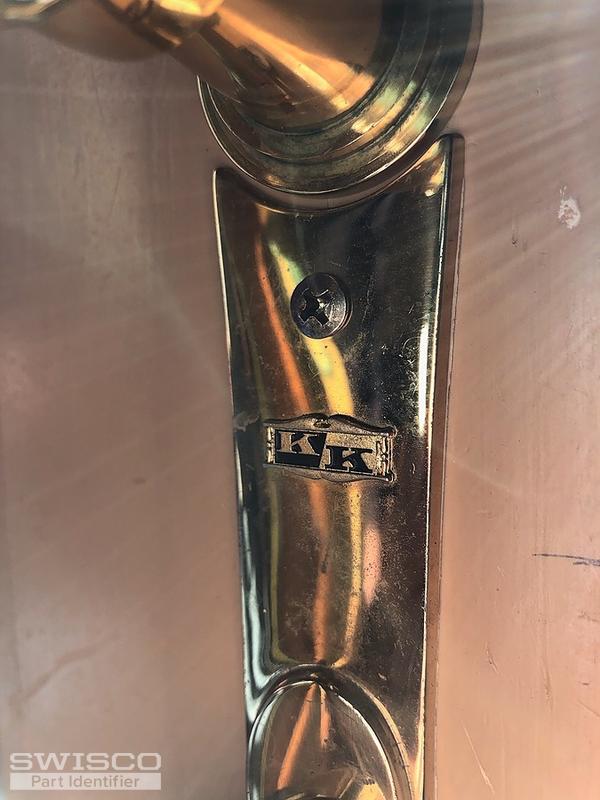

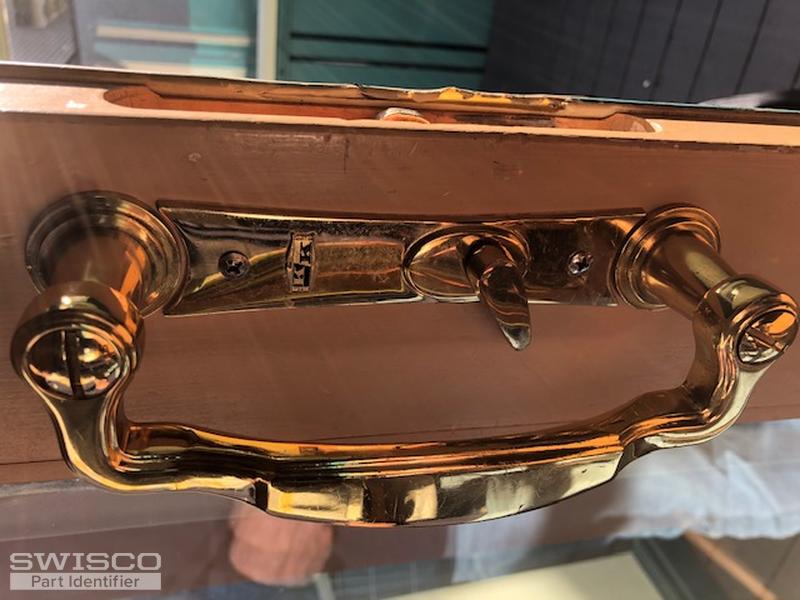

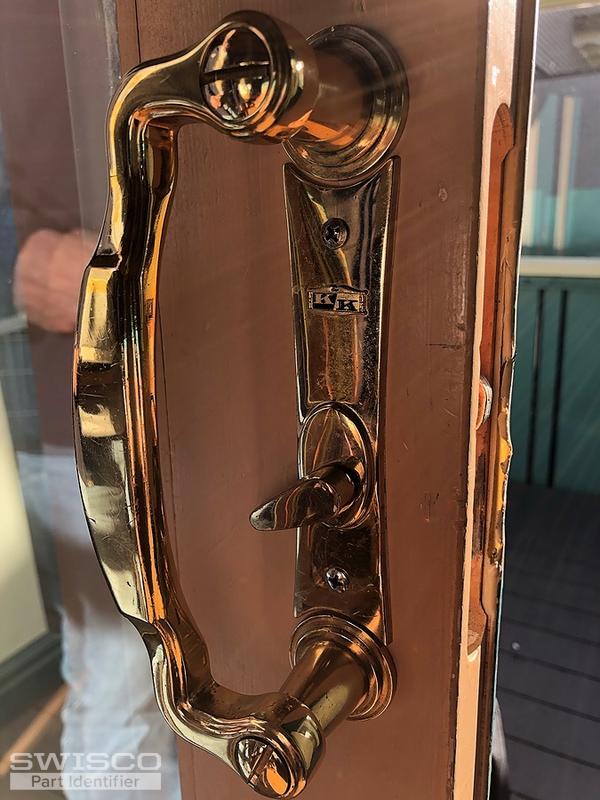

Wondering if you have a replacement for the attached photos, patio door handle and hardware. The handle is marked with a K K (see photo). The holes are 4 (or probably 3 15/16") on centers. Thank you.

10 Replies

Dave Sr. from SWISCO

Jan 26, 2018 12:29 pm

Based on that hole spacing, you can use the 82-033 handle. If you also need the mortise lock, check out 82-226 on our site.

Quick Learner from East Bethel, MN

Jan 26, 2018 7:09 pm

Thank you for the information! Do you also have a keyed model?

Professional from CA

Jan 29, 2018 4:00 pm

82-020 should also match nicely.

Dave Sr. from SWISCO

Feb 5, 2018 12:46 pm

You could install our 82-310 key cylinder into the exterior handle. Or you could also purchase the 82-306 handle with the key already installed.

Professional from Pacfic Grove, CA

Dec 30, 2020 11:54 pm

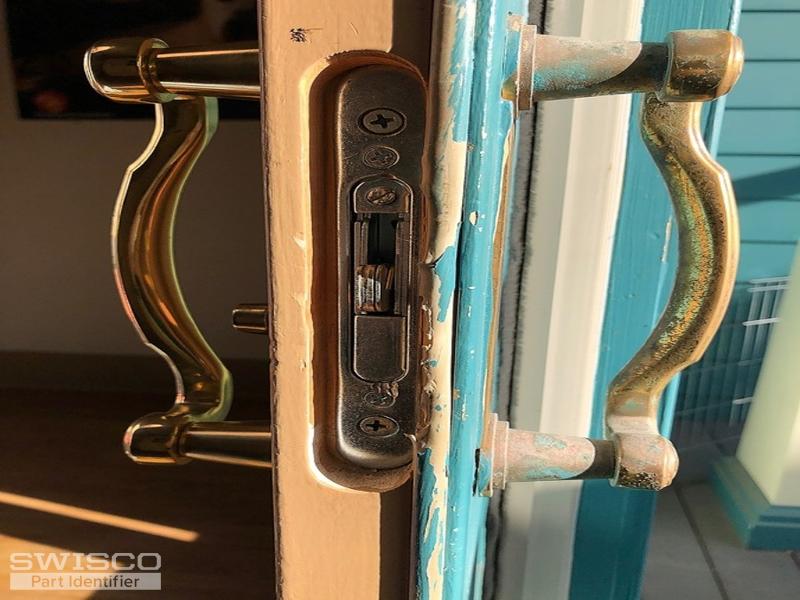

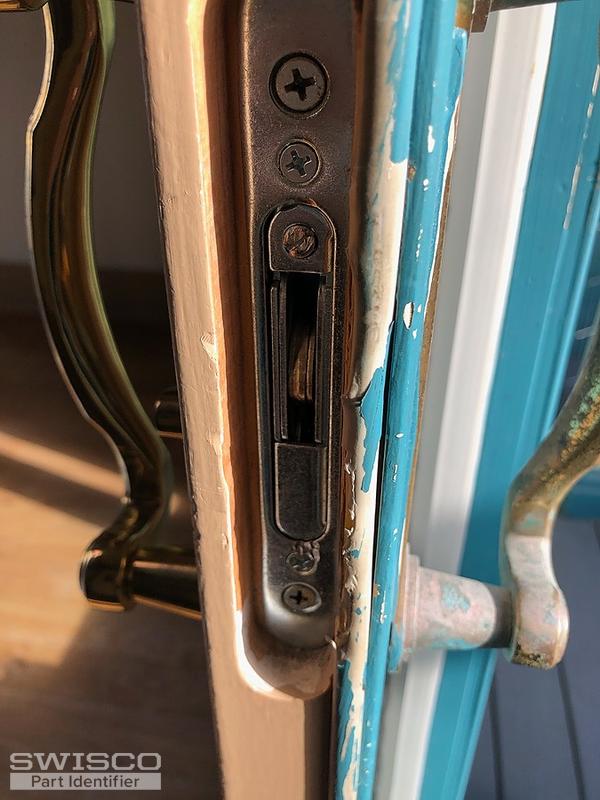

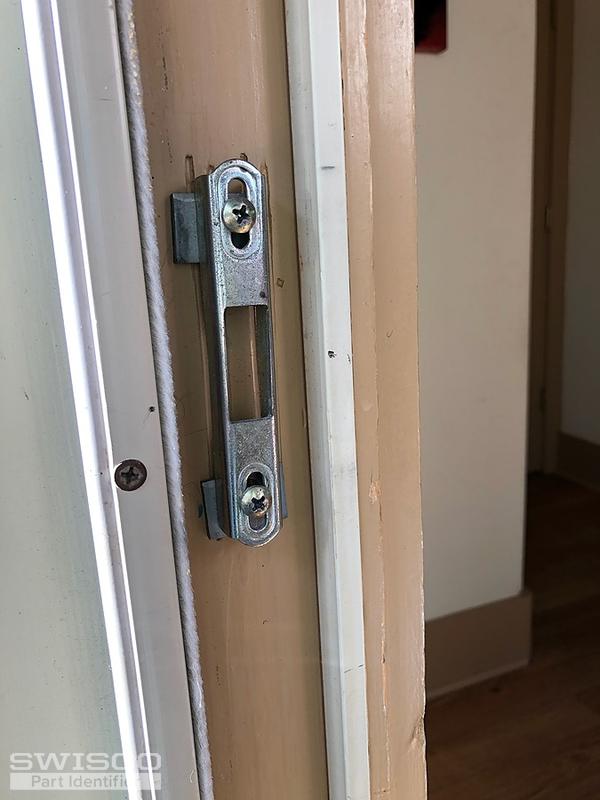

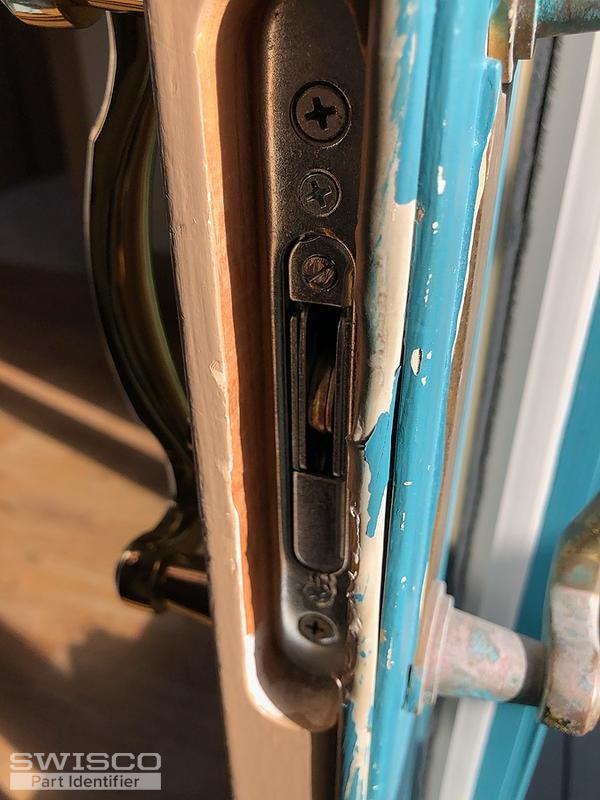

I am a locksmith & need to convert this sliding glass door lock to a Schlage Keyed outside lock. I have the cylinders, but don't know what handle set or outside plate to use. I have no problem replacing all with new latch, but would like it to fit with as little modification as possible. 1 3/4" thick door. aprox 4.5" mortise lock case screws & aprox 4.5" inner handle plate screws between centers. What can you advise?

5 user uploaded images

Casey from SWISCO

Dec 31, 2020 12:03 pm

Hello, thank you for writing in. Could you confirm the distance between the installation holes on your handle set? Based on this old discussion it looks like it might be 3-15/16". In this previous discussion we recommended the 82-030, which can be keyed with the 82-310. Let me know what you think.

Professional from Pacfic Grove, CA

Dec 31, 2020 4:26 pm

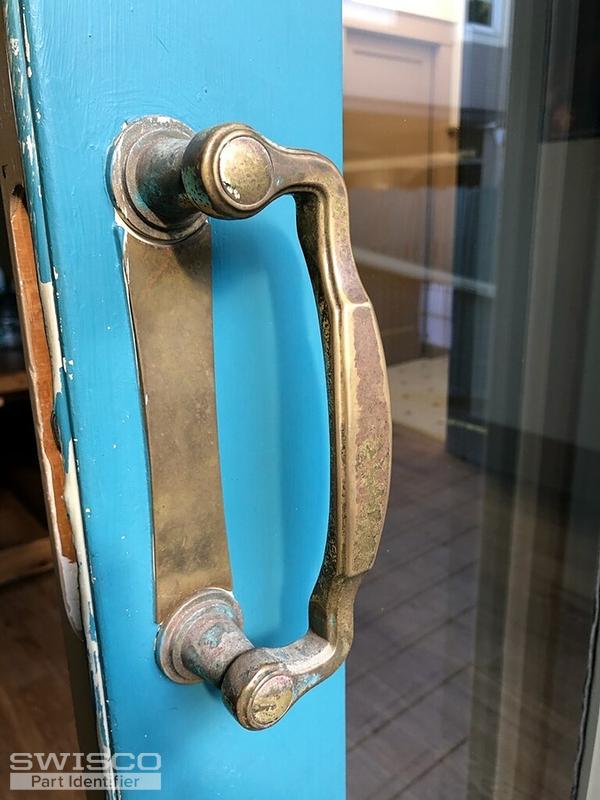

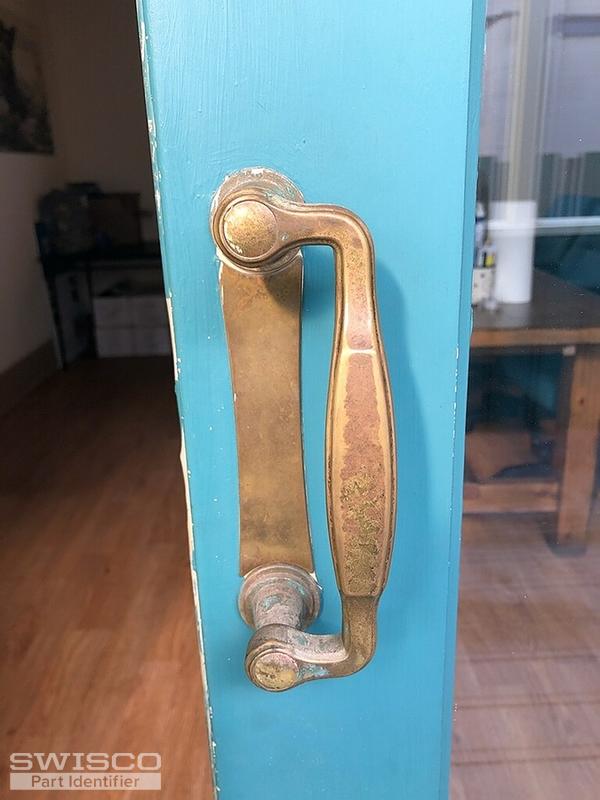

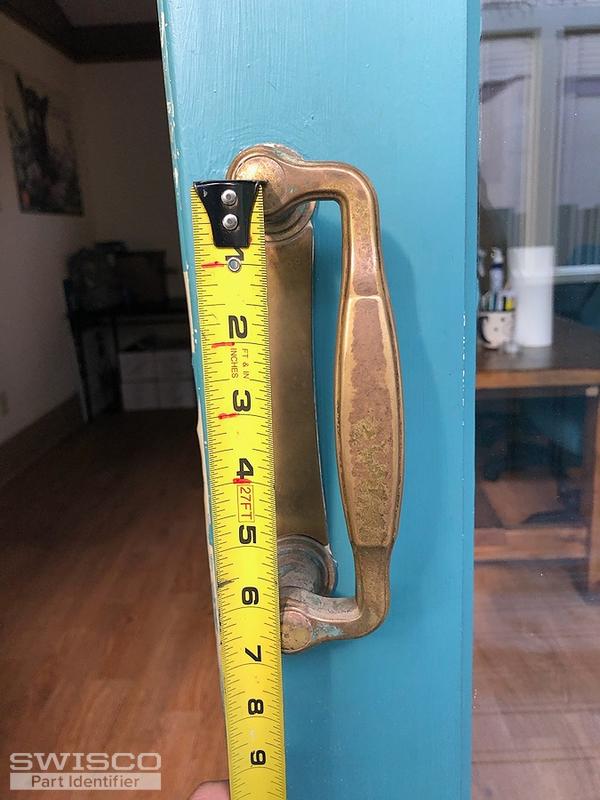

Attached photos of Handle on outside of door -- you can see about 6 1/2" centers on handle itself. I believe screws in on inside door handle plate are slightly less than 4" on center. Please advise.

5 user uploaded images

Professional from Pacfic Grove, CA

Dec 31, 2020 4:32 pm

Not sure the 82-030 would work because the Mortise Lock and the inside locking lever are NOT on the center of the handle, but a distance below center

Casey from SWISCO

Jan 4, 2021 10:10 am

The location of the latching lever on the 82-030 can actually be adjusted, so I think you would be good as far as that goes. As long as the screw holes match up, I think the 82-030 is a good candidate for a substitute handle set!
