Patio door handles key lock on exterior and manual lock interior

Question

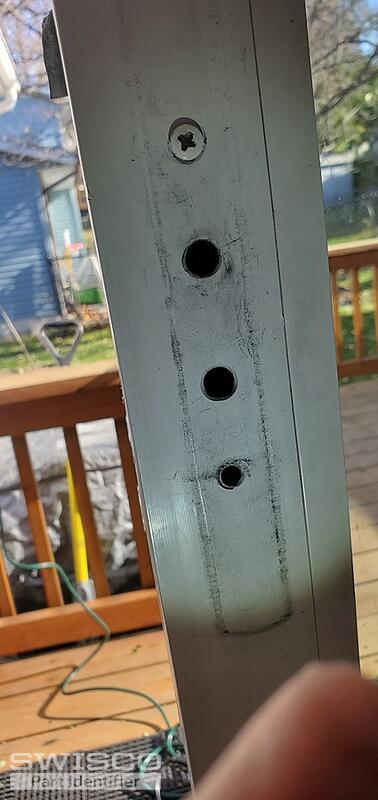

One picture shows the mortise lock assembly physical size, which is functioning and doesn't need replacement. Another picture has the damaged 1 and 5/8 in Long 8/32 screw and a 8/32 cylinder nut, 1 inch long. The fourth picture shows the damaged handle plate for the exterior. The fifth picture shows the interior handle holes in the door frame.

Jasmine · Accepted Answer

Thanks for writing in! Your handle set reminds me of our 82-086 Legacy Keyed Handle Set. This set comes with the fasteners to attach it to the door as well as its own set of keys. Your mortise lock, sold separately from the handle set, looks like it could be the 82-265 Multi-Point Mortise Lock.

Take a look over the dimensions for each of these parts and compare them to your existing hardware to confirm that these are the right fit for your patio door.

Dimensions for 82-086

Alternate image for 82-265
