Patio door lock

A quick learner from Yuma AZ says:
July 22, 2022
Hi patio door lock doesnt have a catch or a key.
Need the complete replacement kit.

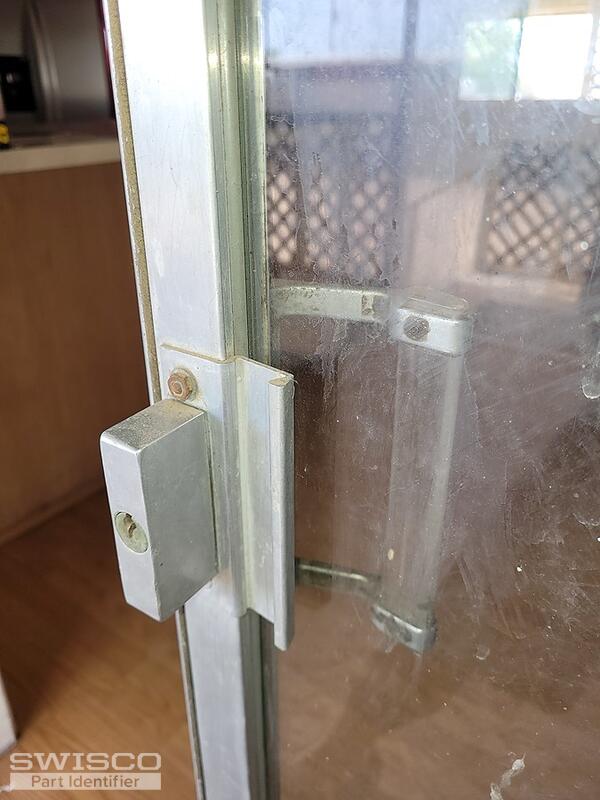

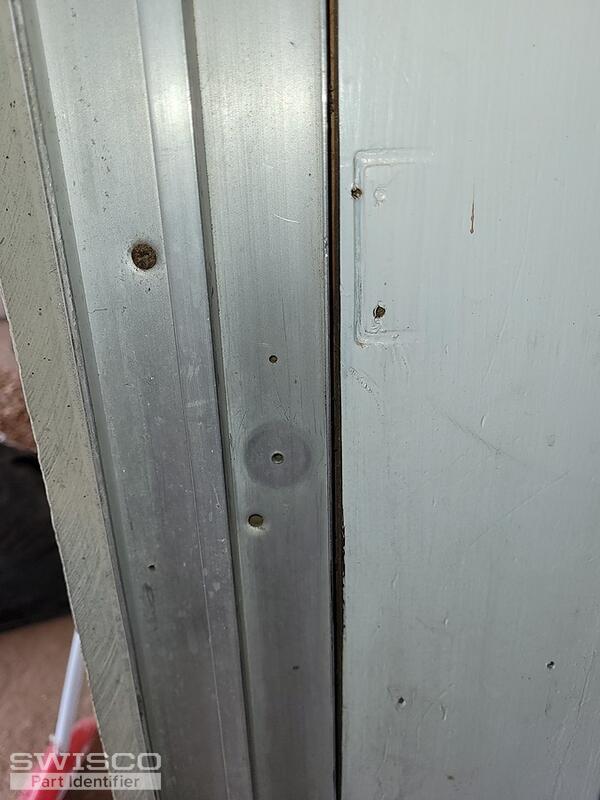

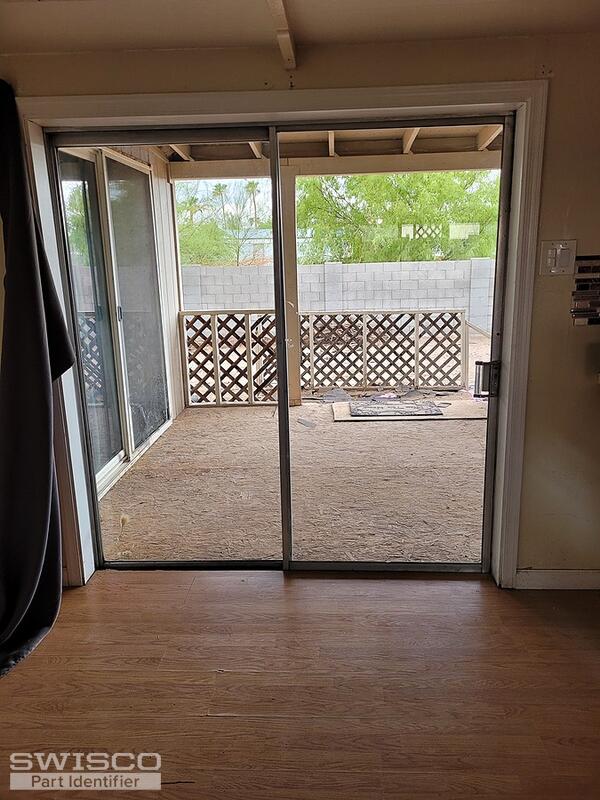

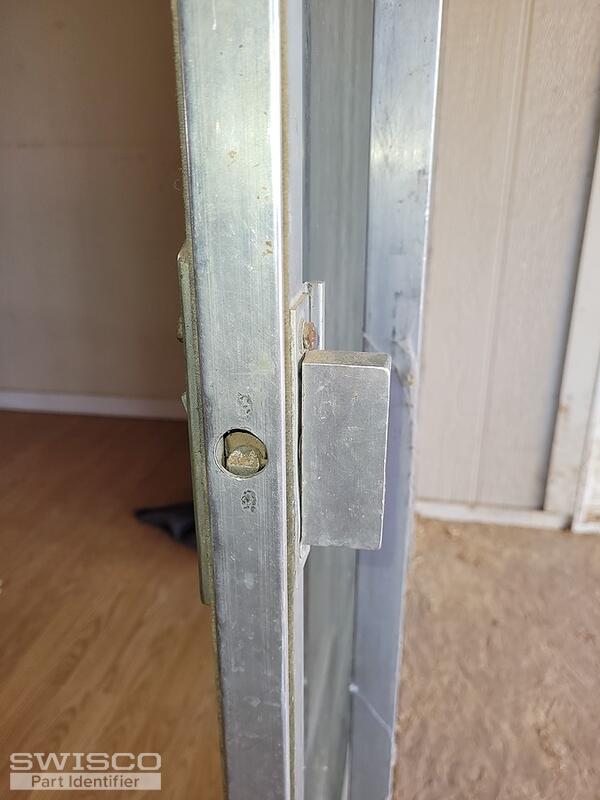

Thumbnail of the uploaded file named 20220722_095121.jpg
Thumbnail of the uploaded file named 20220722_095127.jpg
Thumbnail of the uploaded file named 20220722_095131.jpg
Thumbnail of the uploaded file named 20220722_095138.jpg
A quick learner from Yuma AZ says:
July 22, 2022
What keeper would work was my initial query...
A quick learner from Yuma AZ says:
July 25, 2022

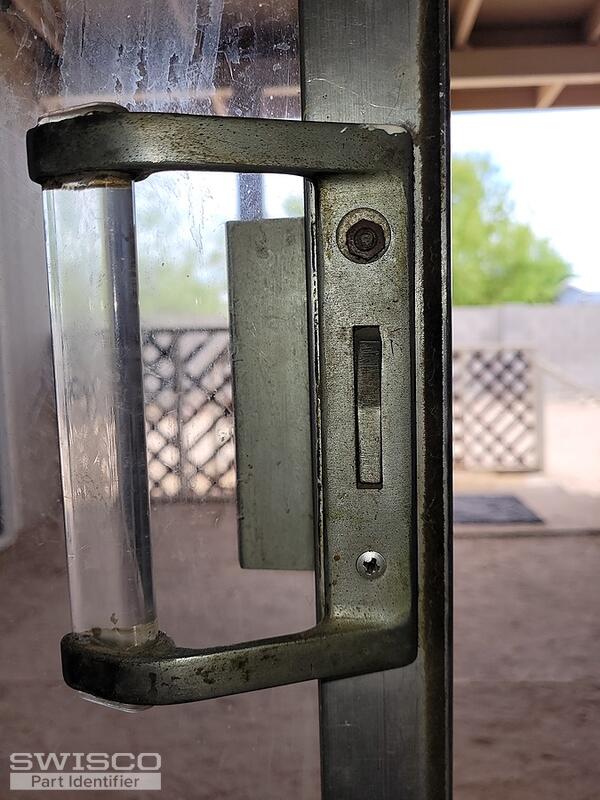

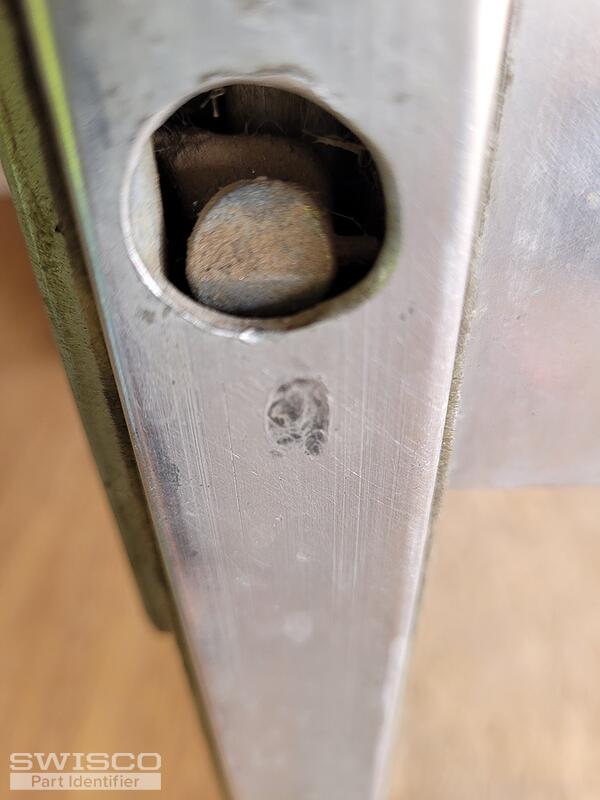

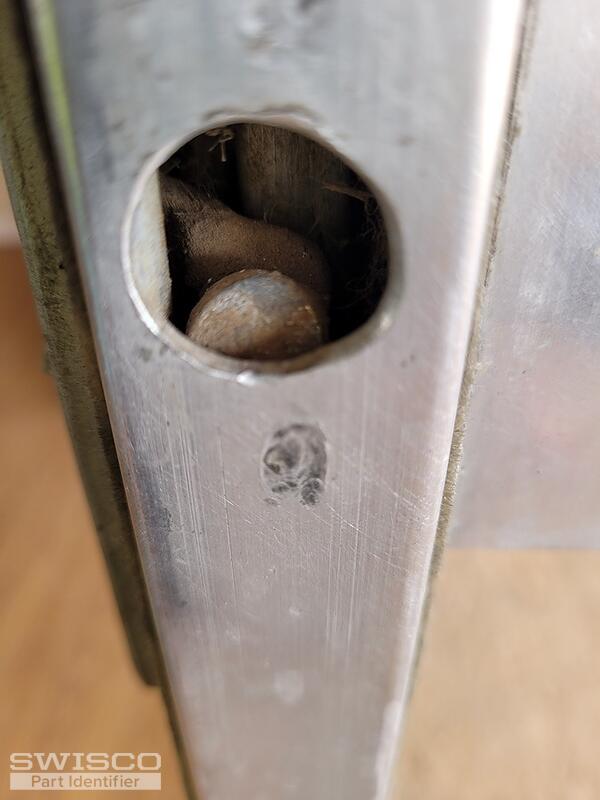

Locked and unlocked positions
Thumbnail of the uploaded file named 20220725_111105.jpg
Thumbnail of the uploaded file named 20220725_111022.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
July 27, 2022

Hello, thank you for posting,

Unfortunately we do not offer a compatible keeper or a suitable alternative for this style of handle set. The best we can offer is converting to a surface mounted handle like the 82-009A or the 82-005 handle sets. For the the 82-005, you would need to make sure there is enough room to install the keeper to the jamb. Both these handles have 4-15/16" installation holes from center to center. Drilling new installation holes may be necessary.
A quick learner from Yuma AZ says:
July 30, 2022
Thanks Lauren...

I ordered every keeper you carry and guess what a MILLER SLIDING GLASS DOOR KEEPER
#89-040 worked perfectly.

So if you have my style of slider a Miller keeper works.

Mahalo!
Profile picture of Lauren
Lauren from SWISCO responded:
August 1, 2022

Hello!

Thank you for letting us know! We appreciate your feedback and happy to hear that the 89-040 keeper worked for your style of door.
A quick learner from Yuma AZ says:
August 1, 2022
No worries...
Door works awesome with the Miller keeper from SWISCO!!
Thumbnail of the uploaded file named 20220730_141205.jpg
