Patio door lock replacement

Question

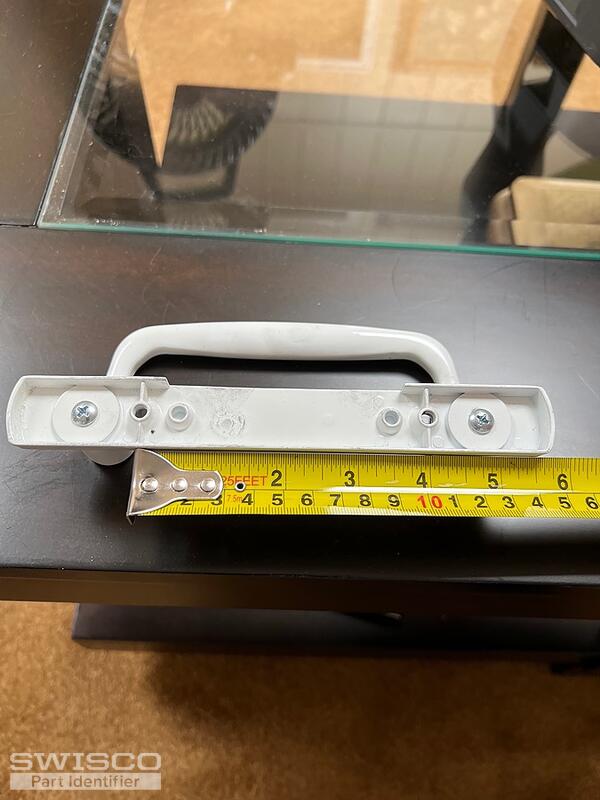

Replacing lock and handle for NA / 70 Series 2 panel - 5800 patio door. 94.5625 x 79.5. Purchased from Home Depot July 2014. Guessing 82-265 would be the correct lock? Should I also order a replacement point keeper 82-249? Would handle 82-030 be appropriate? Other recommendations? Thank you.

Jasmine · Accepted Answer

Thanks for writing in! It does appear that our 82-265 is the correct replacement. Be sure to double check the dimensions shown on the diagram below to confirm with certainty.

Alternate image for 82-265

In regard to the handle set, I'll need to see the other side of the handle as well as the thumb latch and the position of said thumb latch. It looks like 82-030 could work but I'll need a bit more information to determine if this is the right replacement.
