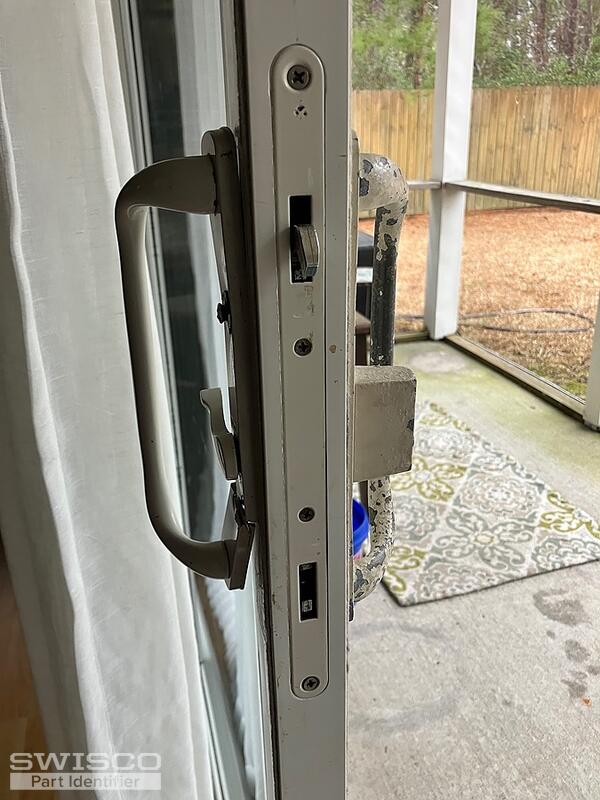

Patio door replacement handle

Question

Inside handle overall 9 1/2"
Inside screw spacing 3 7/8"
Outside handle overall 9 1/2"
Outside screw spacing 3 7/8"
Mortise overall 11 5/8"
Mortise mtg screws 10 7/8"
Mortise screws 3 1/8"
Mortise double point latch spacing 6 1/2" center to center
Difficulty finding part???
Thank you
Neal

Lauren · Accepted Answer

HI Neal, thank you for posting,

The closest we carry to your original style is the 82-086 handle set that has a 3-15/16" installation hole spacing from center to center along with the 82-265 mortise lock that has a 11" installation distance from center to center.

Please double check the original dimensions to see if these parts will fit your door. Also see the compatible 82-249 keeper. Let us know what you think!

Dimensions for 82-086

Alternate image for 82-265

Please note that when we see this type of breakage to the handle, it may be due to the door being harder to open. This could be caused by a damaged track or roller assembles. I recommend checking the rest of the hardware for damage or debris so the handle does not break in the same way.
