Patriot Window (2005) Channel balance

Home Owner from Maryland
Sep 26, 2024 9:26 pm
Windows will not open when I attempt to lift it up. Some of the window appears to have loose strings that connects to the channels

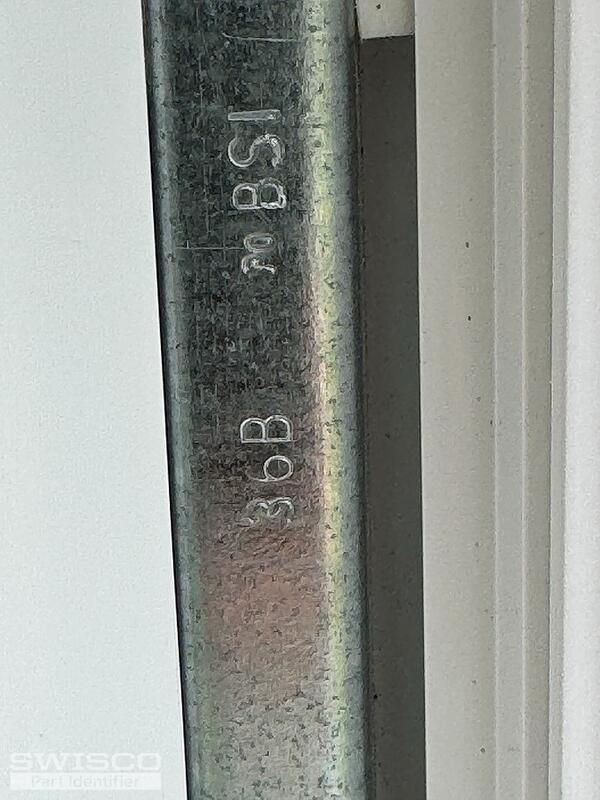

IMG_1320 IMG_1327 IMG_1334 IMG_1328
4 user uploaded images
5 Replies
Casey
Casey from SWISCO
Oct 1, 2024 9:40 am
SWISCO
EXPERT

Hello,

We'd be happy to help but the stamp code on the balance channel does not identify the correct replacements, only the strength of the spring. To get started, we would need to see photos of your balance fully remove from the window, including both ends and the fitting attached to the end of the pulley cord. See the videos related on this page to assist you in the meantime. Thank you.

Home Owner from Maryland
Oct 1, 2024 10:09 am
Thank you very much for your interest to help. I have attached the photos of the balance and hope this might help

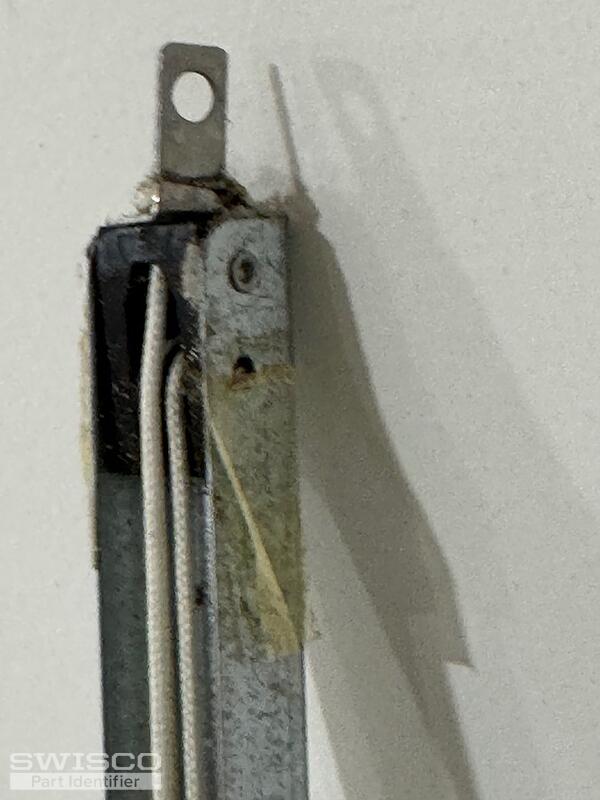

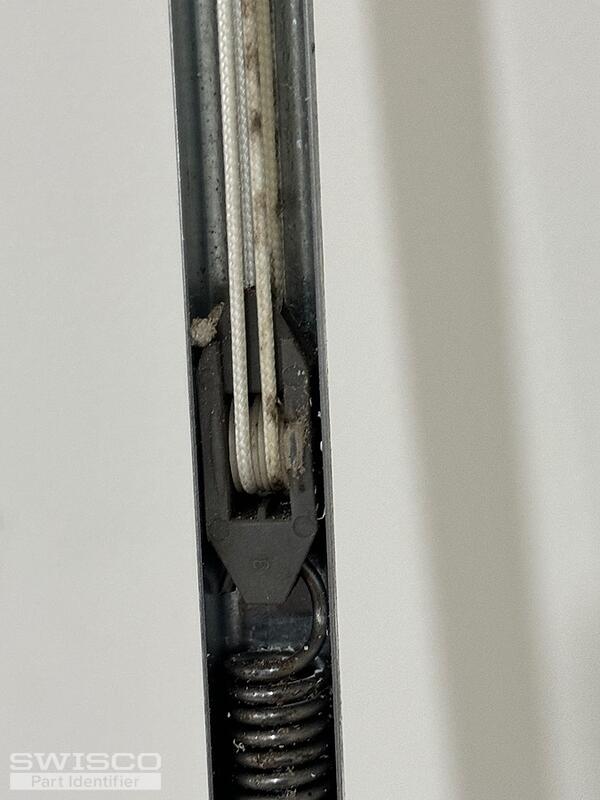

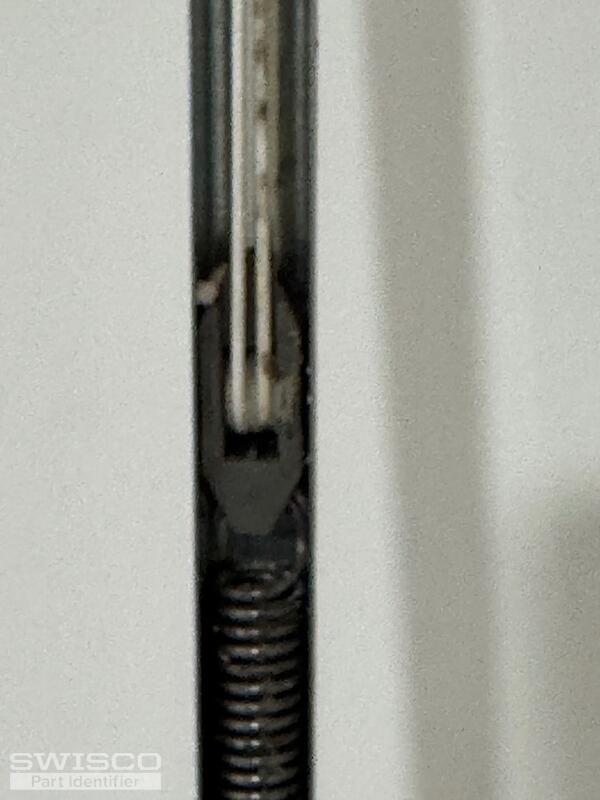

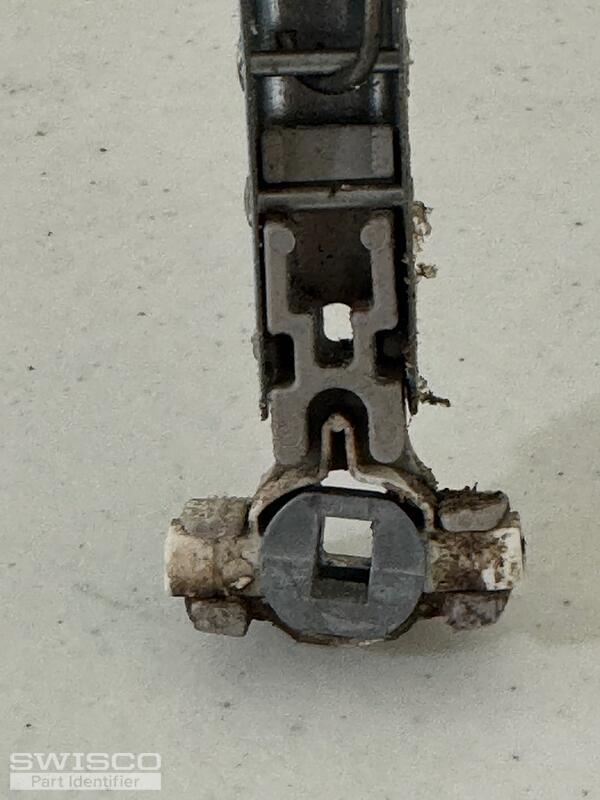

IMG_2165 IMG_2167 IMG_2170 IMG_2174
4 user uploaded images
Casey
Casey from SWISCO
Oct 1, 2024 10:16 am
SWISCO
EXPERT

Thanks for getting back to us. Your balance resembles the S795-36 (36B). Note that this assembly comes with the 15-195 close-cam T-lock shoe but the 15-195B open-cam shoe shown in your photos is available separately. See the video below showing how to swap out the shoes.

Home Owner from Maryland
Oct 1, 2024 11:47 am
Okay, thanks so much with your help. I have 5 defective windows so I will need 10 balances (S795-36B) and 10 shoes (195B). How do l go about in ordering them ?
Casey
Casey from SWISCO
Oct 1, 2024 12:00 pm
SWISCO
EXPERT

Great, you're welcome to purchase the balances and T-lock shoes directly on our website or by giving our customer service team a call at (888) 991-1929.
