36" Series 795 Channel Balance

Product Code: S795-36

Product Description
This is a series 795 block and tackle balance for tilt windows that moderates the operation of your window sash. It uses a specifically calibrated counter-balance system that allows the window to stay open when raised and remain shut when closed.
  • The metal channel is 36" long and 9/16" wide, though it's considered 1/2" wide in the trade.
  • Comes fully assembled with a top screw clip and bottom 15-195 T-Lock Balance Shoe with a Closed Cam. All other shoe styles are sold separately.
  • Used by International and other manufacturers.
  • All window balances are sold individually, not in pairs
  • Can work for either the left or right side of the window interchangeably.

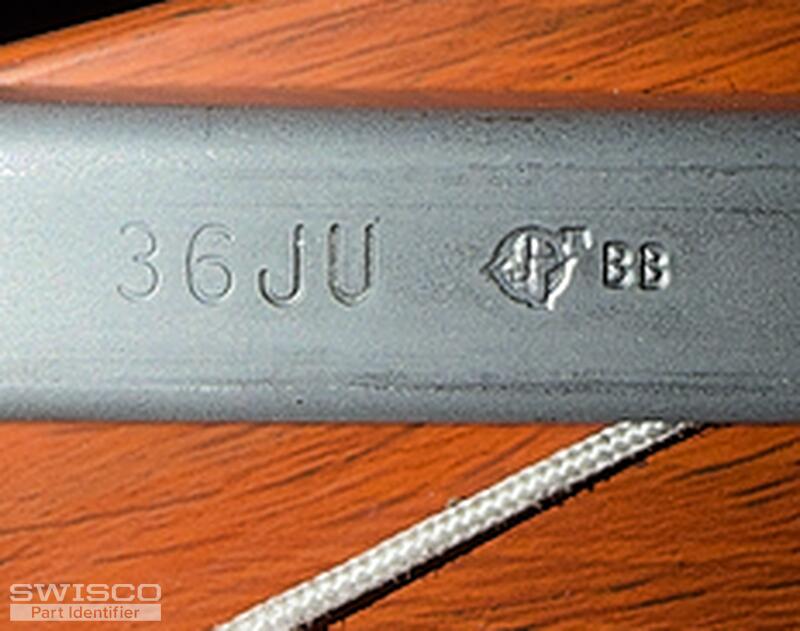

  • Spring strength is denoted by the stamp option printed on the metal channel. If you do not have a stamp option, weigh the sash on a scale and refer to the chart below.
  • Stamp Option Sash Weight Range
    B 16 to 22 lbs
    C 22 to 27 lbs
    D 27 to 32 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
