Patriot Window balances and hardware

A quick learner from New Jersey says:
January 2, 2012
Need to replace both right and left tilt latches, pivot shoe and spiral balances for a set o patriot windows....

Hoping you can help nail down the exact parts....

Any help is greatly appreciated....

Rich

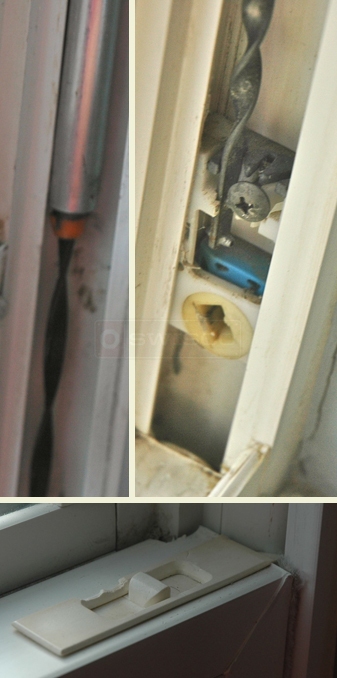

User submitted picture of spiral balance and pivot shoe.
A quick learner from New Jersey says:
January 2, 2012
Here are brighter JPEGS of the pivot shoe and spiral balances....
Profile picture of Paul
Paul from SWISCO responded:
January 4, 2012

Thank you for posting and submitting these pictures to us.

Your spiral balance appears to be the Swisco 600 Series. When obtaining your balance length mesaurement, make sure you're measuring the tube portion of the balance only.

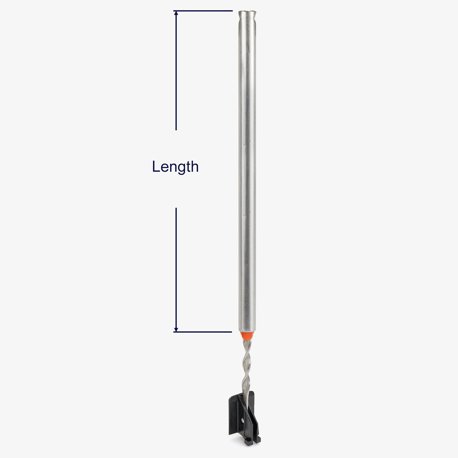

How to measure the length of the Series 303 spiral balance.
How to measure the length of the Series 303 spiral balance.

Also, your color tip option will be "red."

As for the pivot shoe, take a look at the Swisco 15-046 Pivot Shoe-- this seems to be appropriate replacement.

The tilt latches appear similar to the 26-243 and 26-244 tilt latches.
A quick learner from New Jersey says:
January 5, 2012
Thank you so much.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
28" Series 600 Spiral Tilt Window Balance
28" Series 600 Spiral Tilt Window Balance
S600-28
$9.28
