Patriot window parts

A quick learner from USA says:
November 15, 2016
Here's a picture of a part from the side of my Patriot window. It is the same size as the one picture you sent 15-195 but it does not look like the picture you sent. My handyman said a small piece broke off of the end. There are tiny numbers in the piece. They are
_AT #S 6.679.000
4.610.108
D467.420_ (The dashes are for numbers I cannot make out.) To answer your other question Bill did not find any other pieces. I do not know if this will help. Pat

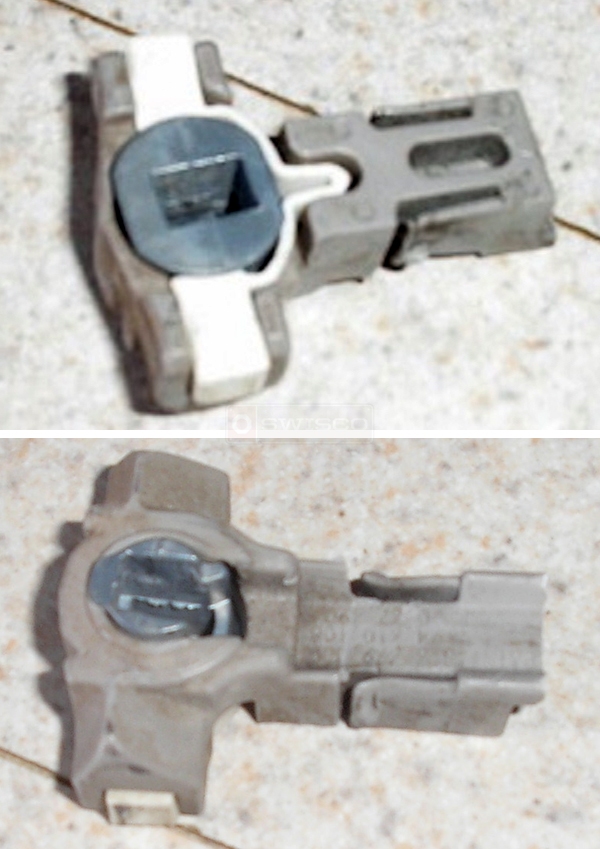

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
November 16, 2016
Thanks for the extra picture! That second picture is a big help. With that in mind, the 15-195 will not work. Your balance and shoe are actually not made anymore. You would need a complete new balance. I believe the Series 795 will work for you.
A home owner says:
November 30, 2016
Series 795 will work. But now which one, 36B, 36C, or 36D? Thanks for your help.
Profile picture of Paul
Paul from SWISCO responded:
December 1, 2016
It will depend on the stamp currently printed on your balance. These options indicate spring strength, so if you aren't sure what you need you can always weigh your sash on a scale to confirm. We have a chart on each Series 795 store page that tells you how much weight each stamp can hold.
