Peachtree Screen Door Roller Assembly

Home Owner from Colorado
Aug 8, 2011 12:31 pm
Hello,

The Peachtree Screen Door Roller Assembly failed on my screen door. You can see this on the attached picture. I have identified a replacement on your web site as Part No. 84-028.

The only dimensions I need before ordering this part is the distance from the axle of the wheel (near the 2 1/8" mark on the ruler) to the screw at the bottom (near the 5/16" mark on the ruler).

Thank you for sending me this information so that I can confirm that the wheel will fit approximately in the bottom hole of the Peachtree screen door.

Hans

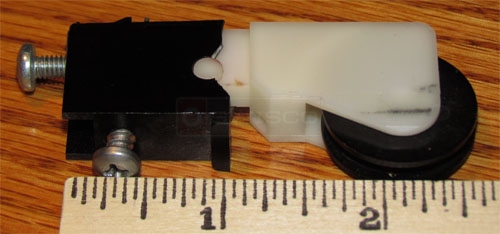

User submitted photo of their Peachtree screen door roller.
3 Replies
Tom
Tom from SWISCO
Aug 8, 2011 2:26 pm
SWISCO
EXPERT
It is tough to measure because the pull from the spring but the dimension you're looking for is roughly about 1-3/4"

I believe the 84-028 is the roller you are looking for. We also have this roller in a metal version, see 84-075.
Home Owner from Colorado
Aug 10, 2011 1:48 pm
Thank you Mike, for this confirmation.

I would assume that a spring is included with each roller assembly, right?


Thanks,

Hans
Tom
Tom from SWISCO
Aug 10, 2011 2:07 pm
SWISCO
EXPERT
Yes Hans, the spring is included with the roller.
