Pella Pro Line series casement window

A contractor from Fox River Grove, IL. says:
Need of the bottom weather strip on a Pella pro line casement window

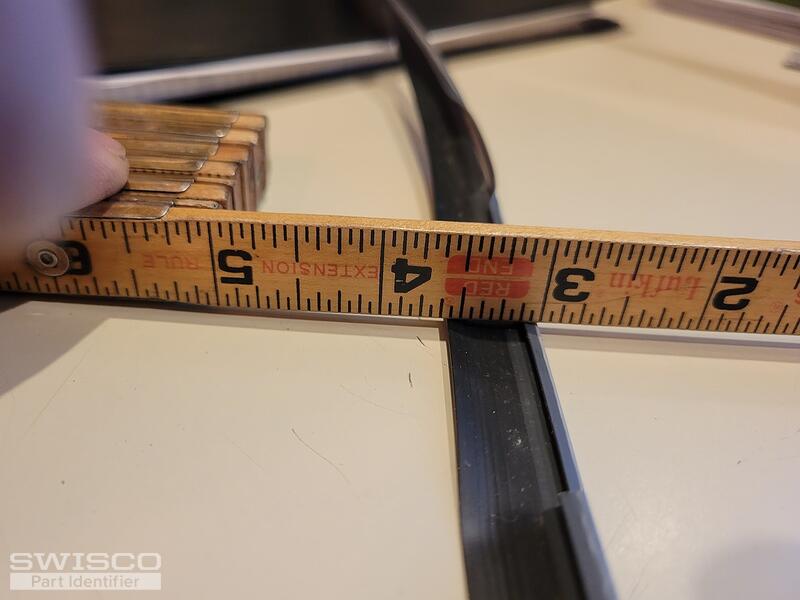

Thumbnail of the uploaded file named Mills prolne weatherstrip.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

We'd be happy to help but we'll need to see the undamaged end profile to compare to our inventory. The video below will go over exactly what we'll need.

A contractor from Fox River Grove, IL. says:

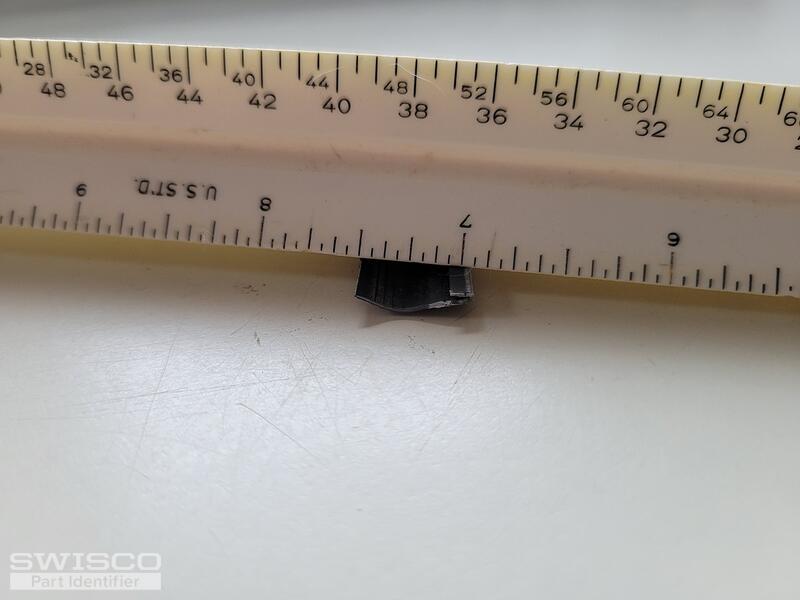

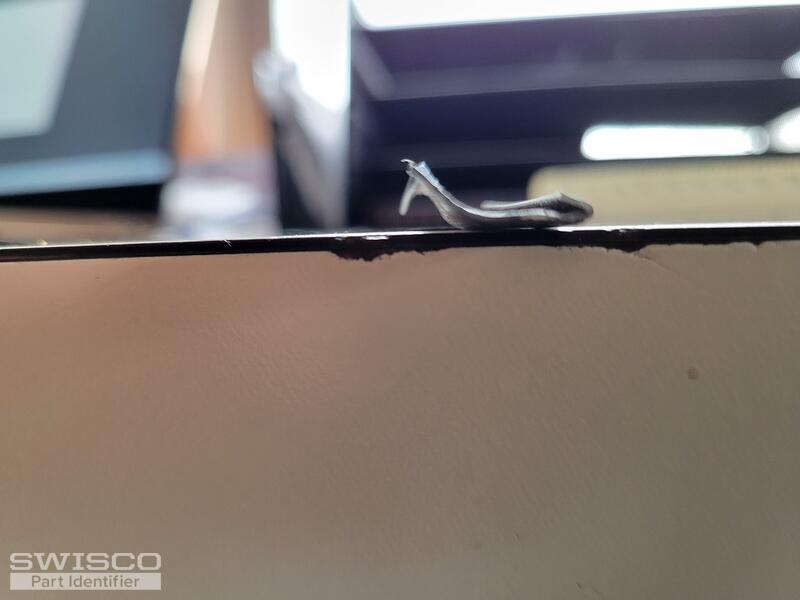

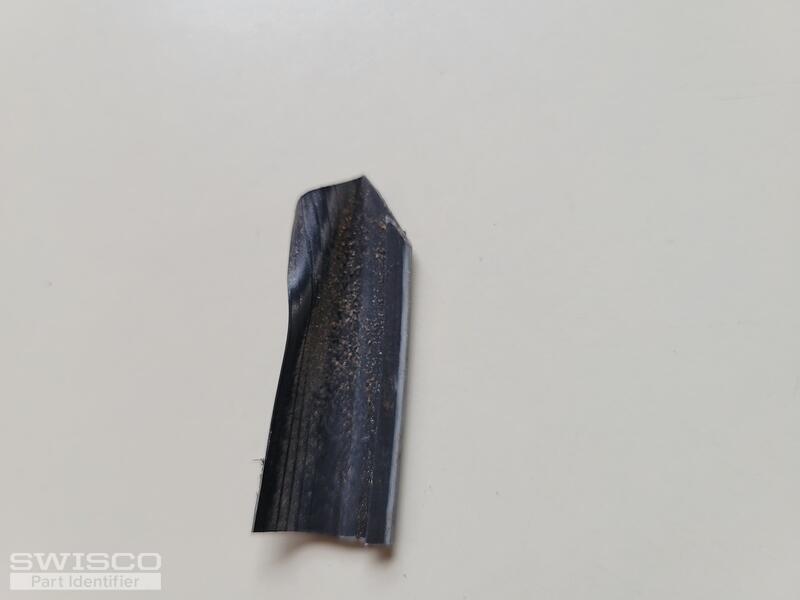

weather strip measures 9/16 X 3/32
Thumbnail of the uploaded file named 20211124_090847.jpg
Thumbnail of the uploaded file named 20211124_090903.jpg
Thumbnail of the uploaded file named 20211124_090919.jpg
Profile picture of Emily
Emily from SWISCO responded:

Thank you for the additional pictures! I'm afraid we don't carry this exact weatherstripping but our 58-178 is similar. I can't guarantee that it'll work but look over the dimensions and see what you think.

A contractor from Fox River Grove, IL. says:
I also need 14 casement 'T' handles
Profile picture of Emily
Emily from SWISCO responded:

We carry a few T handles but I'm not sure which one you need. What is the size of your spline? For instance, our 39-102 fits a 11/32" spline and 39-227B Pella brand T-crank handle fits a 3/8" spline. Look over the dimensions for each and see if any match what you need.

If neither match up or if you're unsure, show us a photo with the window open so that the ars that move the sash are fully visible. Once we can identify the operator, we can determine which handles are compatible with your assembly.

A contractor from Fox River Grove, IL. says:

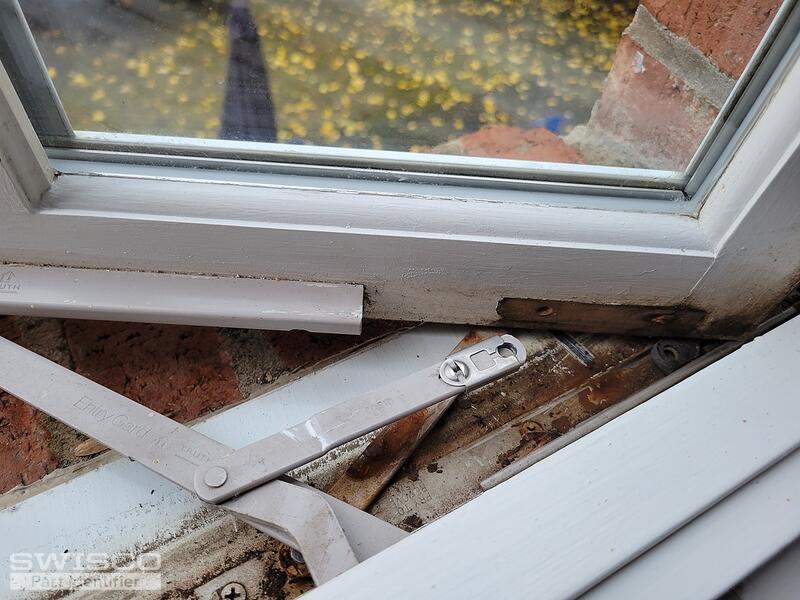

Need 'T' handle for Marvin Casement windows NOT Pella
Also need of a pivot bracket for a Marvin casement
Thumbnail of the uploaded file named 20211112_151107.jpg
Profile picture of Emily
Emily from SWISCO responded:

It looks like you have either the 39-031 & 39-032 or 39-155 & 39-156 operators which are compatible with the 39-102 T handle. It looks like your bracket is missing. Is there an identical window in the house with an intact bracket that you can show us?

A contractor from Fox River Grove, IL. says:
can i just get a stud bracket?
Profile picture of Emily
Emily from SWISCO responded:

The operators I linked you to previously often use the 39-509 and 39-510 brackets but this is just an educated guess. See what you think.
