Pella vinyl replacement window broken spring mechanism : SWISCO.com

Home Owner from New City, New York

Apr 2, 2024 12:27 pm

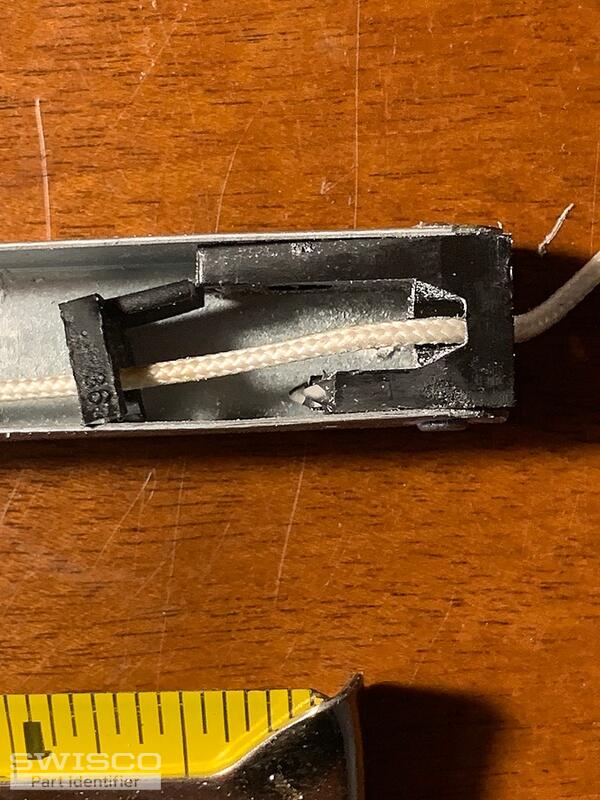

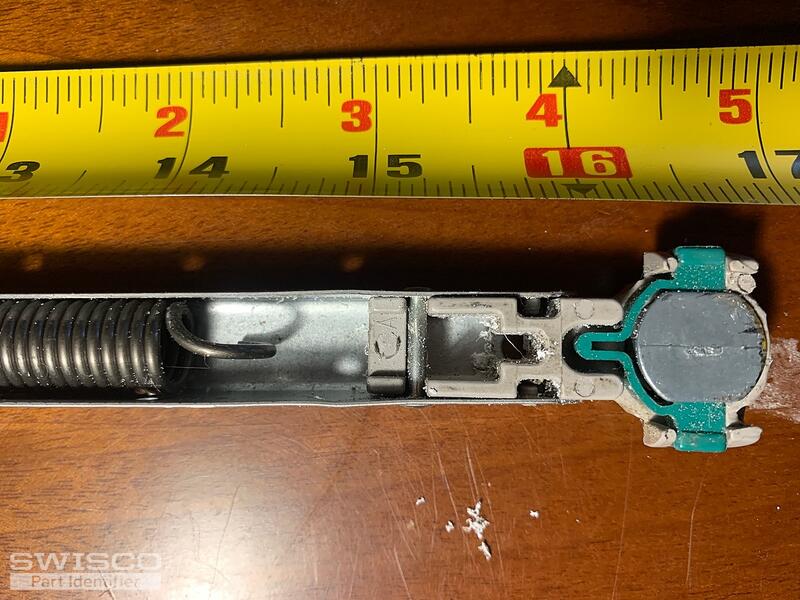

Please find pix of 16"x 1/2" channel and parts from 36x37 Pella replacement double hung w tilt out. Some of the parts are broken and not entirely sure which new ones I need.
Many thanks.
DB

5 user uploaded images

6 Replies

Casey from SWISCO

Apr 3, 2024 11:07 am

Hello,

Your channel balance resembles the S795-16 (16C) with the 15-198 pulley clip and 15-194 T-lock shoe attached. We can supply these balances but it will need to be a custom order since none of our stock balances come with this configuration. We'll just need to confirm the number of balances you need, with the minimum being two, to send over an order link and price quote. Thank you!

Profile view of 15-198

Detail of 15-198

Alternate view of 15-194

Home Owner from New City, New York

Apr 3, 2024 3:48 pm

Thanks for your speedy response.

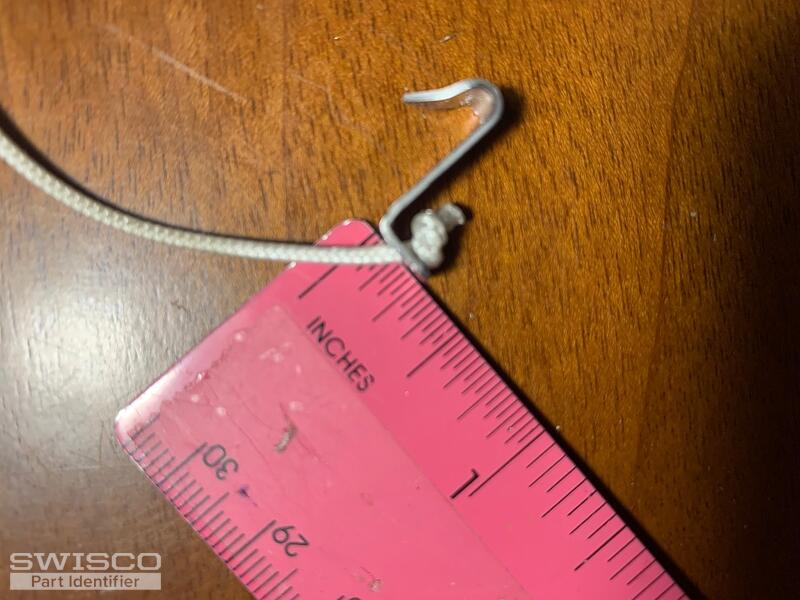

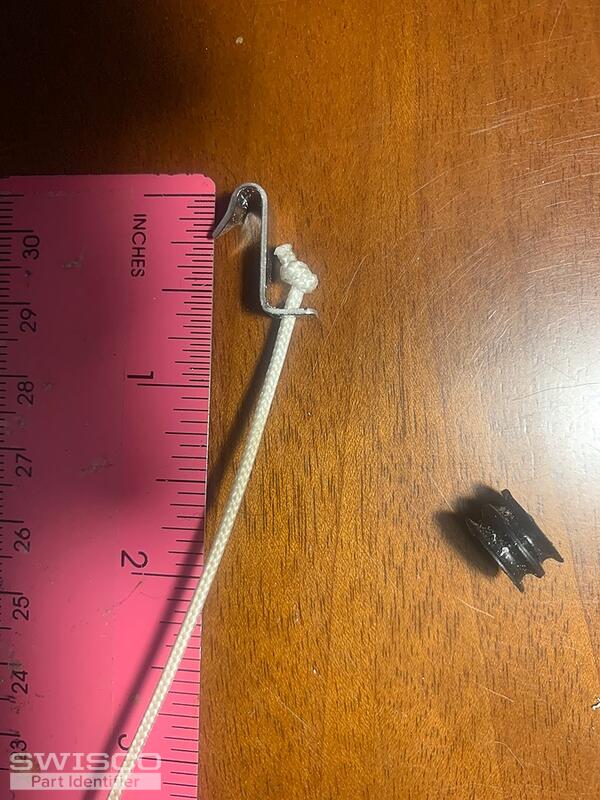

This looks like the right fit. The clip is different, though. See pix.

2 user uploaded images

Casey from SWISCO

Apr 4, 2024 8:58 am

Thanks for getting back to us. Your hook does resemble the 15-198 hook, though it may be a slightly older style. This is a pretty basic part that only needs to install in the jamb cutout. We'll just need to confirm the number of balances that you need to send over an order link and price quote.

Home Owner from New City, New York

Apr 4, 2024 12:15 pm

Perfect.
Thank you for your response.
Will need two balance assemblies.
Thanks.

Casey from SWISCO

Apr 4, 2024 4:16 pm

Great, we just sent over an order link and price quote for the balances you requested. Take a look and let us know if you need anything else. Thanks for posting.
