Philips non tilt channel balance

Start a new Discussion

Quick Learner from Chula vIsta, CA,91913

May 28, 2025 11:45 am

Hi, I will need 4 channel balances for my Philips windows

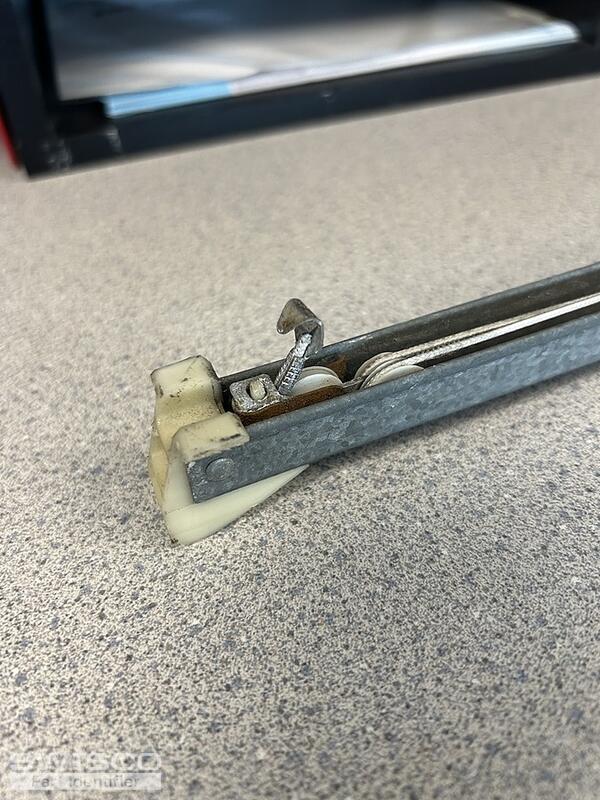

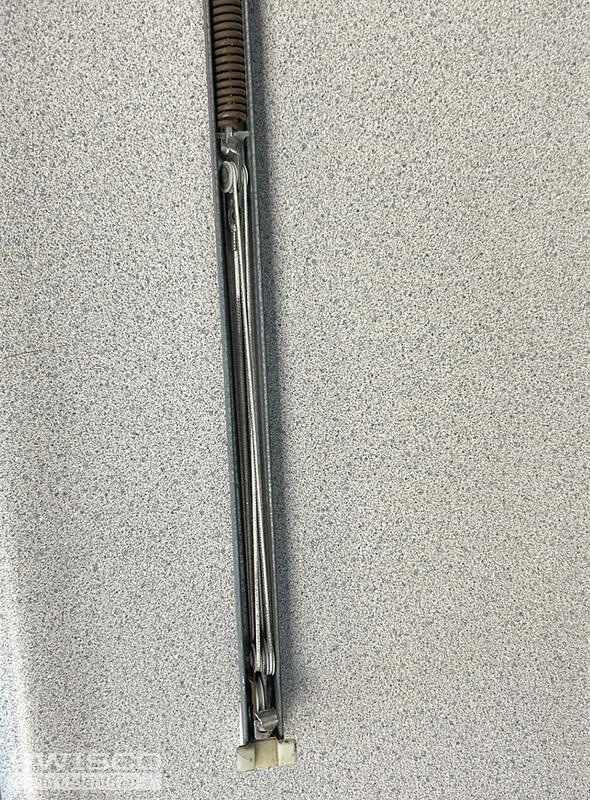

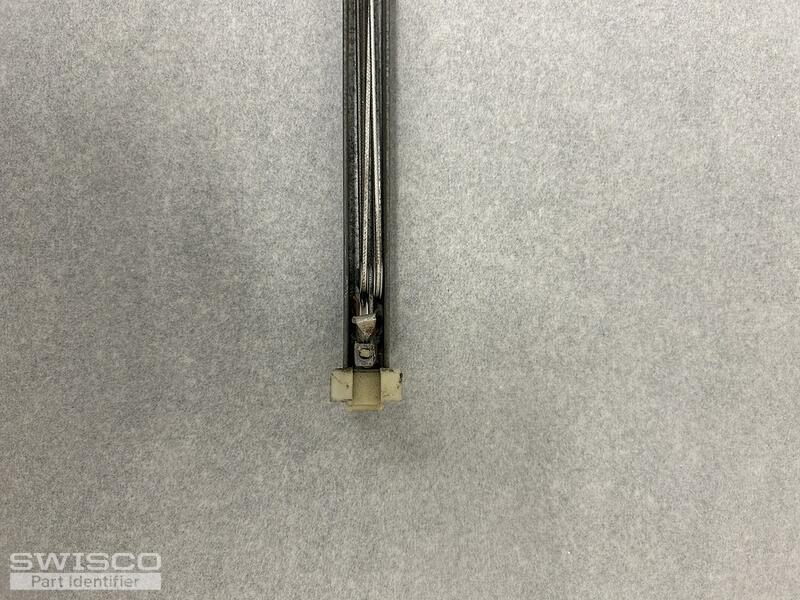

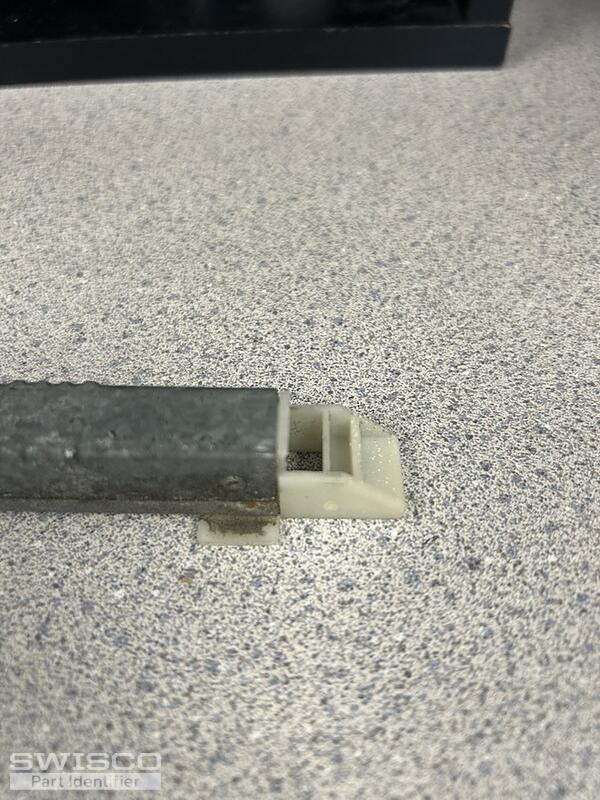

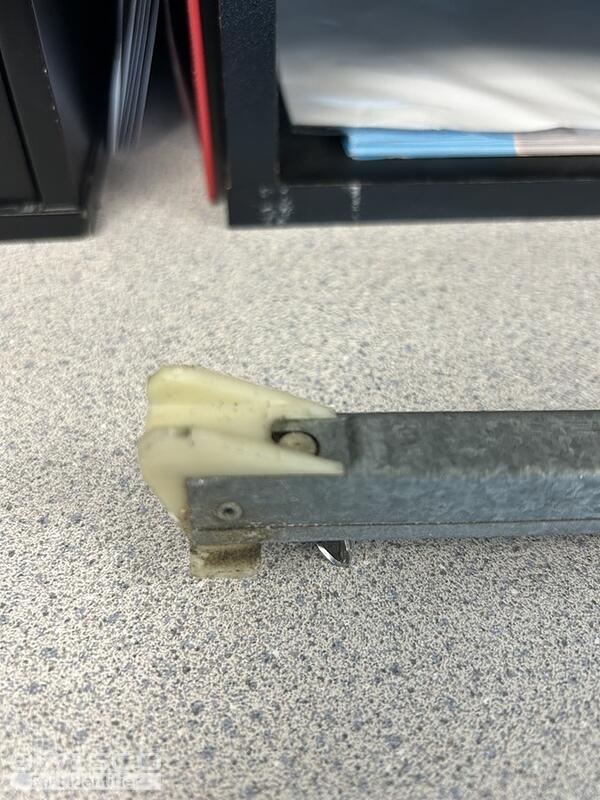

5 user uploaded images

5 Replies

Quick Learner from Chula vIsta, CA,91913

May 28, 2025 2:08 pm

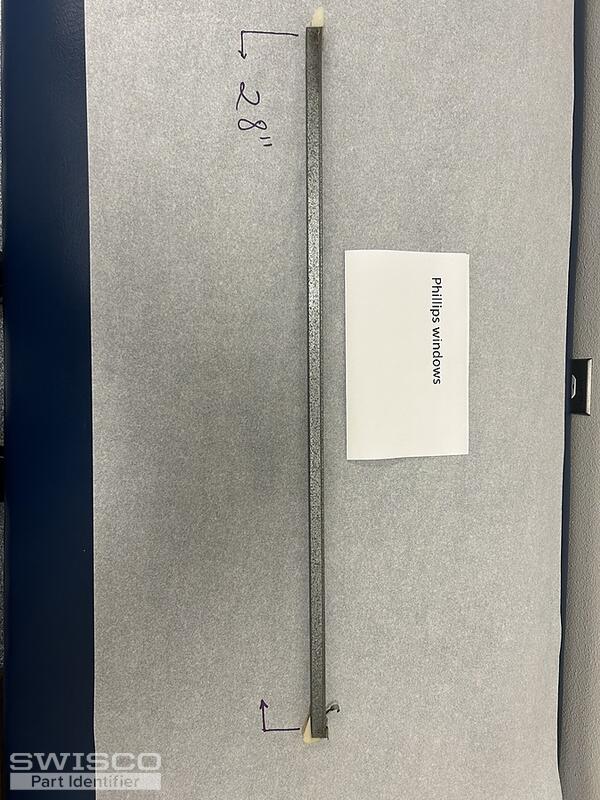

I forgot to add one more picture.By the way the width of the metal channel measures 1/2".

1 user uploaded image

Casey from SWISCO

Jun 2, 2025 1:53 pm

Hello,

We'd be happy to look into this for you, but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Quick Learner from Chula vIsta, CA,91913

Jun 2, 2025 3:35 pm

Hi Casey,

Thank you for contact me .I appreciate your help.

Ron

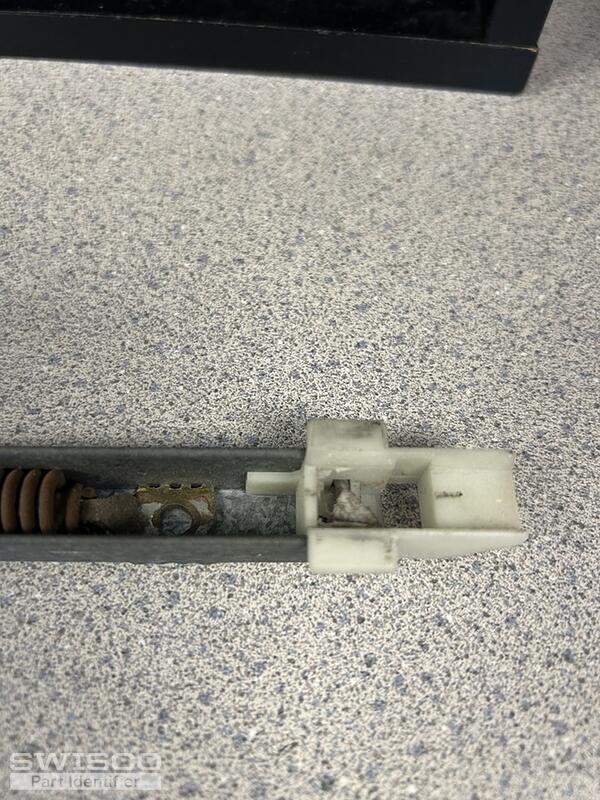

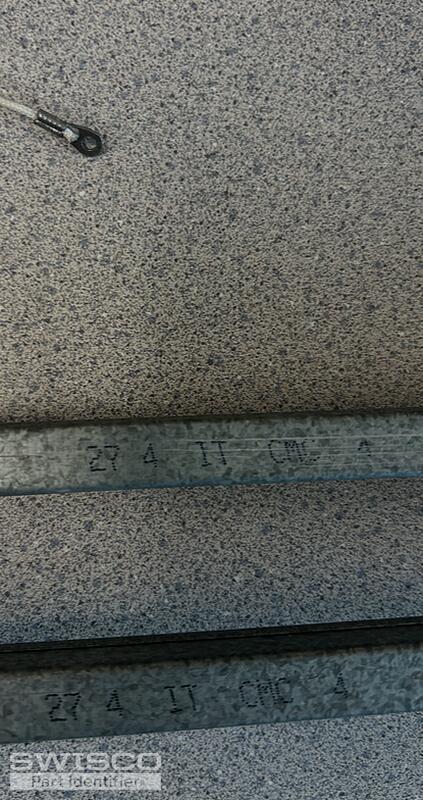

5 user uploaded images

Casey from SWISCO

Jun 2, 2025 4:00 pm

Thanks for getting back to us. With this combination of attachments, you could have either the S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2740 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
