Phillips tilt window parts 2009 construction

Question

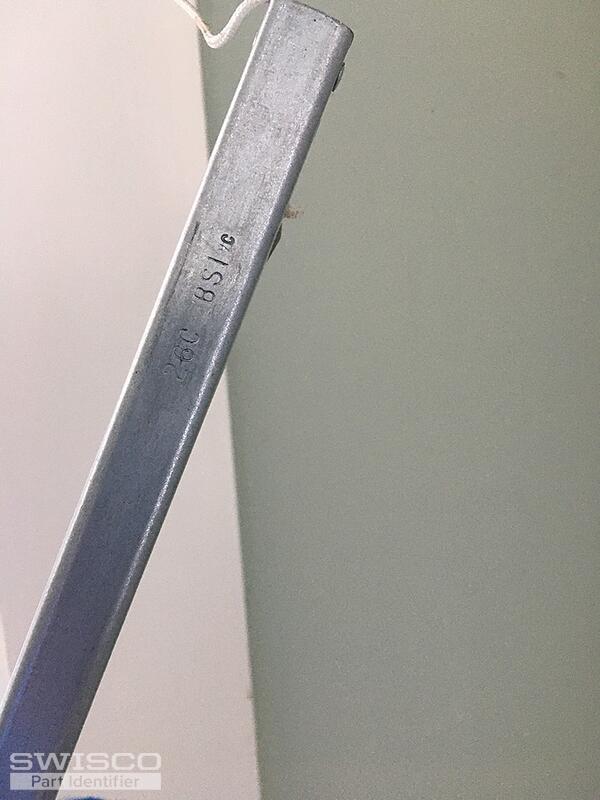

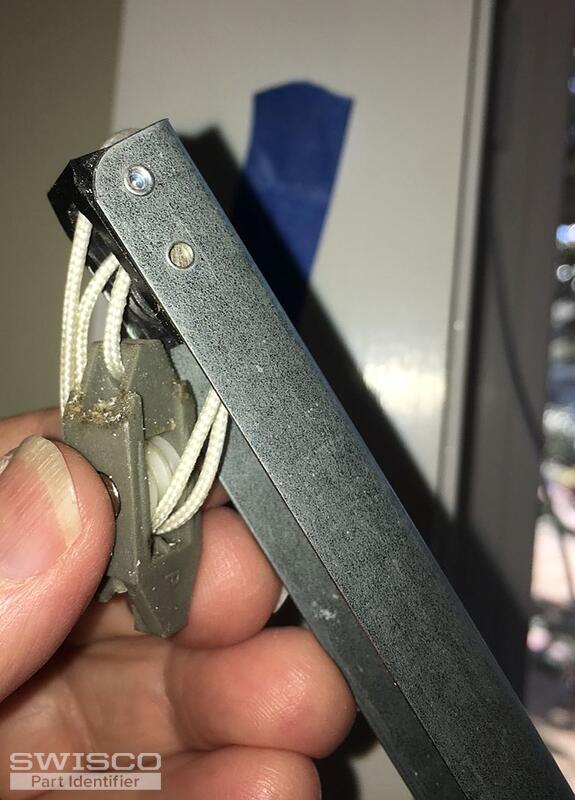

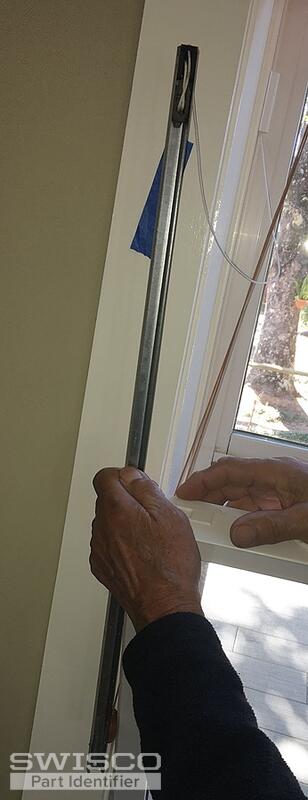

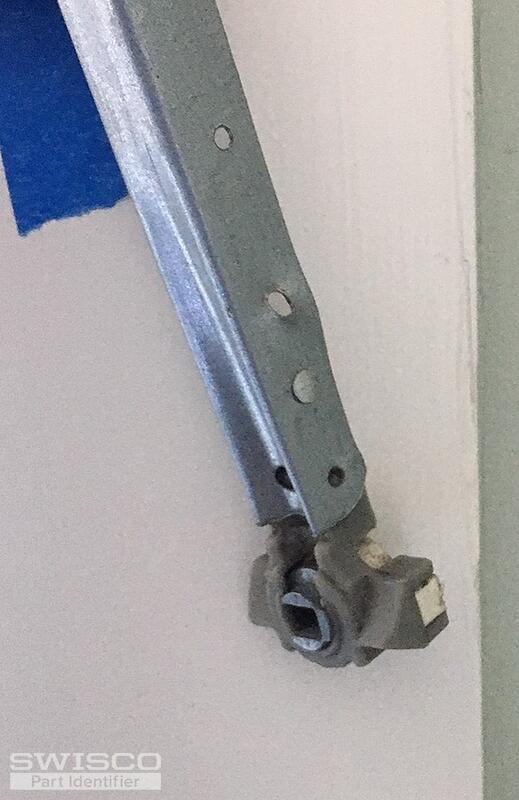

Several windows have broken Channel (26C marking) Balance assembly. The block and tackle pulley has broken away from the spring and the T-lock shoe and rivets in the channel have come apart leaving the spring totally disconnected. Do you have a replacement for the block and tackle pulley or must I buy the whole channel assembly? Does the 26" SERIES 795 CHANNEL BALANCE work for me? Closed Cam might work for T-lock replacement but I find no pulley part replacement. Do I need Open Cam or closed Cam T-lock? I don't know difference.

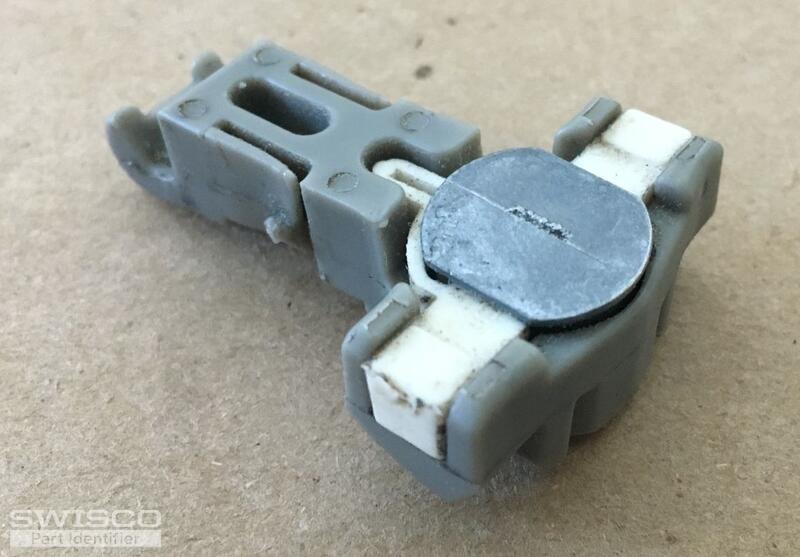

The channel is truly 26" long and 1/2" (or as you suggest, more truly 9/16") wide. the T-lock 15-195 dimensions match mine. My top screw clip is OK.

BTW, I ordered replacement tilt latches 26-243 and 26-244 from you and they work perfectly on my windows.

Do you have a video how to install the Channel Balance assembly in the window frame?

Tom · Accepted Answer

Thanks for reaching out to us. It's not possible to replace the pulley block on your balance, so a total replacement is necessary. The Series 795 should work perfectly well for you, but just note that it connects to the window at the top using a screw. You don't show the end of the cord so you might want to check that before you buy anything just to be sure.

Your old T lock shoe is the closed-cam style, so the shoe that comes with the Series 795 by default is what you want.
