Piviot Lock Shoe Replacement

A handy person from Richmmond, VA, USA says:

Hello:

I have the Series 765 -27 (stamped with a 5) Channel Balance. I need to replace the Pivot Lock Shoe on both sides in multiple windows.

The original Shoe measures:

  • THICK 1/2"
  • WIDE 1 3/16"
  • HIGH 1 13/16"

I find no Shoes in your listing with these measurements, but this Shoe # 15-046 seems the closest. Is this the replacement Shoe I should use?

Thank you,

Ken

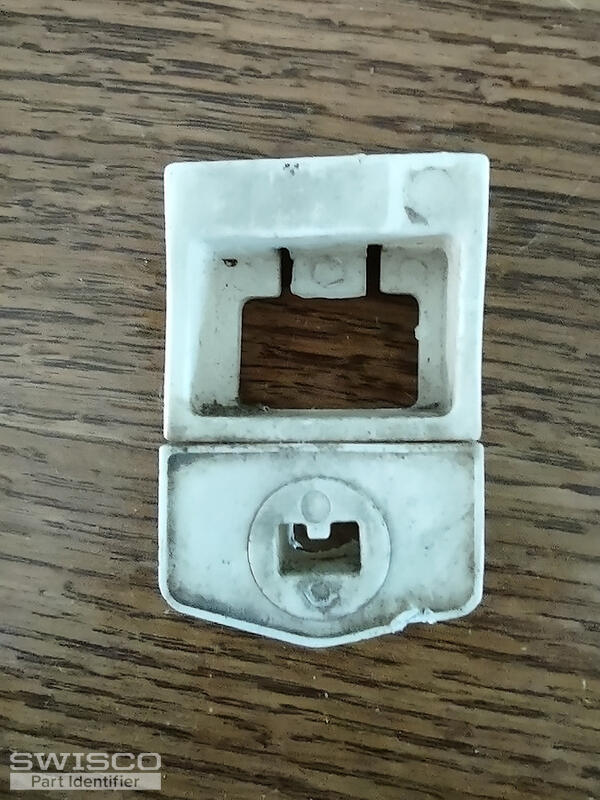

Thumbnail of the uploaded file named Leonard1.jpg

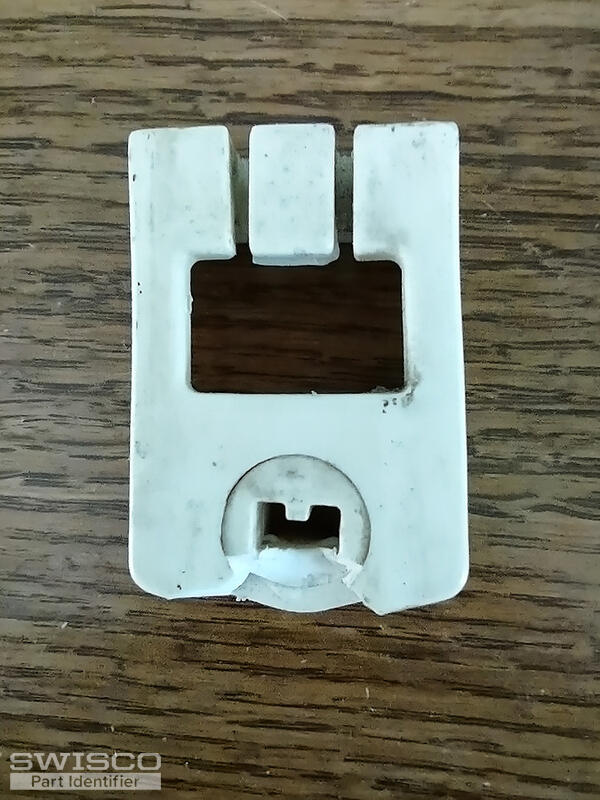

Thumbnail of the uploaded file named Leonard2.jpg
Profile picture of Paul
Paul from SWISCO responded:

Hello, Ken. The 15-046 is actually exactly what I would have recommended. That is the new replacement for the old Silverline brand shoe you have now.

Swisco's 15-046 Pivot Lock Shoe
Swisco's 15-046 Pivot Lock Shoe
