Pivot
Landlord from Franklin Lakes, New Jersey
Jul 14, 2026 5:57 pm
I am looking for a pivot shoe for a block-and-tackle sash. The window is a Westminster/BE 38 × 60 29WN380600HNND 13411012-1 The closest dimensions I could get of the shoe were roughly 1.5" wide by 2" tall with a channel depth of roghtly 7/16ths
1 user uploaded image
6 Replies
Bob from SWISCO
Jul 19, 2026 3:10 am
Hello there. The only way to know for sure is to remove the pivot shoe and measure its exact width and thickness. Removing it is the only way to get these measurements accurately. In the time being see our selection of pivot shoes here.
Landlord from Franklin Lakes, New Jersey
Aug 6, 2026 12:43 pm

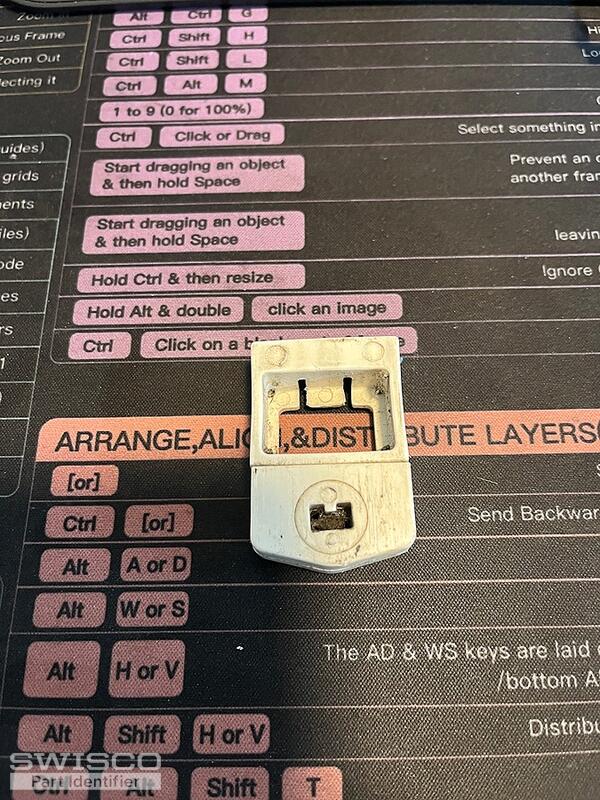

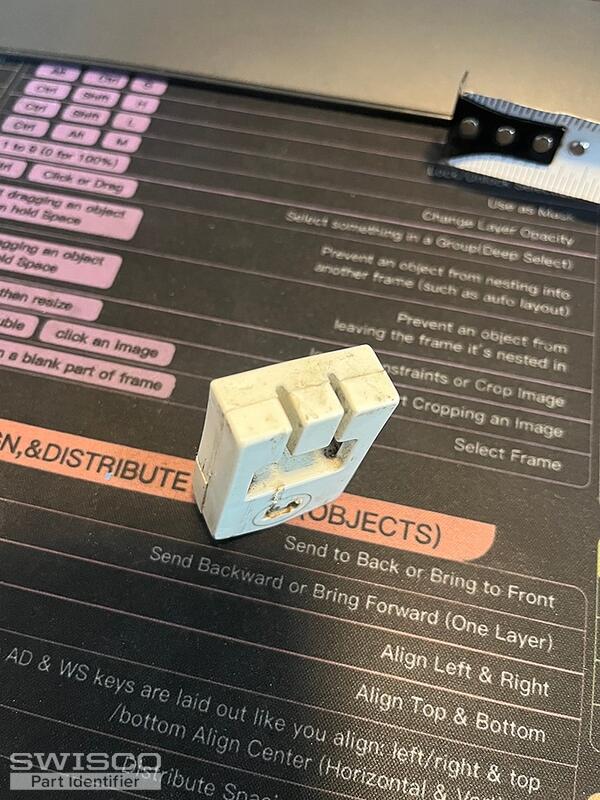

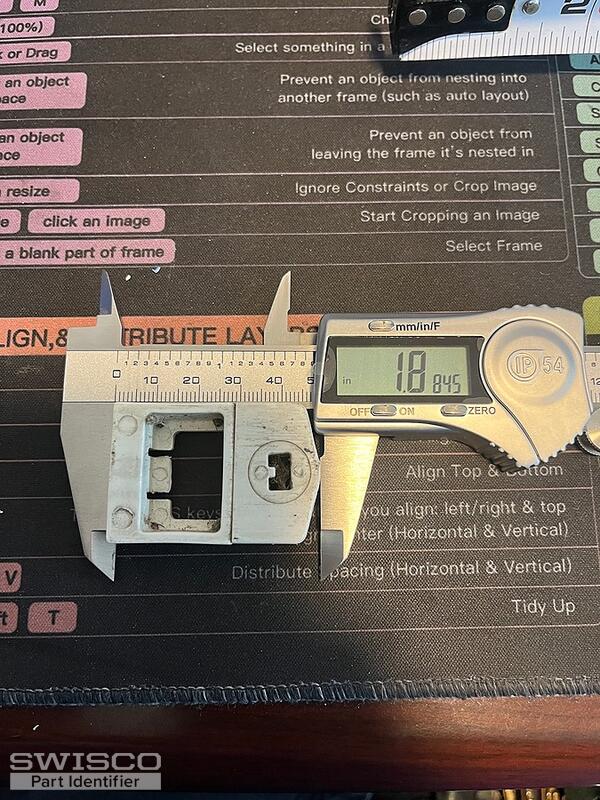

I was able to remove an intact one. Here is the measurements of all of the sides.
5 user uploaded images
Bob from SWISCO
Aug 6, 2026 4:39 pm
Great, thanks. Looks like you might have an older version of the 15-046 Pivot Shoe. It is 1/2" thick and 1-1/4" wide. See what you think.
Alternate image for 15-046
Landlord from Franklin Lakes, New Jersey
Aug 6, 2026 5:32 pm
Excellent thank you
Bob from SWISCO
Aug 6, 2026 8:19 pm
My pleasure! Let us know if you need anything else.
