Pivot Bar inquiry

A quick learner says:

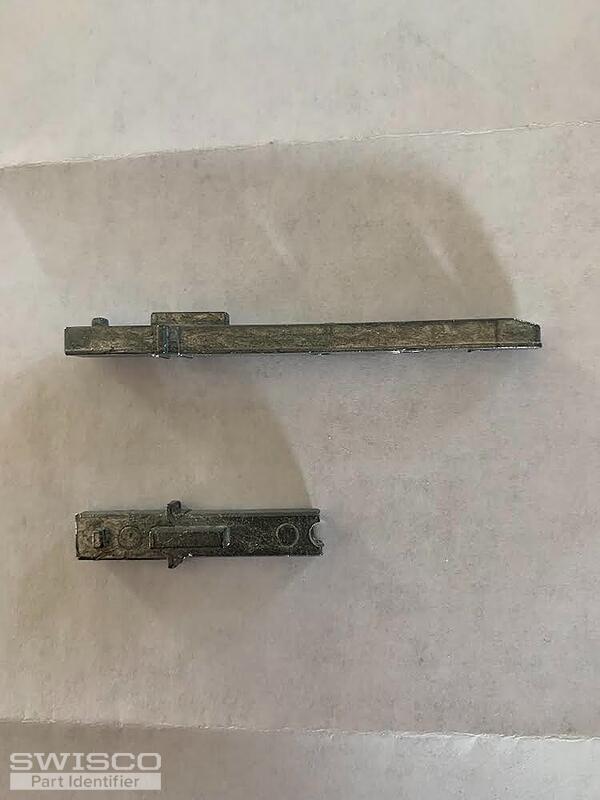

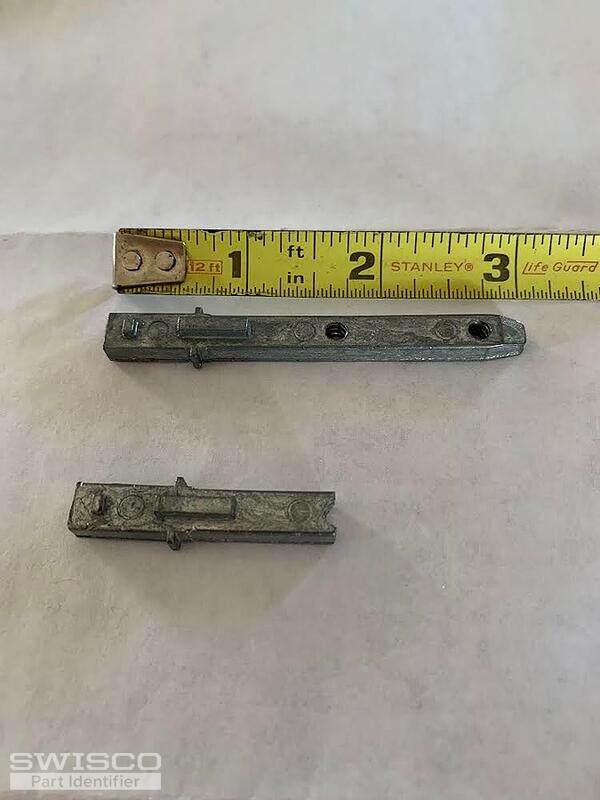

am in need of a replacement pivot bar for my Paradigm double hung window serial #W409127-1. Attached is a couple of pictures. Mine measures 1-11/16". Mine also has a couple of protrusions on the flat side.
Thumbnail of the uploaded file named IMG_0459.jpg
Thumbnail of the uploaded file named IMG_0460.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Hey there! We do not carry an exact match for the type of die-cast pivot bar you have but we have offered our steel pivot bar, part 26-089, to other customers in the past. The screw holes a fairly close to the dimensions on your original pivot bar and it should fit your coil balance shoe.

Take a look at the dimensions on the diagram below to confirm that this would be a fit for you.

Alternate image for 26-089
Alternate image for 26-089
