Pivot Bars and shoes

A quick learner from Hyde Park, NY says:
Unsure but believe these might be Anderson windows?
Plastic pivot pin broke. Would like to replace with metal pins.....and shoes.
Im guessing a side sash pin would work?
Please help obtaining correct pins and shoes. Thanks
Dean

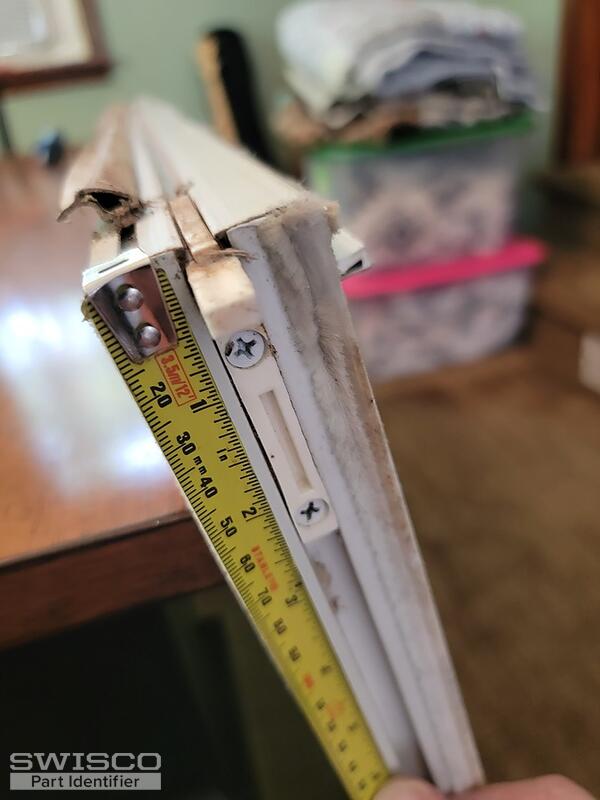

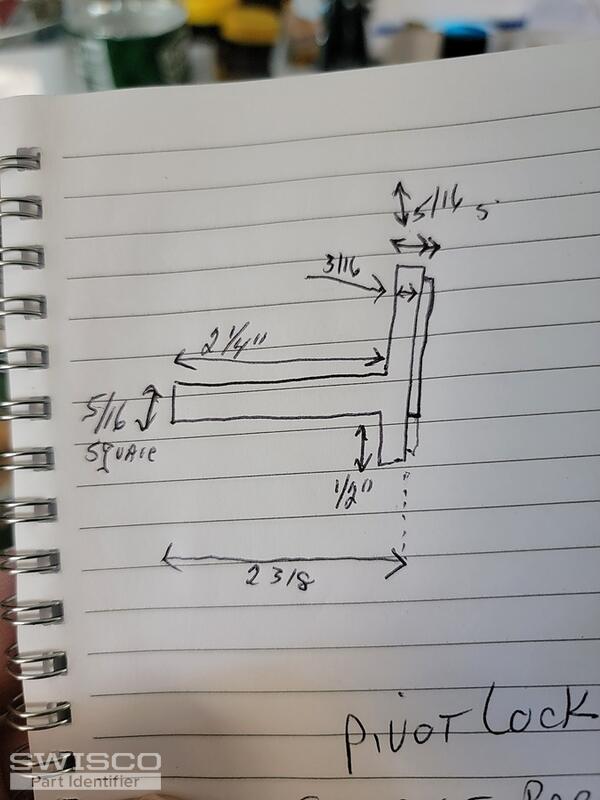

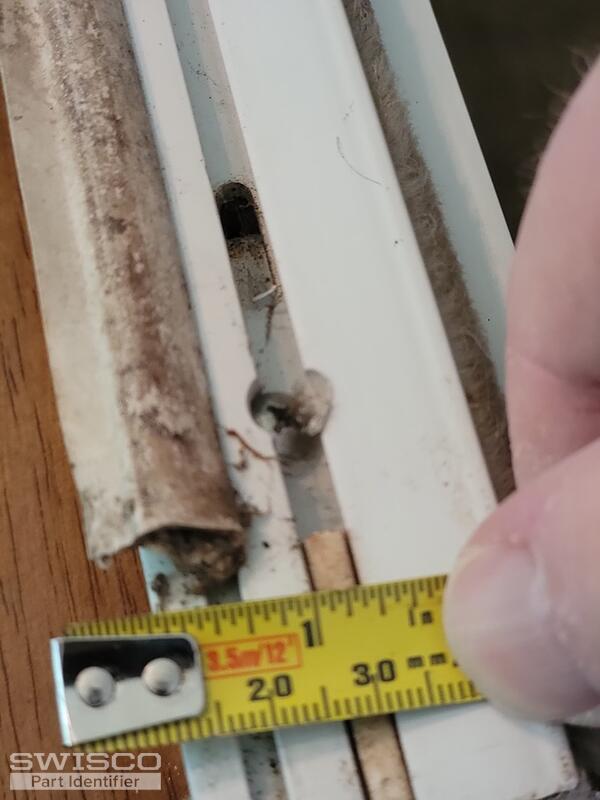

Thumbnail of the uploaded file named 20220910_113657.jpg
Thumbnail of the uploaded file named 20220910_113052.jpg
Thumbnail of the uploaded file named 20220910_112914.jpg
Thumbnail of the uploaded file named 20220910_112853.jpg
Thumbnail of the uploaded file named 20220910_112807.jpg
A quick learner from Hyde Park, NY says:

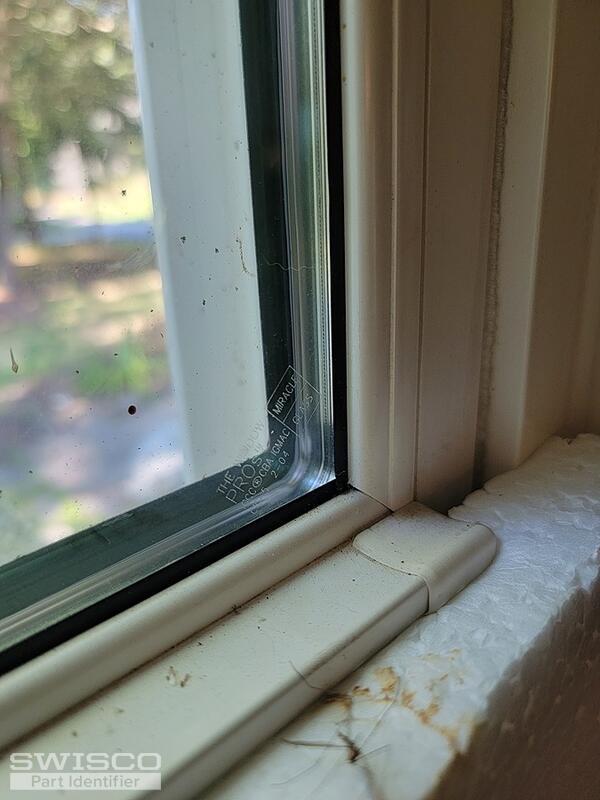

I found 1 other window with a label.

Seems to be made from... The Window Pros Miracle class

Thumbnail of the uploaded file named 20220910_115554.jpg
Thumbnail of the uploaded file named 20220910_145838.jpg
Profile picture of Tom
Tom from SWISCO responded:

I have come in contact with this pivot bar many times in the past. The only thing I can tell you with confidence is that it is no longer made and that we have no confirmed alternative.

Our 26-460 is probably the closest options available in our inventory, but it's still very different and I have been told by past customers that it simply does not work.

I am very sorry for the inconvenience. This just isn't something we can help with at this time.

A quick learner from Hyde Park, NY says:
Thx for your reply.
Question....what shoe goes with 26-460 pivot bar?
Profile picture of Tom
Tom from SWISCO responded:

We unfortunately do not sell a pivot shoe specifically designed to work with the 26-460. That is one of the points of contention brought to my attention by past customers, in fact; it just did not seem to mesh well with any of the pivot shoes that were designed to work in this window.

A quick learner from Hyde Park, NY says:
Tom...
26-460 pivot bar worked...with a little effort.
Just had to file the side edges off to make it rectangular. Other than that...it worked just fine.
Thanks.
Profile picture of Tom
Tom from SWISCO responded:

Awesome! I'm glad to hear it. This is definitely valuable information, I'll log that away for future reference. Thanks so much for sharing your fix!
