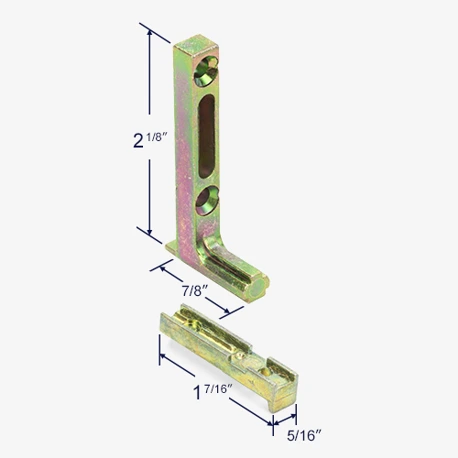

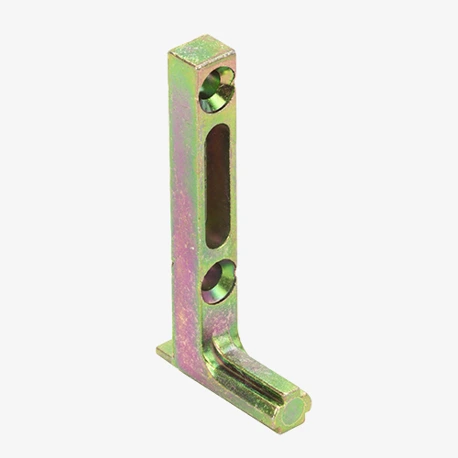

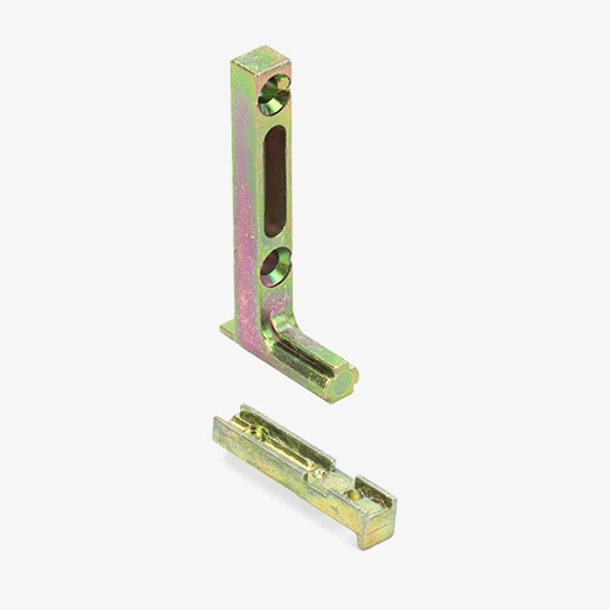

Pivot Bar Assembly

tilting window pivot manufacture unknow

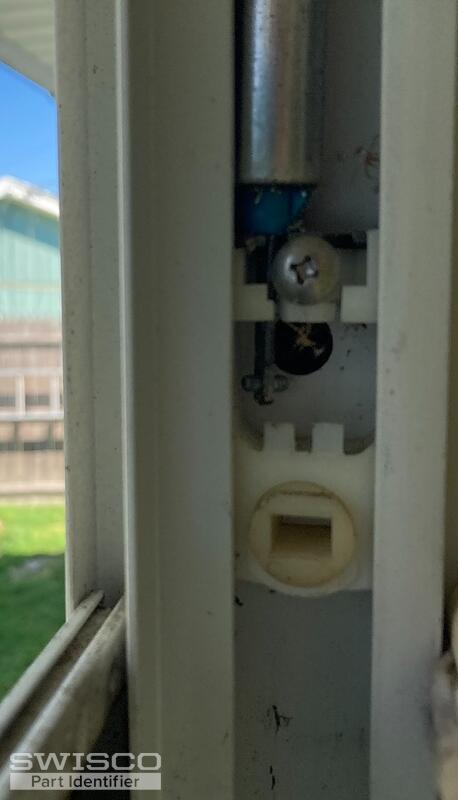

Unsure but believe these might be Anderson windows? Plastic pivot pin broke. Would like to replace with metal pins.....and shoes. Im guessing a side sash pin would work? Please help obtaining correct pins and shoes. Thanks Dean

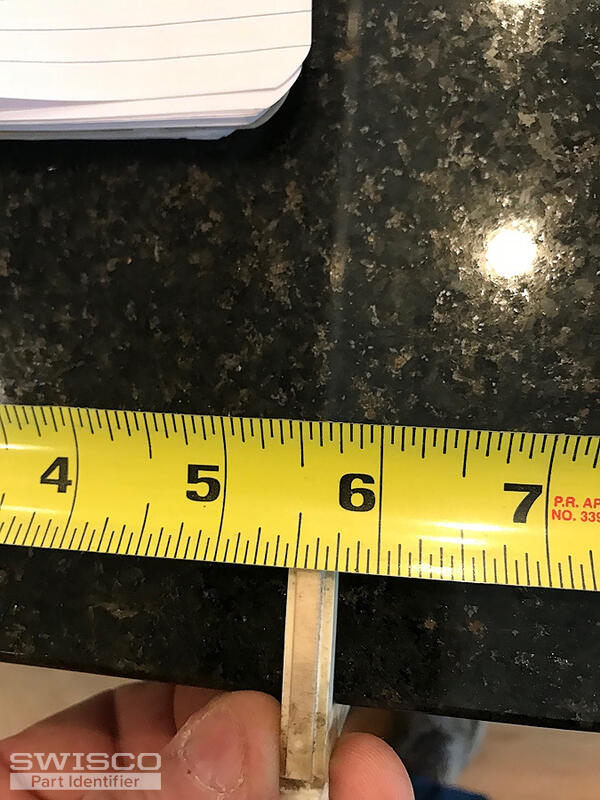

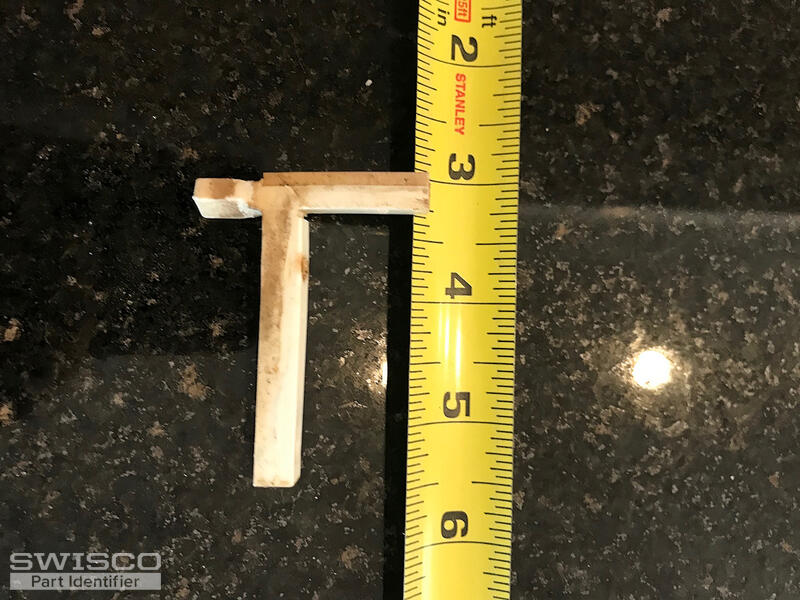

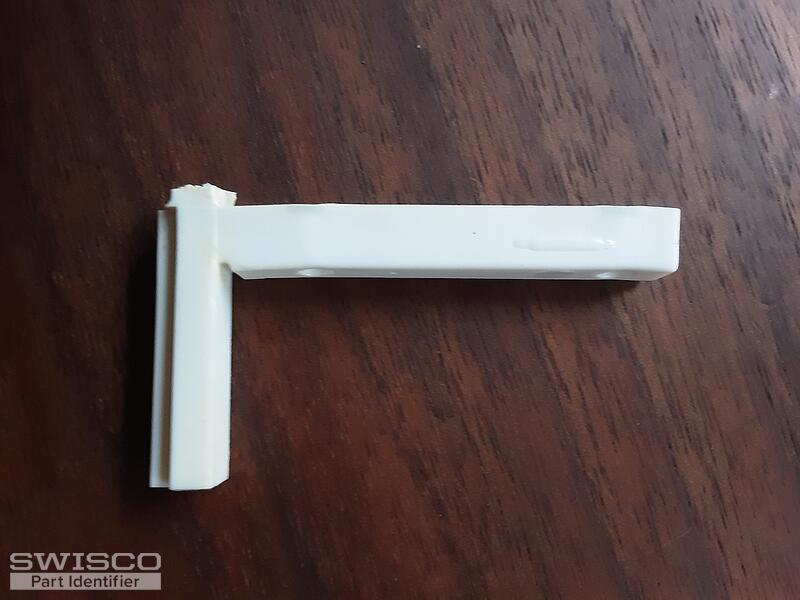

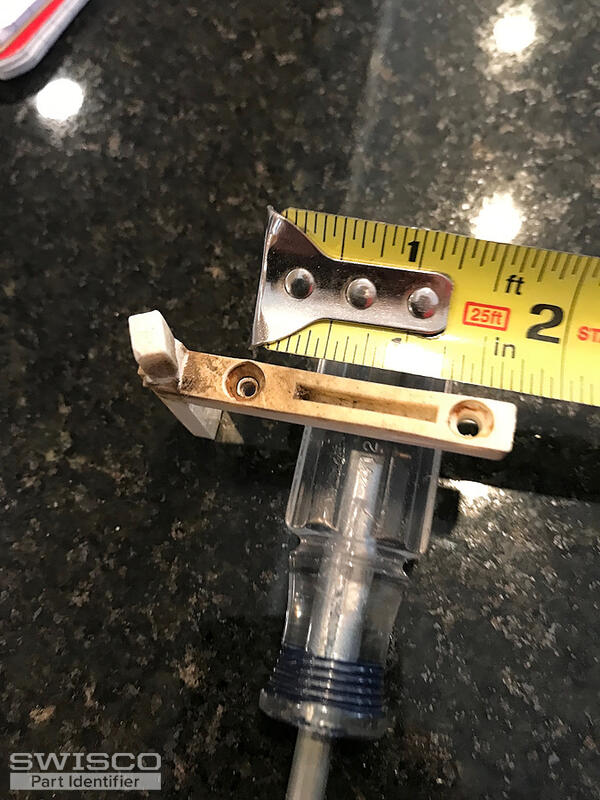

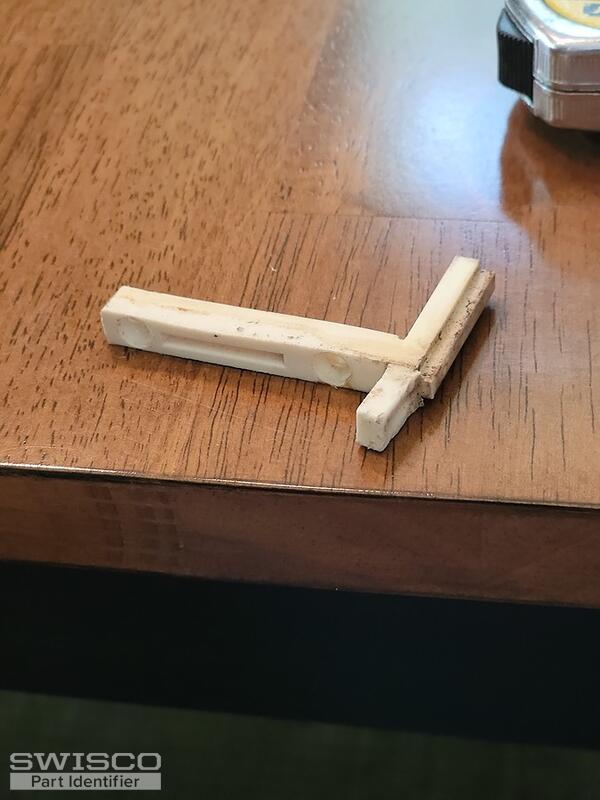

I have double hung Igmac windows installed in 1992. Some of the plastic "L" shaped pivot bars (see photos) have broken off where they go into the pivot shoe. The long arm of the bar is 2 1/2" with the screw holes 1 1/2" on center. The short arm of the bar is approx. 1 1/2". The bar is approx. 5/16" ... (cont.)

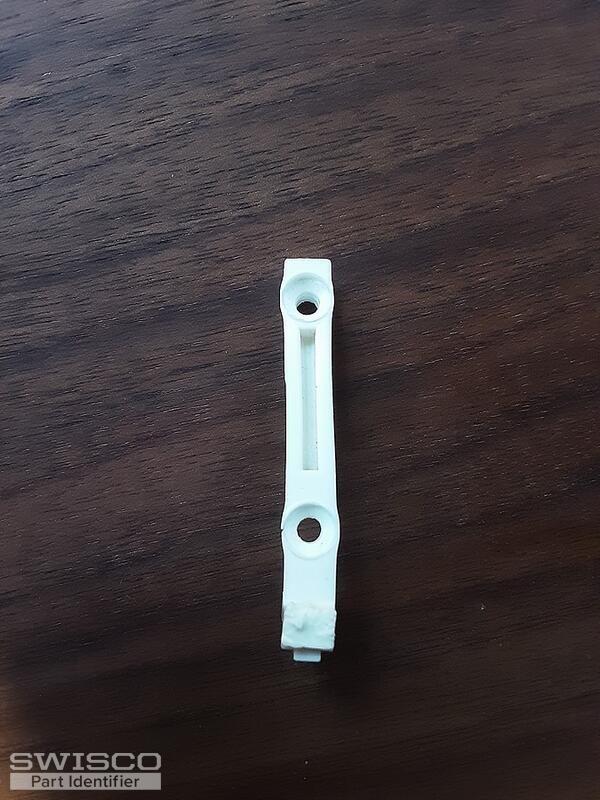

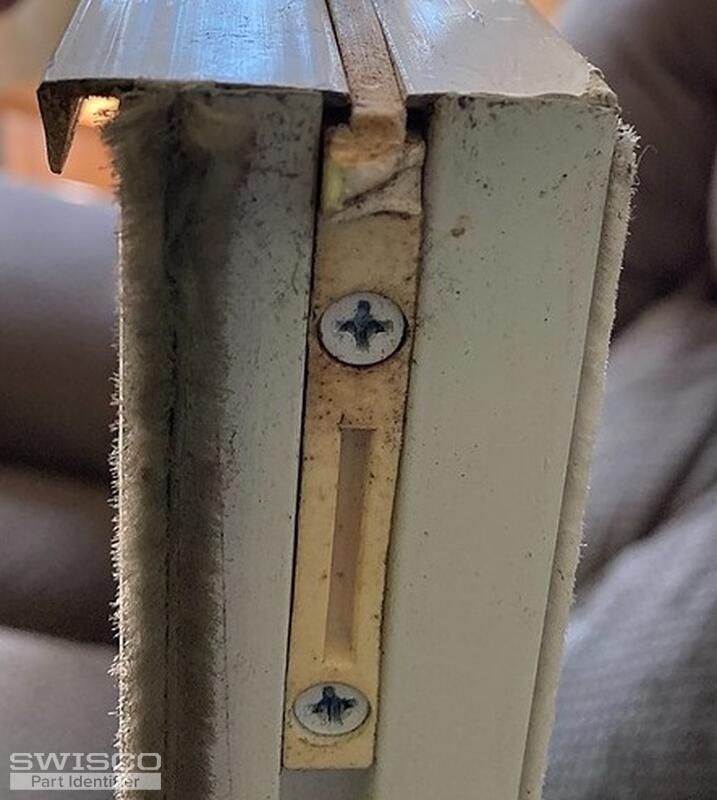

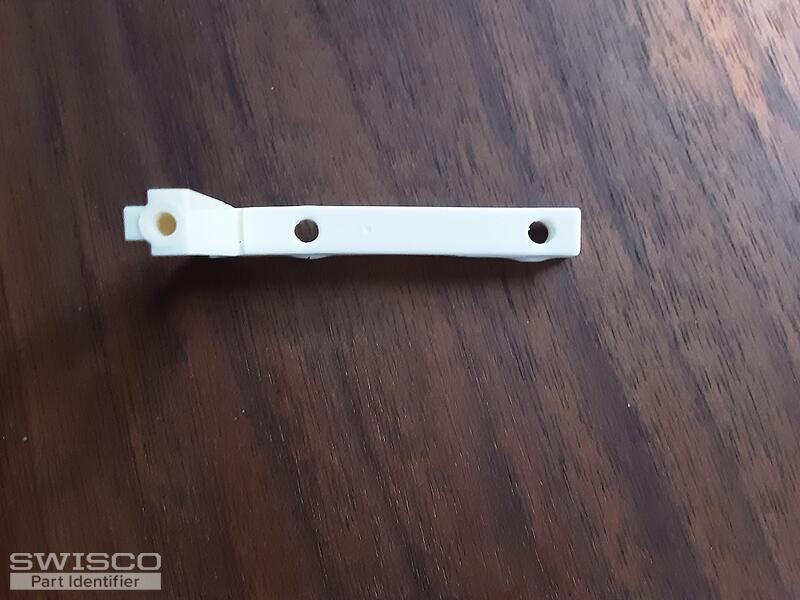

This pivot bar is from a double hung vinyl window with tilt sashes. They are side-mounted, but there is also a screw on the bottom of the sash that might also mount a replacement. The screw is 1 3/4" from the edge of the window. The pivot bar fits into grooves in the sash that are 1/4" x 1/4". I c ... (cont.)

I have checked every window in the house (they are all the same size) and no names or markings. I have 7 of these windows and 5 of them are missing at least one or both sides of this item.
