Viewing all customer Discussions for:

26-460 Pivot Bar Assembly

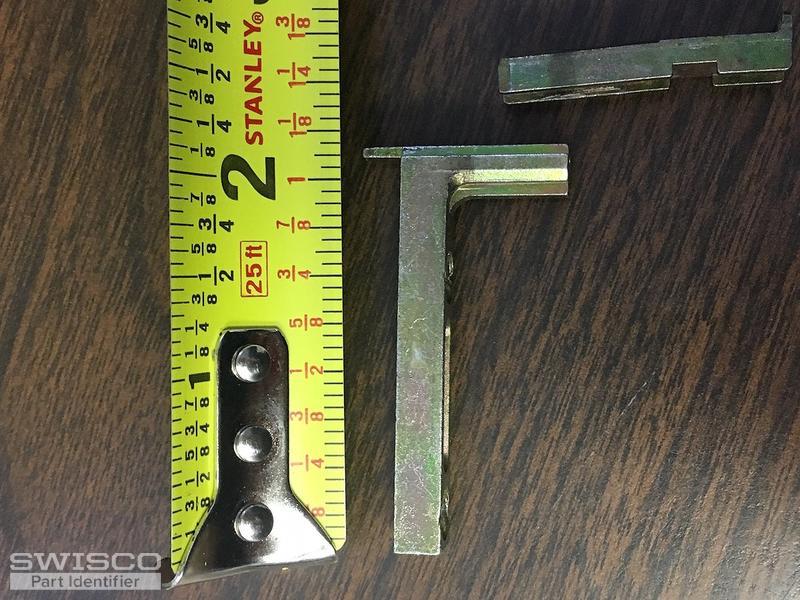

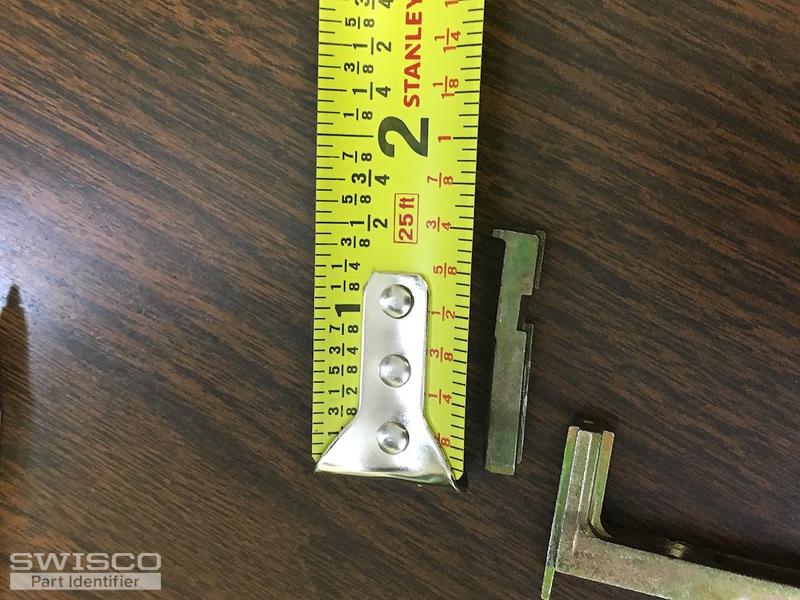

Hi,I’m looking for parts for my window. They are screwed to the bottom of the window and get attached to the latch that moves the window up and down.On my window, both of the pieces broke off. I’ve attached some pictures for your reference. Thank you for your help.

Pivot point that is attached to the window with two screws and engages into the window frame. One photo shows the engagement hole (square) within the frame and attaches to the support spring component.

tilting window pivot manufacture unknow

Unsure but believe these might be Anderson windows? Plastic pivot pin broke. Would like to replace with metal pins.....and shoes. Im guessing a side sash pin would work? Please help obtaining correct pins and shoes. Thanks Dean

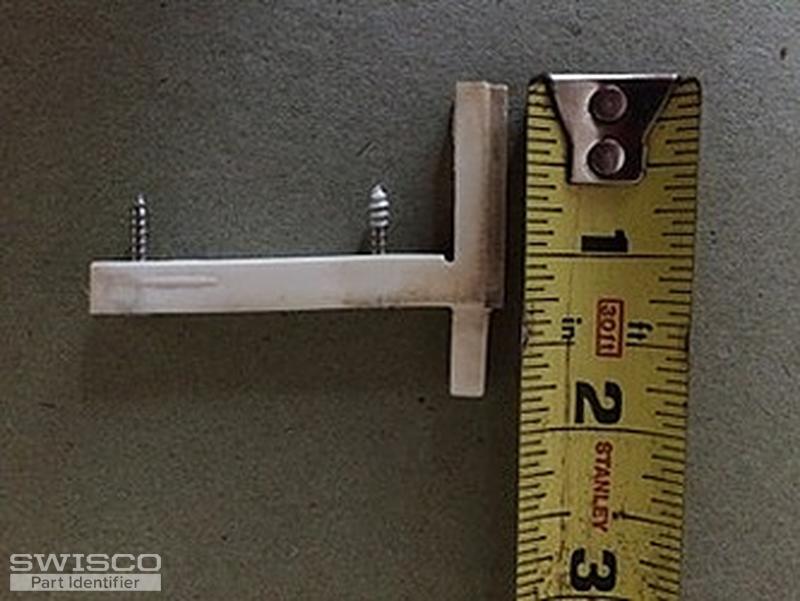

I have double hung Igmac windows installed in 1992. Some of the plastic "L" shaped pivot bars (see photos) have broken off where they go into the pivot shoe. The long arm of the bar is 2 1/2" with the screw holes 1 1/2" on center. The short arm of the bar is approx. 1 1/2". The bar is approx. 5/16" ... (cont.)

This pivot bar is from a double hung vinyl window with tilt sashes. They are side-mounted, but there is also a screw on the bottom of the sash that might also mount a replacement. The screw is 1 3/4" from the edge of the window. The pivot bar fits into grooves in the sash that are 1/4" x 1/4". I c ... (cont.)

I have checked every window in the house (they are all the same size) and no names or markings. I have 7 of these windows and 5 of them are missing at least one or both sides of this item.

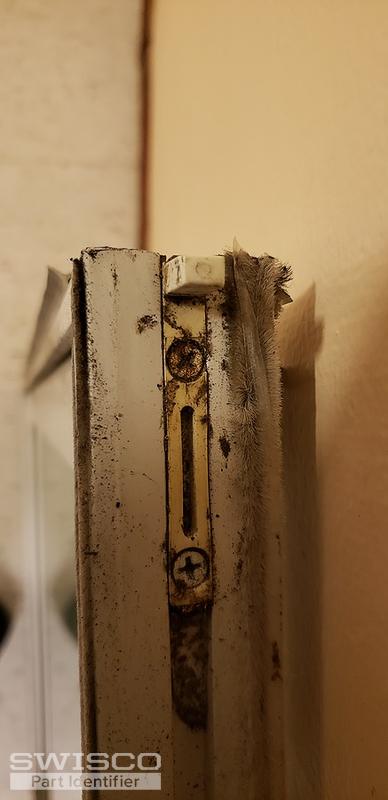

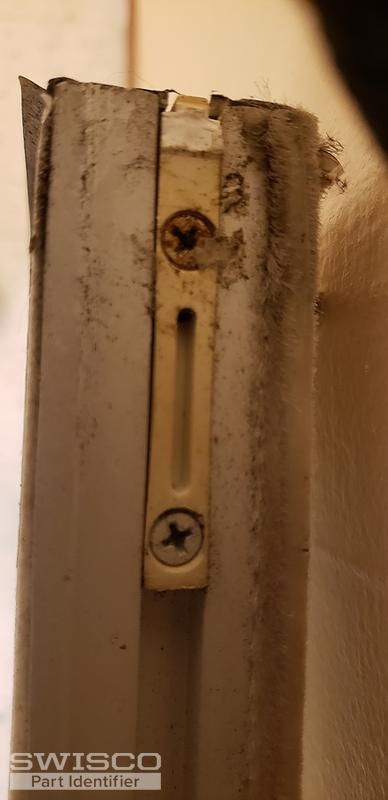

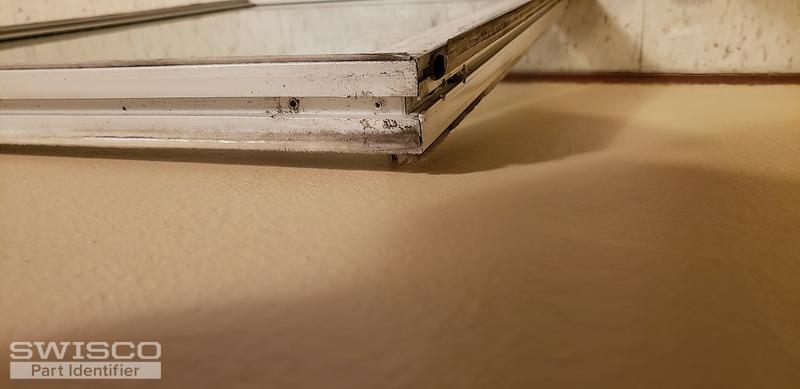

Broken Part:I am looking for a pair of Broken Part as shown in pictures. The part is screwed in window panel & locks with spiral balance through a plastic piece & goes up & down with spiral in tilt window.Please let me know the broken part details & availability with you. Spiral Bala ... (cont.)

Hi, I can't identify the manufacturer of my windows. The house was build in 1966 and they're either original or were replaced before 1995 when we bought it. The pins attach on the side with the screw holes 1 1/2 inches apart. It's L-shaped with part sliding under the bottom of the window. Thanks in ... (cont.)

I am looking for replacement pivot pins for the windows...several broken pins. One is still in the Pivot Lock Shoe...probably have to go back and take that out to make sure I order the right PLS for the spiral balance rod. I am a Professional Handyman...:-). With so many guys doing hack work...your ... (cont.)

Could you please tell me the dimensions of the pivot point(nose) on this bar? That is the vital information I require.

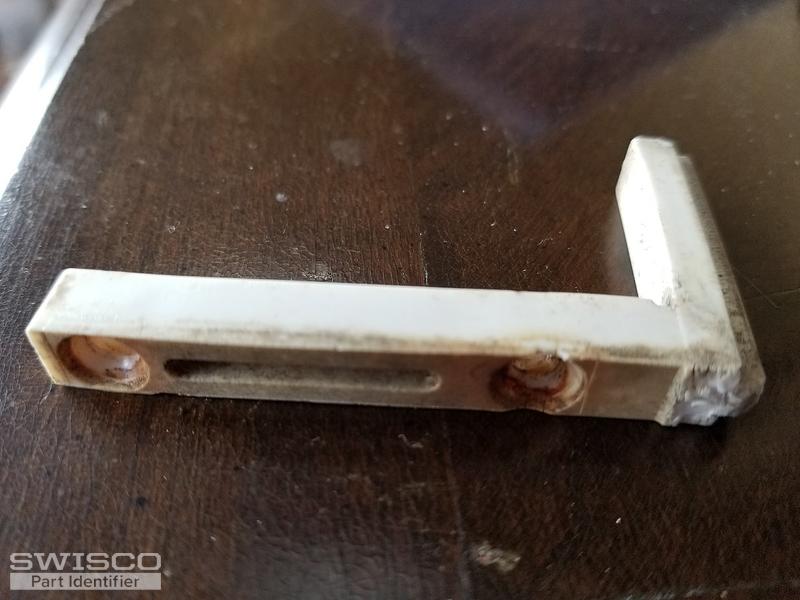

This pivot bar was on the right side of the lower sash of a vinyl window. The left side pivot bar also is broken. On the bottom of the pivot bar that is shown is a white rectangular section. That is where the foot was located which snapped off.

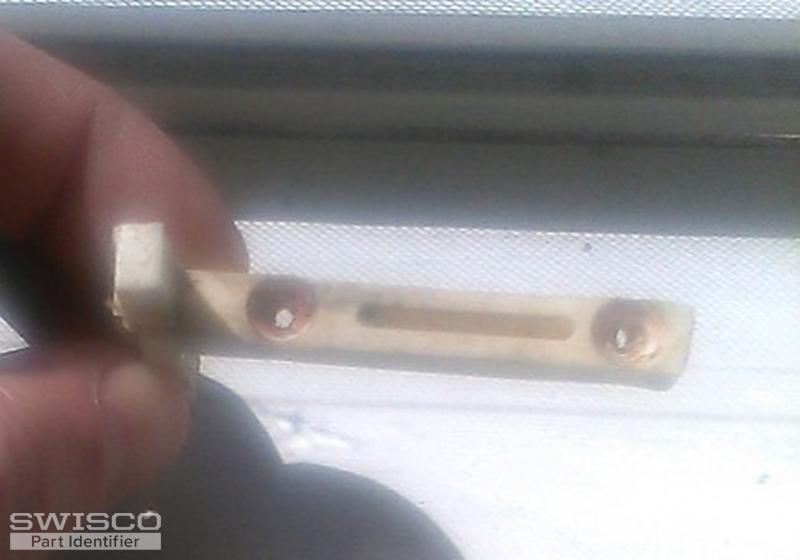

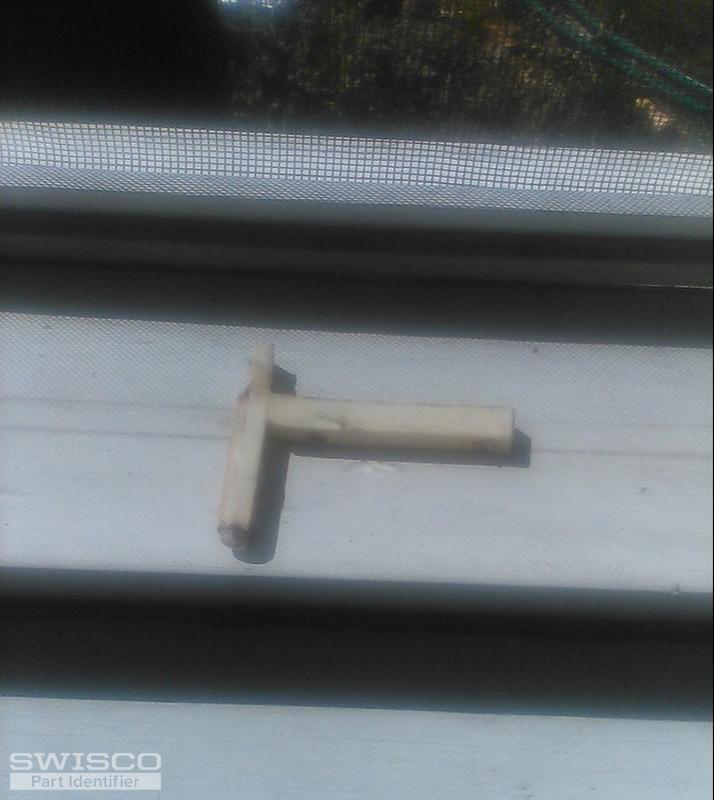

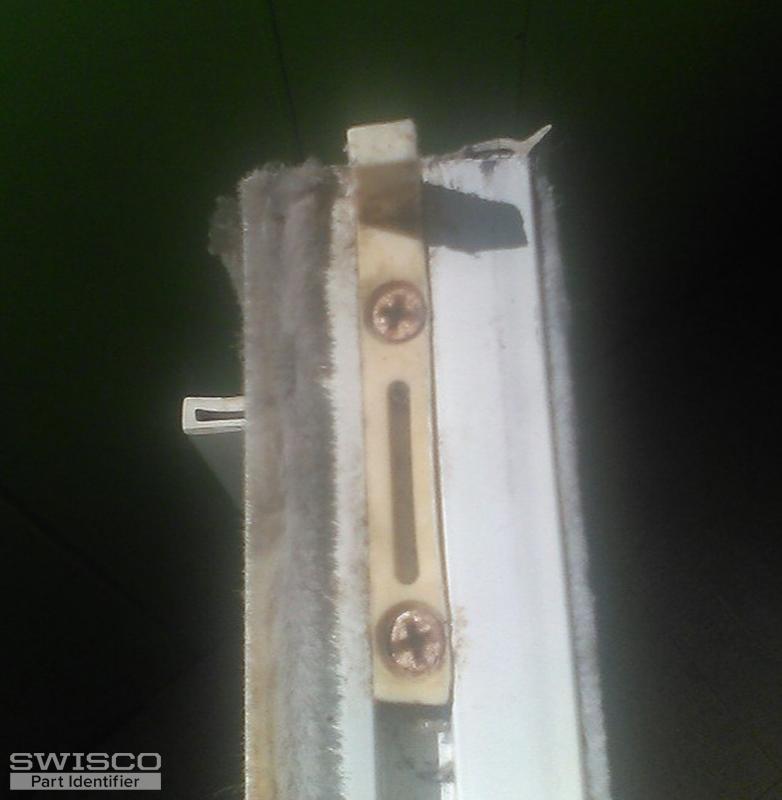

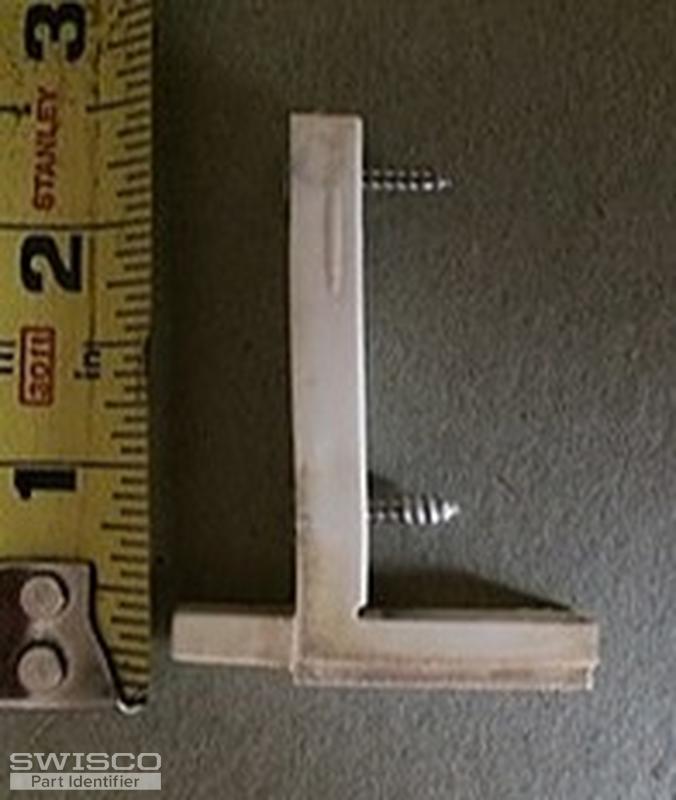

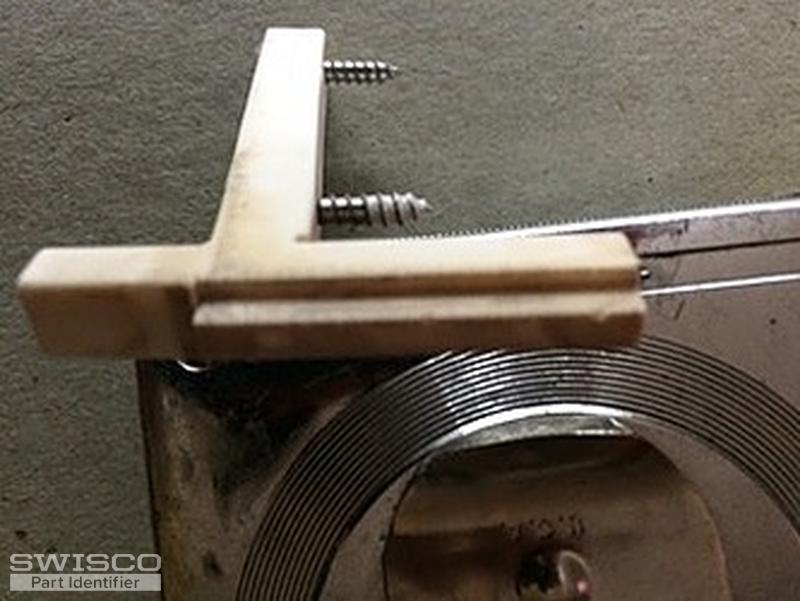

I need to replace several parts on my older vinyl tilt windows. I can find all the parts needed on your site except for the pivot bar. Attached are 3 pictures of the pivot bar and I'm wondering if you sell this? I have included the third picture to show the ridged part of the pivot bar the fits into ... (cont.)

I'm looking for double hung window sash pivot bar

Having trouble finding a replacement sash pivot. Looked through the available parts and didn't see it. Dimentions: Distance between screw holes 1 1/2". Total length of the appendage containing the screw holes 2 1/8". Length of the (other perpendicular) appendage with the pivot pin on the end is ... (cont.)

I need the measurements of product number 26-460

Looking for a two piece pivot bar for a Acan Window
