Pivot Lock Shoe

A handy person from NYS says:
Hello,

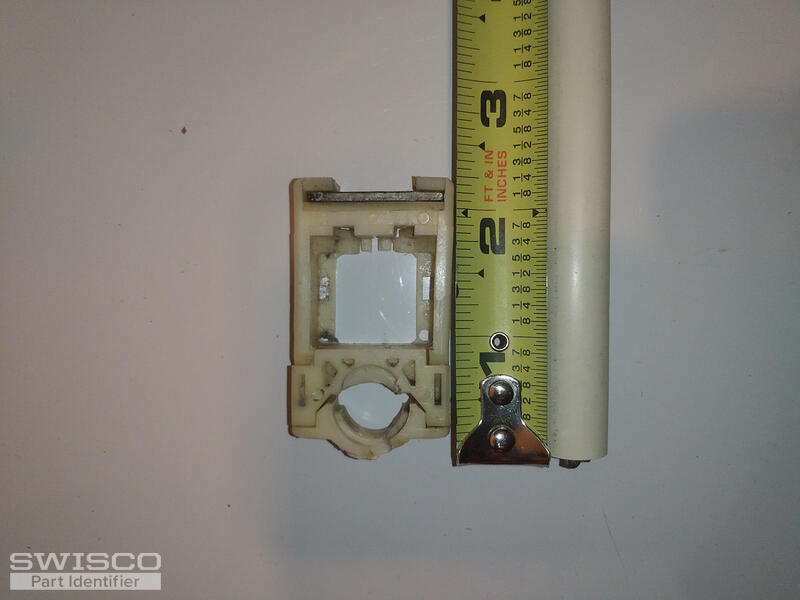

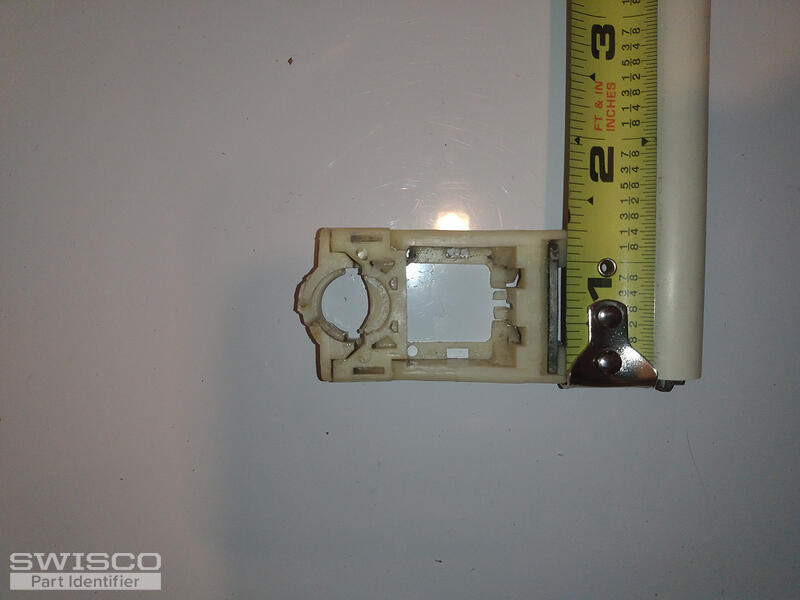

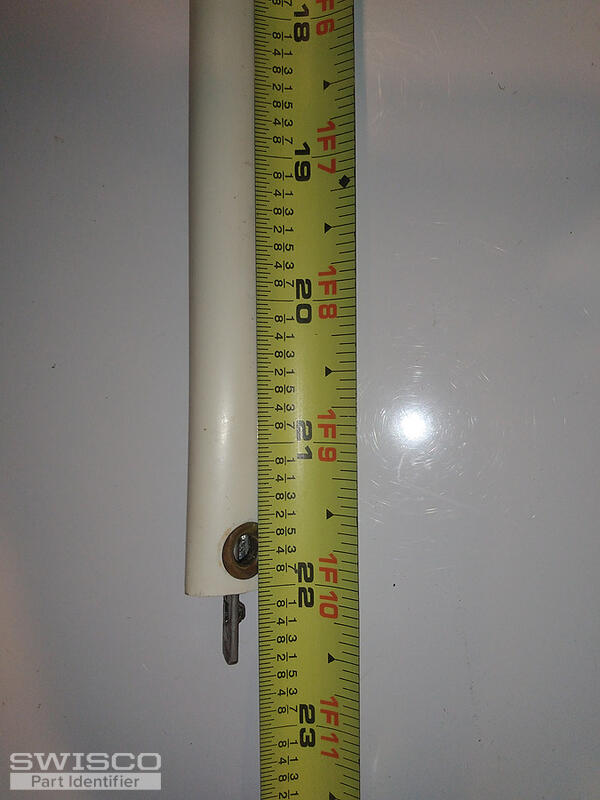

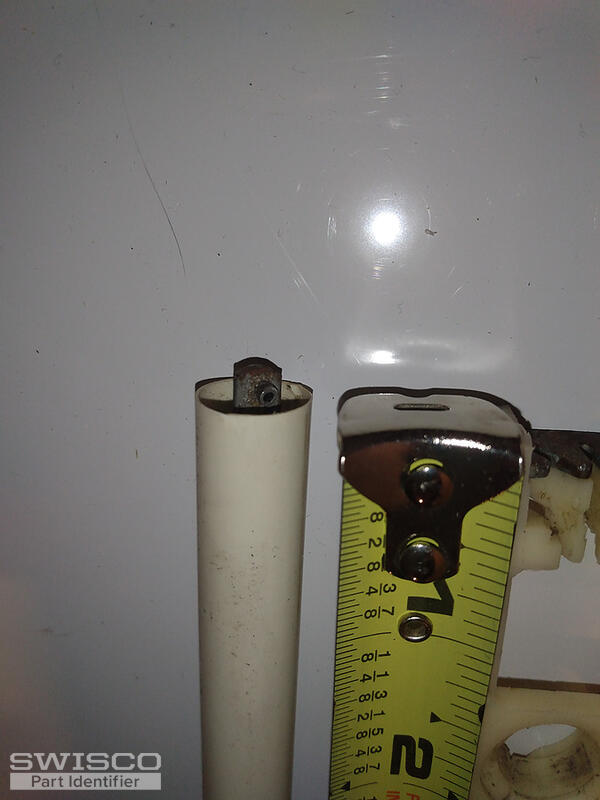

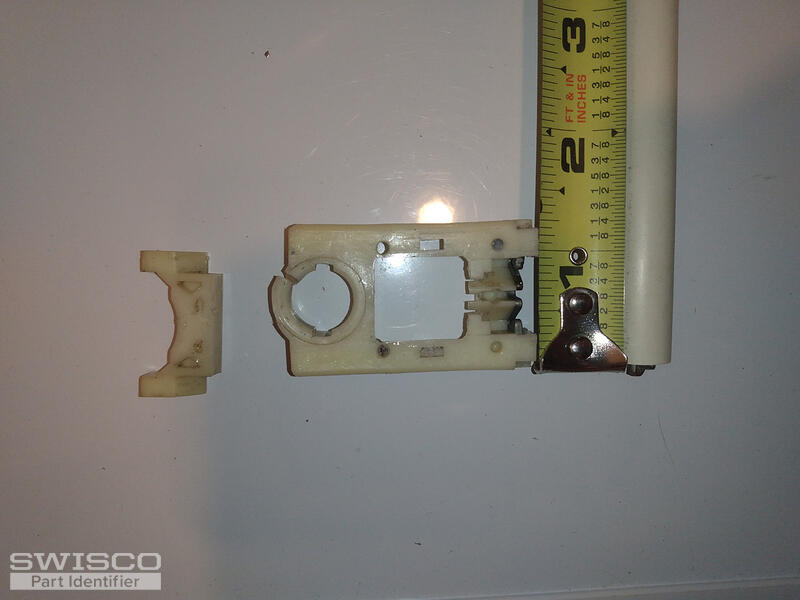

I'm looking to replace spiral tilt window balance - approximate 22 inches long, and pivot lock shoe - app. 2in 1/4 by 1in 1/4.
Please help me to identify parts.

Thank you

Simon.
Thumbnail of the uploaded file named IMG_20210711_162503.jpg
Thumbnail of the uploaded file named IMG_20210711_162515.jpg
Thumbnail of the uploaded file named IMG_20210711_162532.jpg
Thumbnail of the uploaded file named IMG_20210711_162547.jpg
Thumbnail of the uploaded file named IMG_20210711_162607.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for posting, Simon. Your balance looks like it could be a match for our Series 600 , but you should check to make sure that the diameter is the same at 9/16".

As for the shoe, can you tell me its thickness? The width is important but height doesn't matter so much. Thickness will help me find you something that will fit in the track without being too tight or too lose.

A handy person from NYS says:

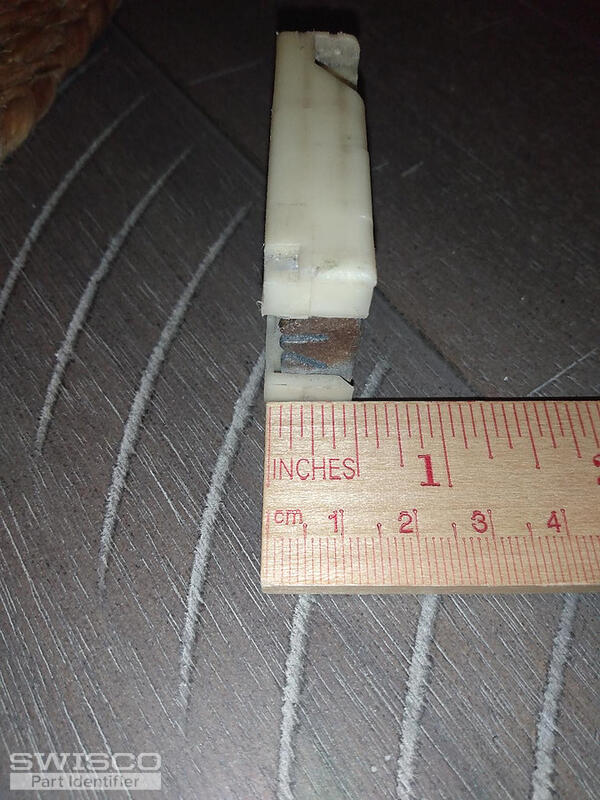

Hey Tom, it is 1/2 inch thick.

Thank You
Simon
Thumbnail of the uploaded file named 05.jpg
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thank you! I recommend our 15-046 , then. This should be fully compatible with your existing hardware and is the same size as the original.

Let me know if you had any questions.

A handy person from NYS says:
Thanks Tom, that's all I need.
