Pivot Lock Shoes

Question

Using the attached photo can you surmise which PIVOT LOCK SHOES I need? If not I can pull the assembly out and dimension the parts. Just a bit of a drive. I'm a pro-handyman/product designer helping my sister with two windows in her condo in a very large condo community in Grayslake IL.

I have designed a lot of products and instruction sheets and use photos to tell stories in the lighting industry. Your web site, the still photos, the graphics, the organization of the information, and the videos are all the highest quality I have ever encountered on the internet. 35 years ago I rebuilt a lot of wood double-hung windows...sash chain and weights. When I looked at my sister's problem I clutched. Your site popped up immediately on Google and your drawings and videos made me an instant expert in a new field ! Thanks. Peter

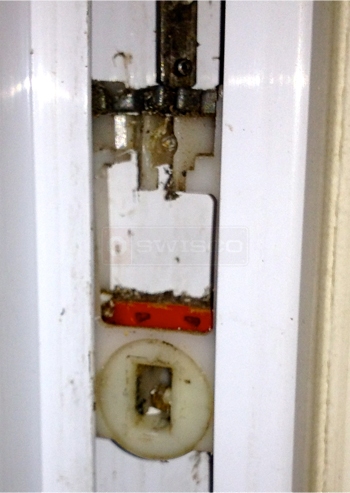

A customer submitted photo of a pivot shoe.

Paul · Accepted Answer

Good afternoon, Peter, thank you for your kind praise. We here at SWISCO.com pride ourselves on our clean and user-friendly site, and we strive to make every visiting customer a potential Do-It-Yourselfer! It makes us very happy to hear that you found our guides and information so helpful, and everyone here thanks you!

Now, as for your pivot shoe, please take a look at our 15-046 and 15-121, which I believe may match what you have. However, you would have to compare them to the dimensions of your own hardware to be absolutely certain.
