Pivot Shoe

A home owner from Lyman, SC says:

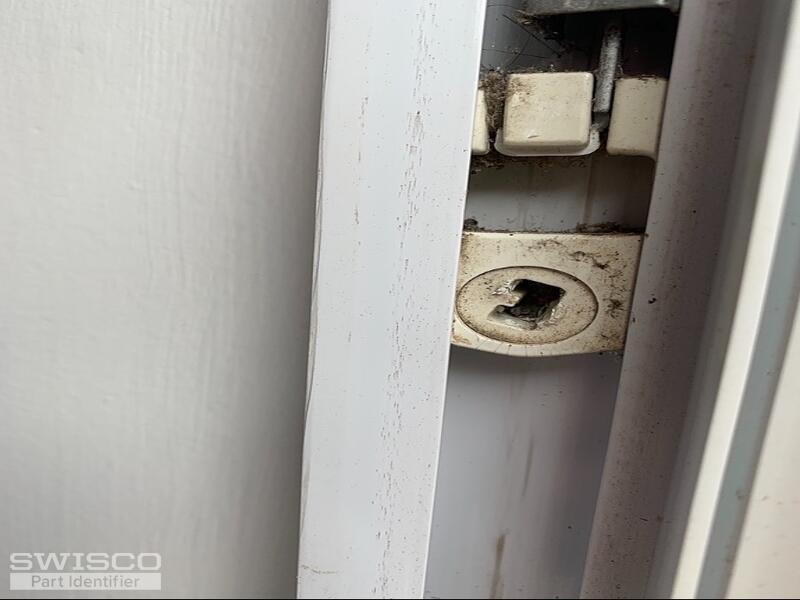

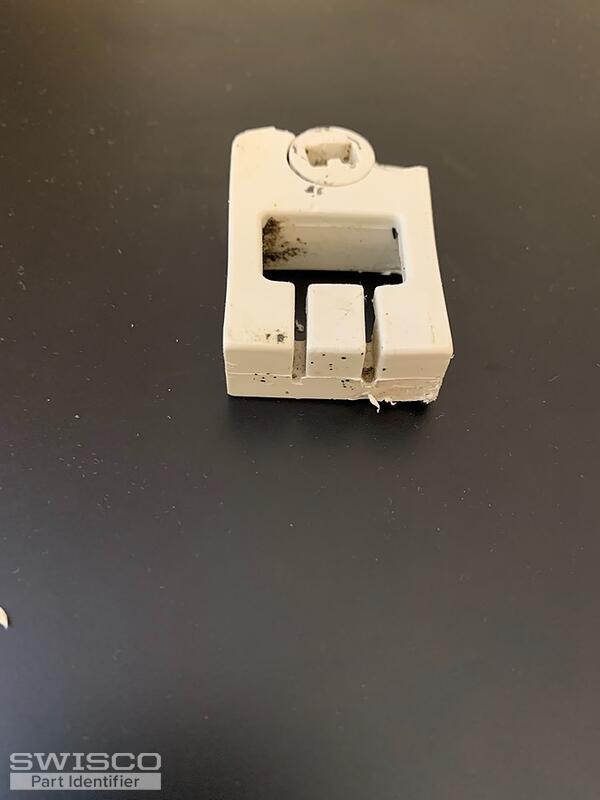

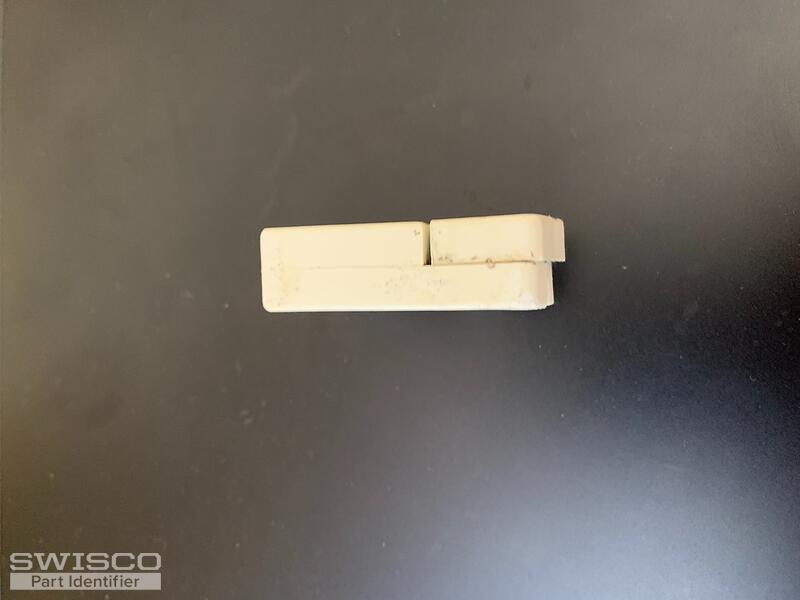

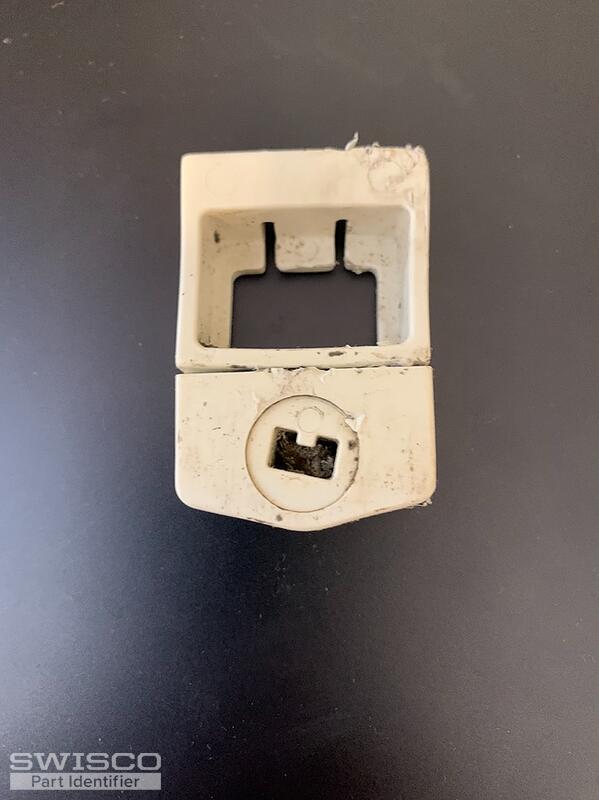

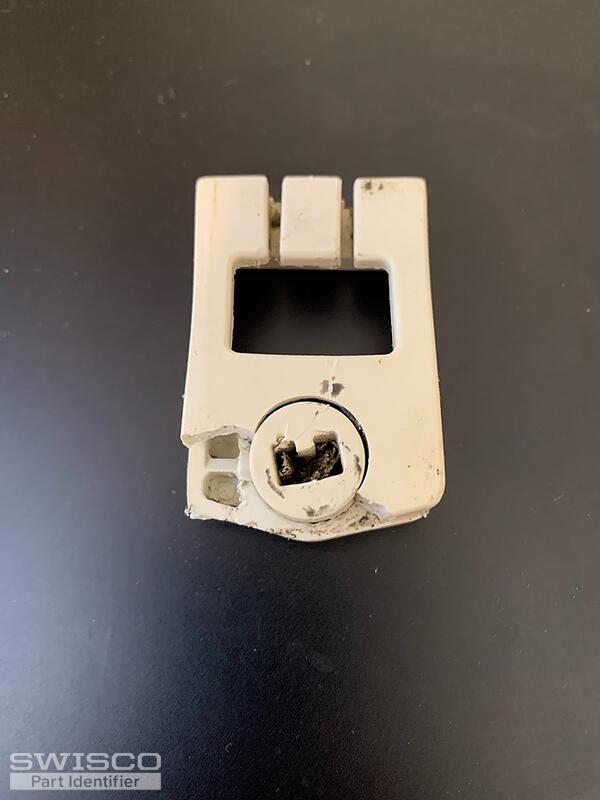

I searched the internet and can't find these pivot shoe. They are all plastic. Windows were installed in 2001 when the house was built.
Thumbnail of the uploaded file named 6309EB22-A93E-49F7-B8BD-B0A994C4419F.jpeg
Thumbnail of the uploaded file named 99BF290C-C4A3-4079-BC57-E11FA55912F6.jpeg
Thumbnail of the uploaded file named 43E3C73A-8867-4ABC-A95A-D78045957F86.jpeg
Thumbnail of the uploaded file named D5A67AED-9B27-4249-BBE6-9565A7244A8A.jpeg
Thumbnail of the uploaded file named A4B68C85-E6BA-4F39-B0D1-555B127D3E22.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Can you tell me the width and thickness of this pivot shoe? That would help narrow down your options. Many thanks.

A home owner from Lyman, SC says:
Width is 3 centimetres
Thickness is 12 millimetres

Length is 1-7/8 inches
Profile picture of Bob
Bob from SWISCO responded:

Thanks for the varied measurements. I did a little digging--this exact pivot shoe is no longer made, but in the past we've determined our 15-046 is the best available replacement. Compare the dimensions to confirm.
