Pivot Shoe

A handy person from North Carolina says:
I need to replace some Pivot Shoes (see picture)on vinyl windows manufactured by Atrium in 2003. I will also be replacing Pivot Pins (see picture) which I have identified in the Swisco catalog. The balance the Pivot Shoe will attach to is shown in one of the pictures as well as the opening in the sash. I need help identifying a replacement Pivot Shoe in your catalog that will work with the Pivot Pin shown.

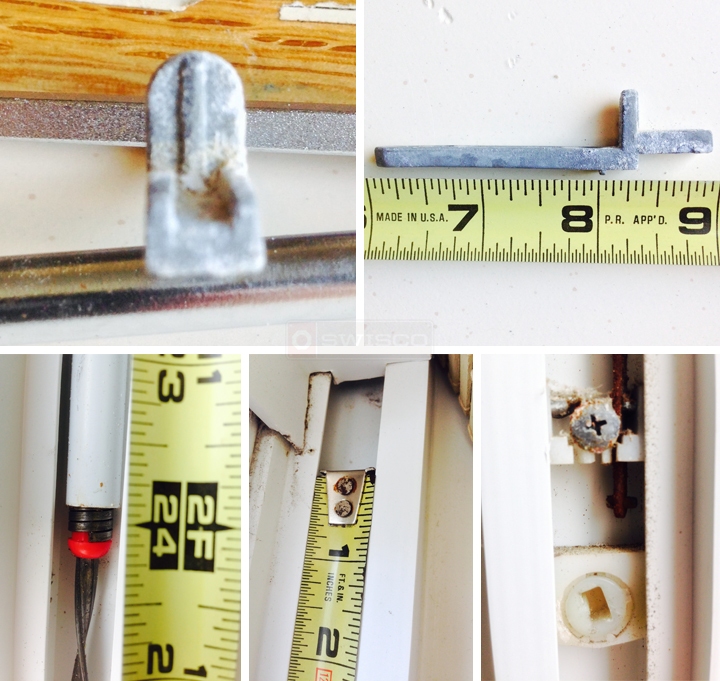

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting. I think you should look at our 26-403 pivot bar, 15-046 pivot shoe, and Series 600 spiral balance. Carefully compare this hardware to your own and let me know how they match.
