Pivot Shoe ID

A quick learner from Maryland says:
May 20, 2020
These are pivot shoes for 23-25 lb lower sashes, 32'' wide, 37.25'' high. The red-tip spiral balance tube is 37'' long.
Thumbnail of the uploaded file named Width:front.jpeg
Thumbnail of the uploaded file named Depth.jpeg
Thumbnail of the uploaded file named Width2.jpeg

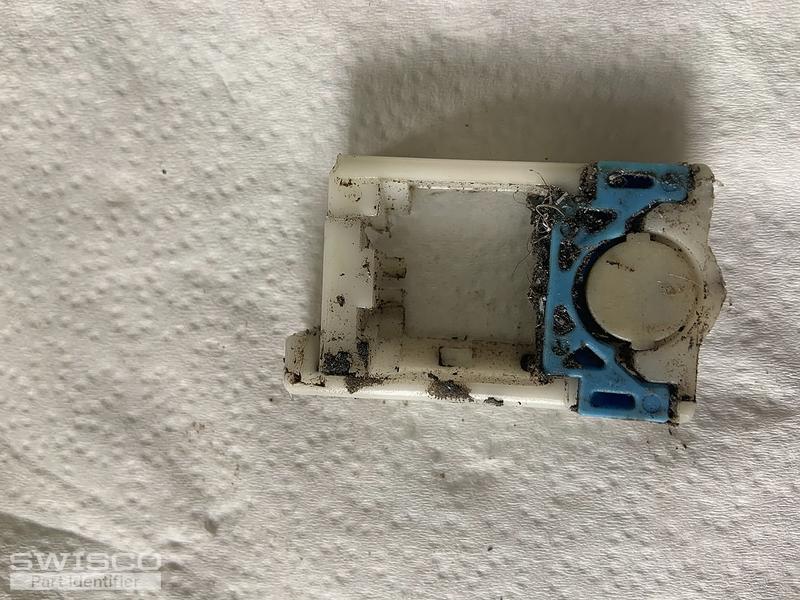

Thumbnail of the uploaded file named Back.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 22, 2020

I'm afraid I can't make out what your pivot shoe's thickness is from this photo. Can you confirm?
A quick learner from Maryland says:
May 22, 2020
So sorry! I forgot to include the measurements!

Thickness is about 13mm
Width is about 32mm

Profile picture of Tom
Tom from SWISCO responded:
May 22, 2020

Thank you. With those dimensions in mind, I recommend the 15-046 pivot shoe. Look it over and let me know what you think.
A quick learner from Maryland says:
May 22, 2020
I have lighter sashes in other windows. If the dimensions of those shoes match the 15-046, will the 15-046 work for a lighter sash?
Profile picture of Bob
Bob from SWISCO responded:
May 25, 2020

If the dimensions and appearance match, then yes, the 15-046 would still be what you need for these lighter window sashes. The pivot shoes themselves aren't really too dependent on the weight of the window sash; that places much more into the identity of the window balances that connect to these shoes.
