Pivot Shoe Replacement

Question

Hello,

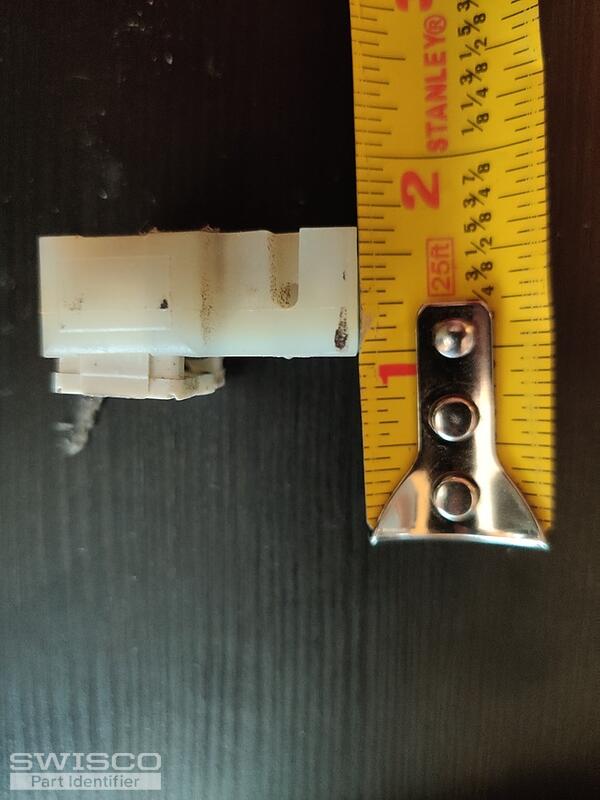

looking for help identifying a replacement shoe for this component in the image

it tapers in at the top to permit a coil system to attach and fit into the window frame.

Dimensions

height ~ 1 3/8 inch
width bottom ~ 1 1/4 inch
width top (before taper) ~ 1 1/8 inch
length (front to back) ~ 5/8 inch

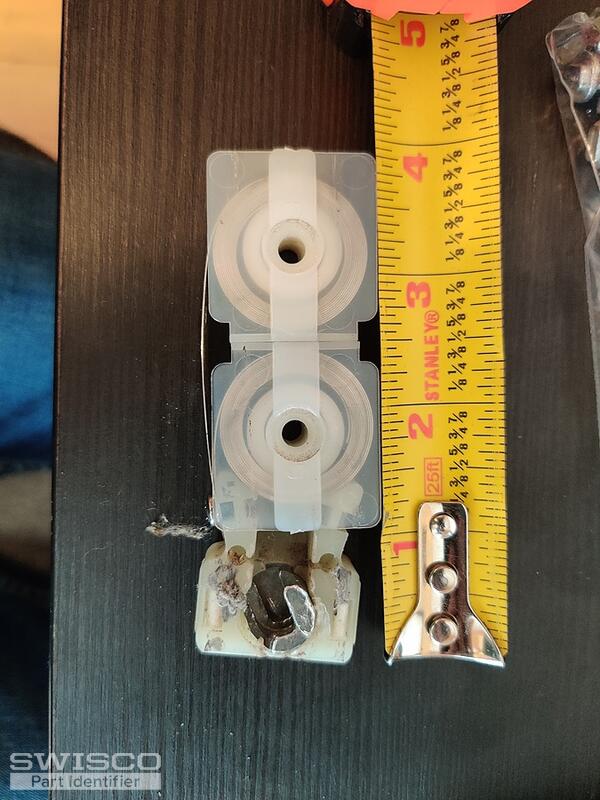

The assembly with the metal bands is shown in the attached images as well

Bob · Accepted Answer

Hello there. This exact pivot shoe is no longer made, but you should be able to replace it with our 15-177. This shoe with the same kinds of coil balances (our Series 152) and should have the same dimensons, though your reported thickness is slightly differenct. Please double-check, and let me know if you think this pivot shoe could work for you.

Alternate image for 15-177
