Pivot Shoe for Larmco window

A home owner from Columbus, OH says:
September 17, 2014
Hello,

I think the measurement on this is 2 high x 1.25 wide by .5 deep. It looks most like the 15-046 but as you can see the center is blue.

Do you know what pivot this is? I already bought some 15-154 but now see that my pivot does not have the blue part recessed.

Thank you,
Will

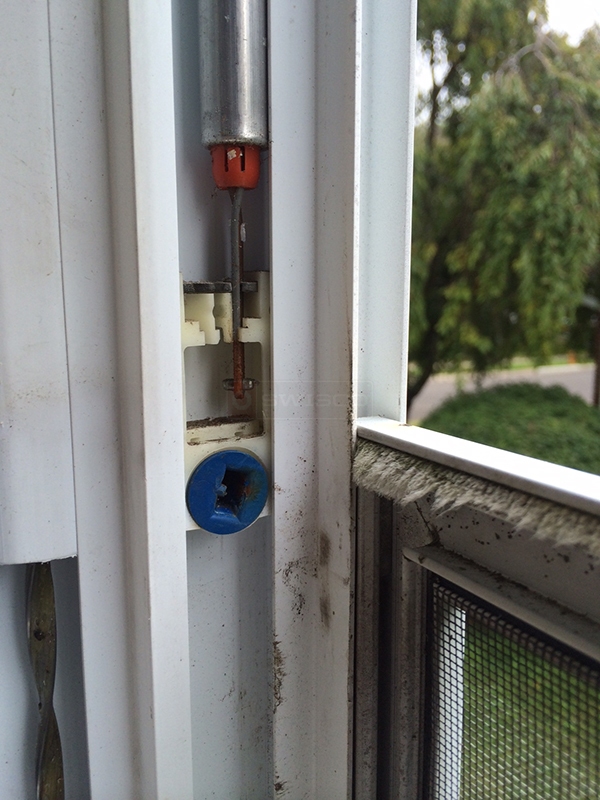

User submitted a photo of a pivot shoe.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
September 17, 2014
If all the dimensions match, then I think our 15-046 would be a good choice. The color of the cam doesn't mean much, it's just that different manufacturers use their own color codes.
A home owner from Columbus, OH says:
September 17, 2014
I took another look tonight and think it is really 2 1/8 x 1 1/4 x 9/16.

So would that be a 15-118?

Will
Profile picture of Tom
Tom from SWISCO responded:
September 18, 2014
Well, I'm not sure, that would make a difference. Are you measuring the shoe while it's still in the window? You may not get an accurate measurement that way. You should take it out before you measure it just to be 100% sure what the dimensions are.
A home owner from Columbus, OH says:
September 18, 2014
Hmmm. My Larmco window does not have a cutout to remove the Pivot Shoe to measure it. Are there instruction on how to make a cutout?

Will
Profile picture of Paul
Paul from SWISCO responded:
September 18, 2014
If your window does not have cut-outs already, you could use jamb spreaders like our 75-069. See the video below for instructions how. Failing that, you will have to try to carefully make a cut out yourself. If this shoe is for the top sash, make the cutout at the bottom of the jamb. If you also need one for the bottom sash, do it at the top.
