Pivot Shoe for Tilt Window

Home Owner from Baltimore Maryland
I am looking for all four pivot shoes.

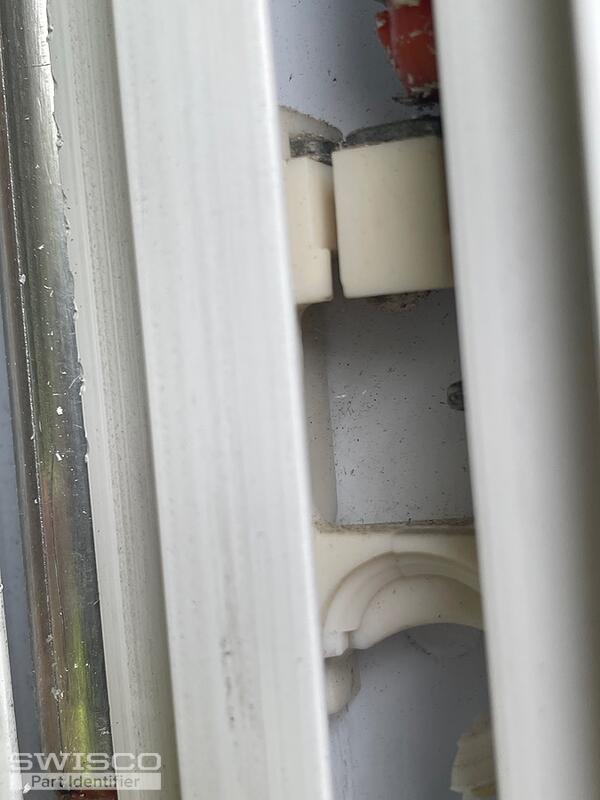

5 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we would need to see photos of an undamaged pivot shoe fully removed from the window. We'll also need you to write out the exact width and thickness, which is difficult to measure with the part still installed. See the video below to help you through the process. Thank you!

Home Owner from Baltimore Maryland

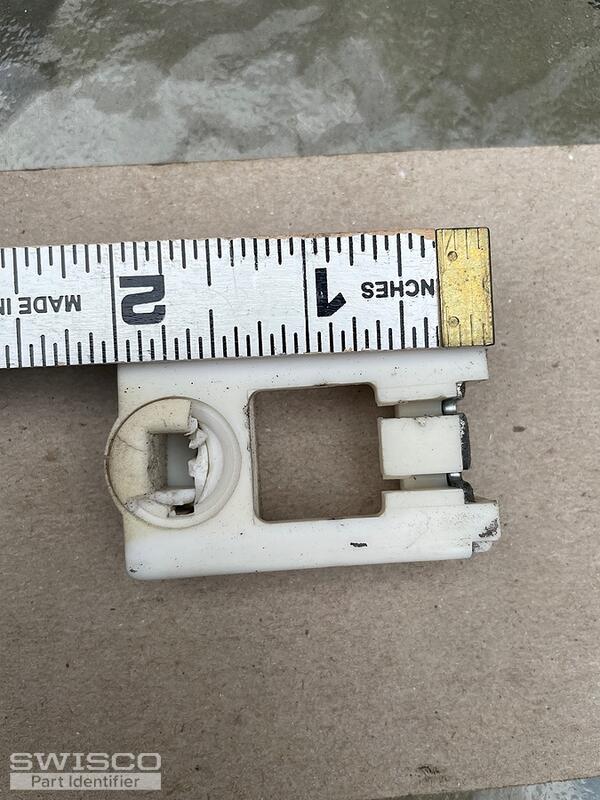

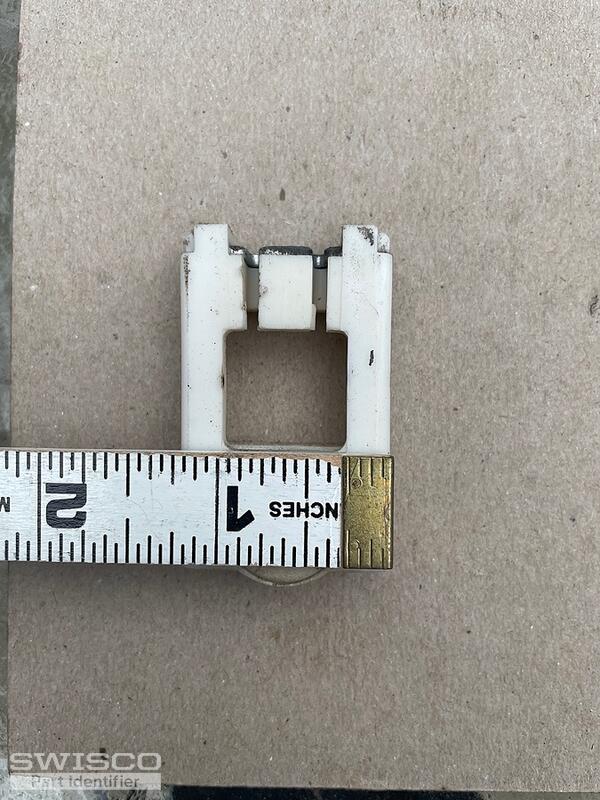

1 1/4" wide
1/2" thick
2 1/8" to the bottom of the circle

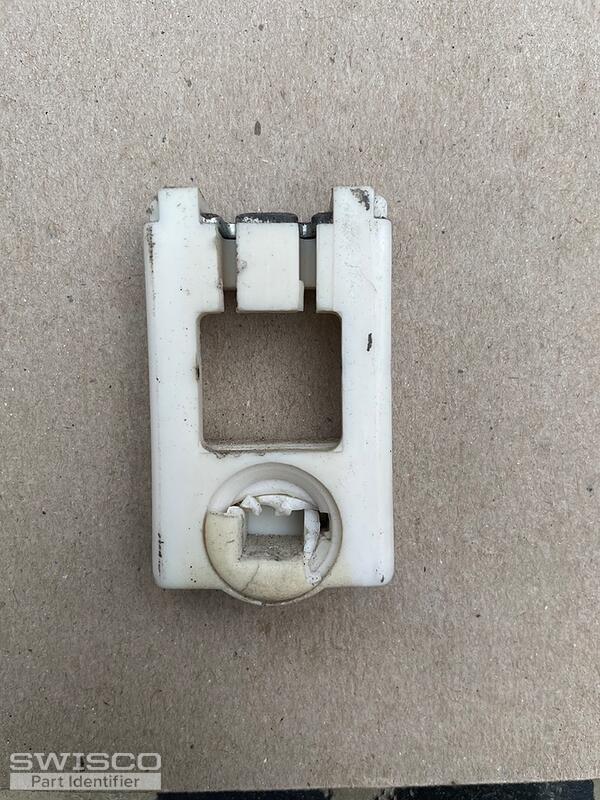

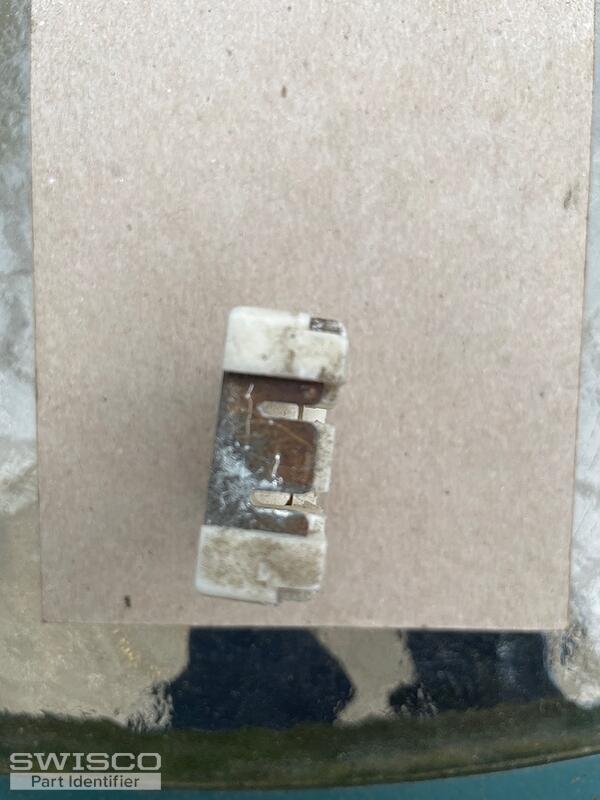

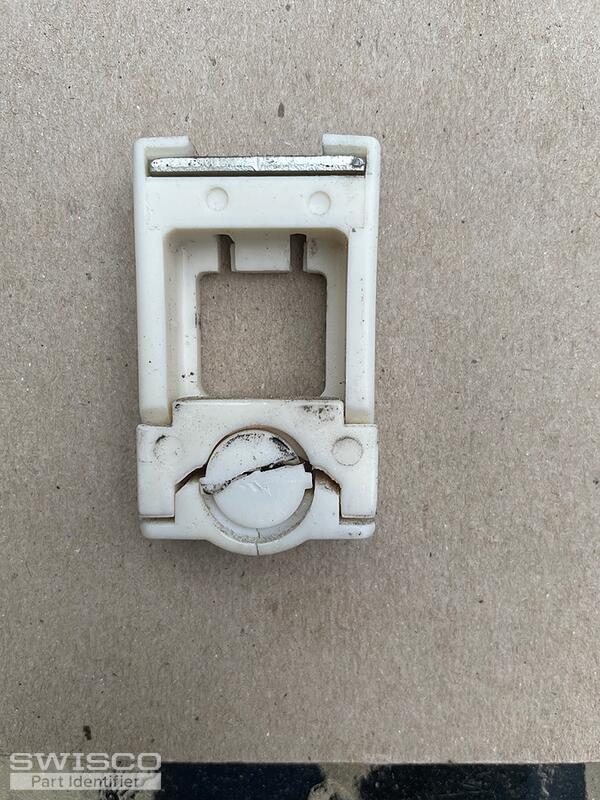

5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Great, take a look at the 15-046 pivot shoe shown below, which has the same width and thickness as your original shoe. Keep in mind that the overall height is not as important since you have the entire window channel to compensate for the 1/8" difference.

Alternate image for 15-046
Alternate image for 15-046

Home Owner from Baltimore Maryland
Thank you so much! I greatly appreciate your help.
Casey
Casey from SWISCO
SWISCO
Expert

It was our please! Just let us know if you have any other questions.
