Pivot Shoe replacement

A home owner from New York, NY says:
May 21, 2020

I broke the pivot shoe for spiral balance in my window. Trying to figure out which replacement. Took photo measurements of the spiral balance & broken pivot, but still not sure. 'The window is double hung Tilt In

Thank you for any assistance.RgdsPatrick

Thumbnail of the uploaded file named IMG_8960.JPG
Thumbnail of the uploaded file named IMG_3062.JPG
Thumbnail of the uploaded file named IMG_9850.JPG

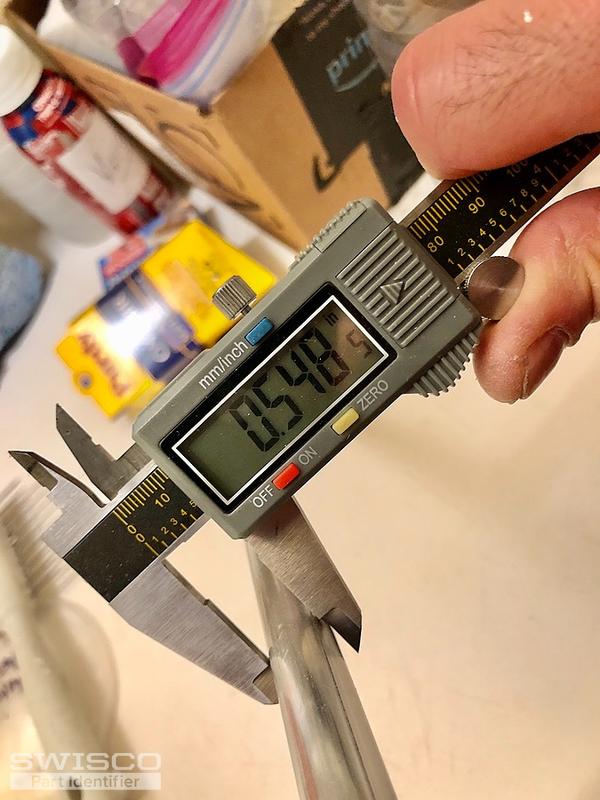

Thumbnail of the uploaded file named IMG_8020.JPG

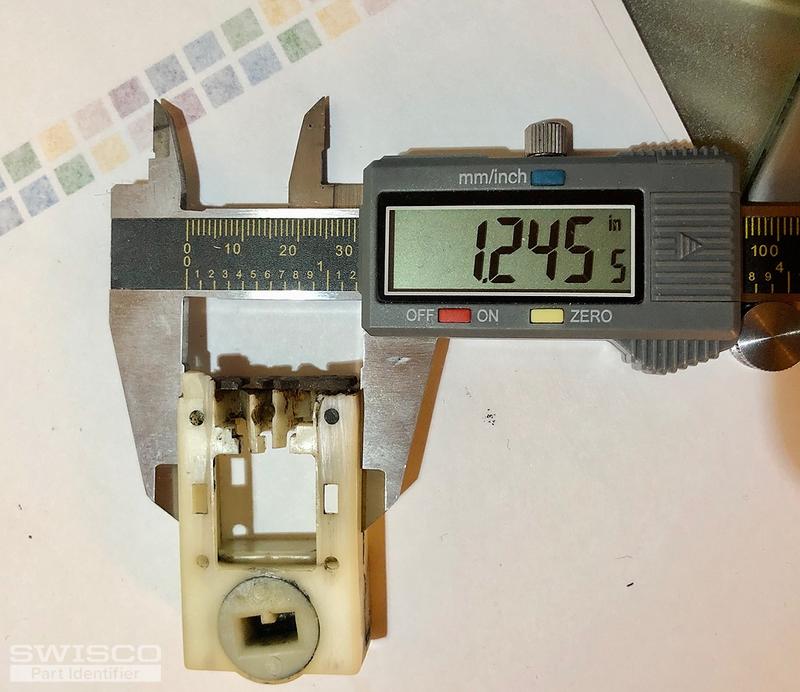

Thumbnail of the uploaded file named pivot with broken parts.jpg
A home owner from New York, NY says:
May 21, 2020
My guess is replacement item: Product Code: 15-046
Profile picture of Casey
Casey from SWISCO responded:
May 25, 2020

Hello,

I agree that your window appears to be using our S600 spiral balance and 15-046 pivot shoe. Take a look and make sure that all of the information on our product pages matches up to your hardware. Thank you!
