Pivot Shoes

A quick learner from USA says:
May 3, 2022
I need to make sure I have the right pivot shoe. I originally ordered 15-015 and 15-047 but cancelled my order because I wasn't sure. Please help.

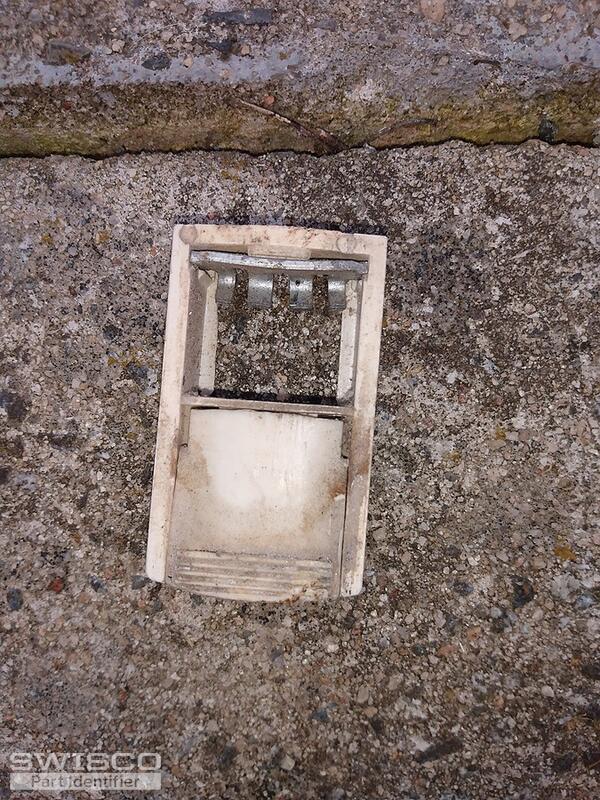

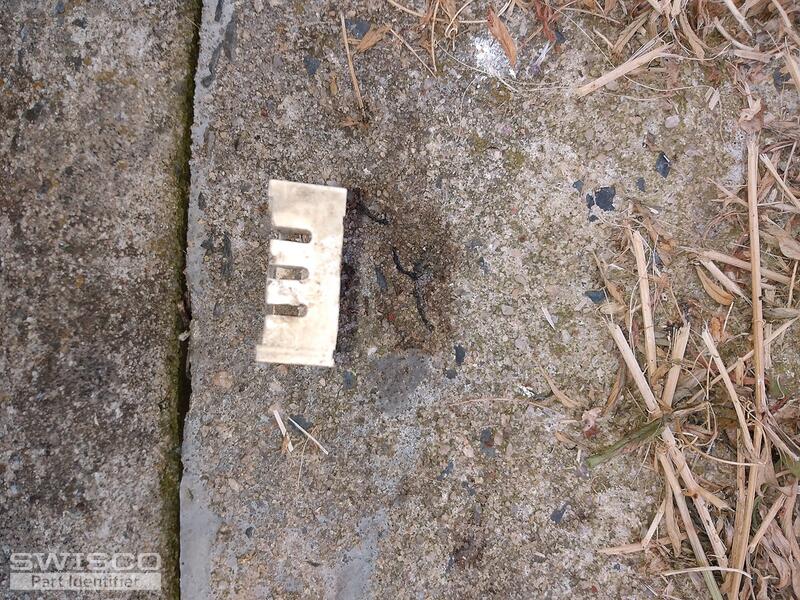

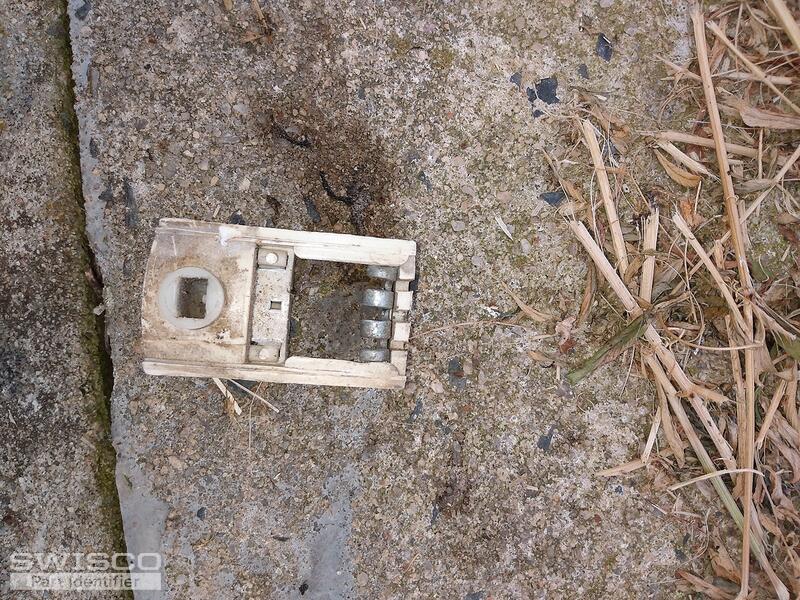

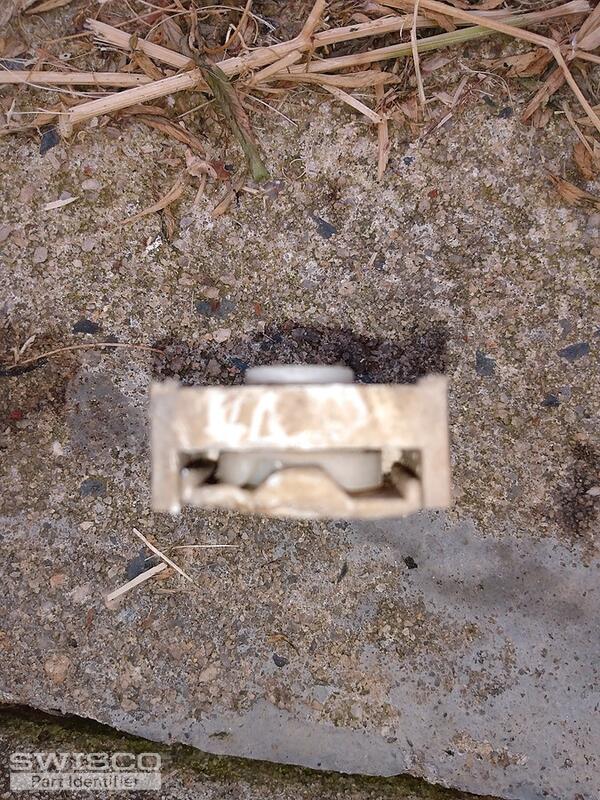

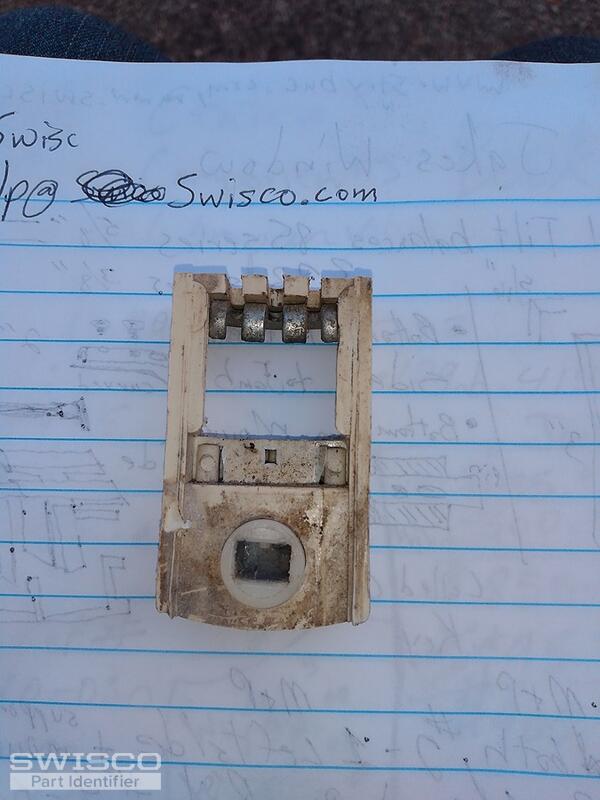

Thumbnail of the uploaded file named IMG_20220503_085310839.jpg
Thumbnail of the uploaded file named IMG_20220503_090232539.jpg
Thumbnail of the uploaded file named IMG_20220503_085329709.jpg
Thumbnail of the uploaded file named IMG_20220503_085335662.jpg
Thumbnail of the uploaded file named IMG_20220503_090207524.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 4, 2022

I'm afraid the company that made this pivot shoe has been out of business for some time now. In order to determine a match, we'll need you to write out the thickness and width for your pivot shoe.
A quick learner from USA says:
May 12, 2022

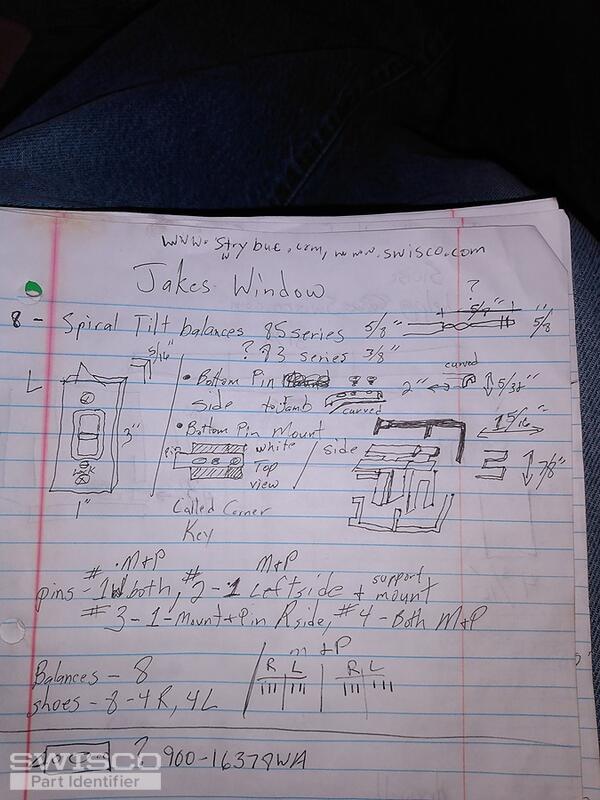

Additional photos with dimensions.
Thumbnail of the uploaded file named IMG_20220506_083407346.jpg
Thumbnail of the uploaded file named IMG_20220506_081640327.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 12, 2022

Thank you! Based on your pivot shoe's 1/2" thickness, take a look at our 15-046. This appears to match your dimensions but look this over and see what you think.

Alternate image for 15-046
Alternate image for 15-046
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
