Pivot Shoes & Pivot Bar

Hi Barry,

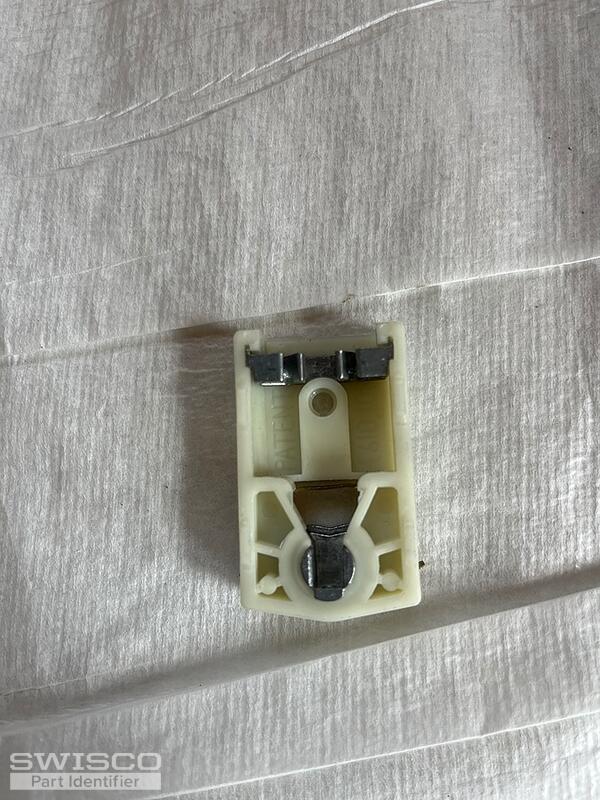

Thanks for your post! The pivot shoe with the opened back can be replaced with either the 17/32" thick 15-178 or the 1/2" thick 15-188 Pivot Lock Shoes. You'll need to confirm the thickness of your shoe to determine which of these is the correct replacement.

The shoe with the closed back can most likely be replaced with the 15-129 but be sure to double check the dimensions for the width and the thickness to confirm.

The dimensions for all three shoes can be found directly on the website.

Your pivot bar reminds me of the 26-352 Pivot True Pivot Bar. Compare the installation hole placements to confirm that this is the one you need.

Alternate image for 26-352

Alternate view of 26-352

I see now. If the original shoe is the one in the second photo, you'll need either the 15-178 or the 15-188. As mentioned, you'll need to measure the thickness of your shoe to confirm the right replacement.

The 26-352 Pivot Bar is compatible with both of these shoes.

Dimensions for 15-178

Alternate image for 15-188
