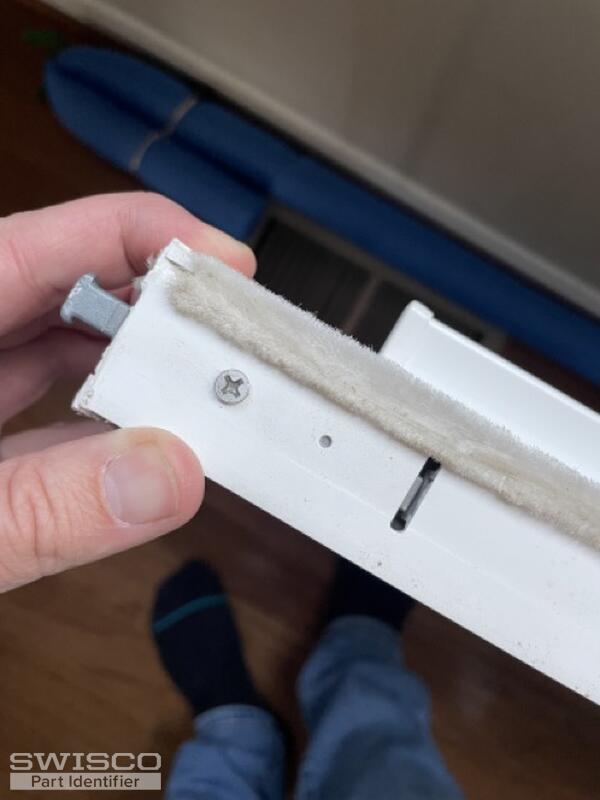

Two of these bar broke on one of our windows. The bar pictured is from another window which had the bars intact. I have included images of the bar, which looks similar to the Swisco 3 inch pivot bar (Product Code: 26-378) except the hole measurements do not appear to match.

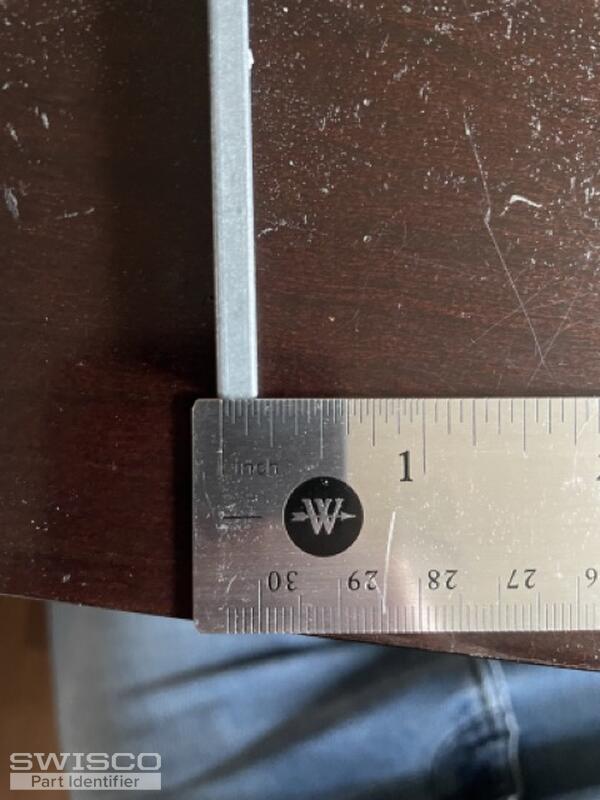

I have included a picture of the bar next to a ruler from multiple angles. Please let me know which, if any of, sash pivot bar available via swisco would work as a replacement.
Pivot bar, approximately three inches long, two holes, the first around 1 6/16
Home Owner from Falls Church, Virginia
Nov 5, 2023 2:48 pm
5 user uploaded images
4 Replies
Bob from SWISCO
Nov 5, 2023 7:14 pm
Thanks for posting. I see what you mean. Take a look at our 26-272. This has a similar tip, but then extra mounting holes, including one near the other end that might align with the hole on your old pivot bar. Please compare.
Alternate image for 26-272
Home Owner from Falls Church, Virginia
Nov 5, 2023 8:02 pm
It looks like that far hole could be 2.5 inches from the front. If it is, would be worth trying.
Thanks for sharing your knowledge with me. I'll place an order for a few.
Thanks for sharing your knowledge with me. I'll place an order for a few.
Bob from SWISCO
Nov 5, 2023 9:10 pm
Sounds good. Let us know how they work out for you, or if you have any other questions.
