Tom from SWISCO responded:
September 28, 2022

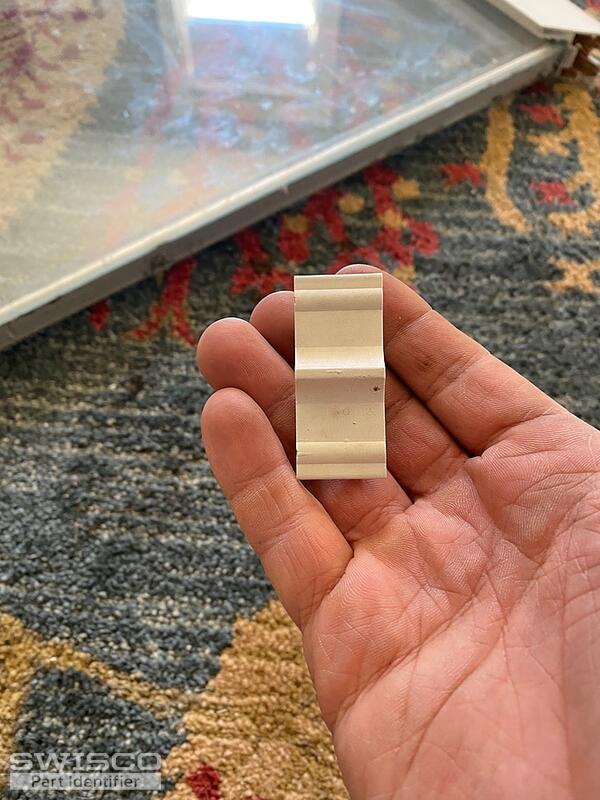

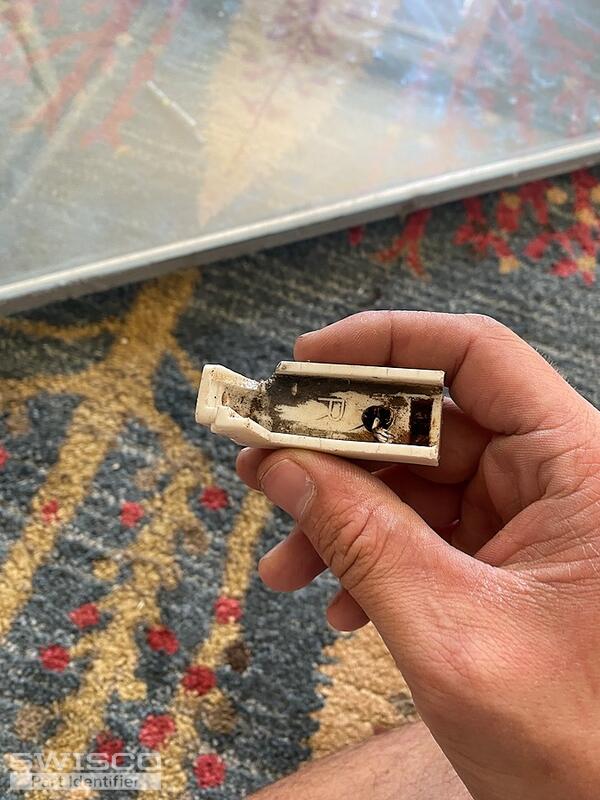

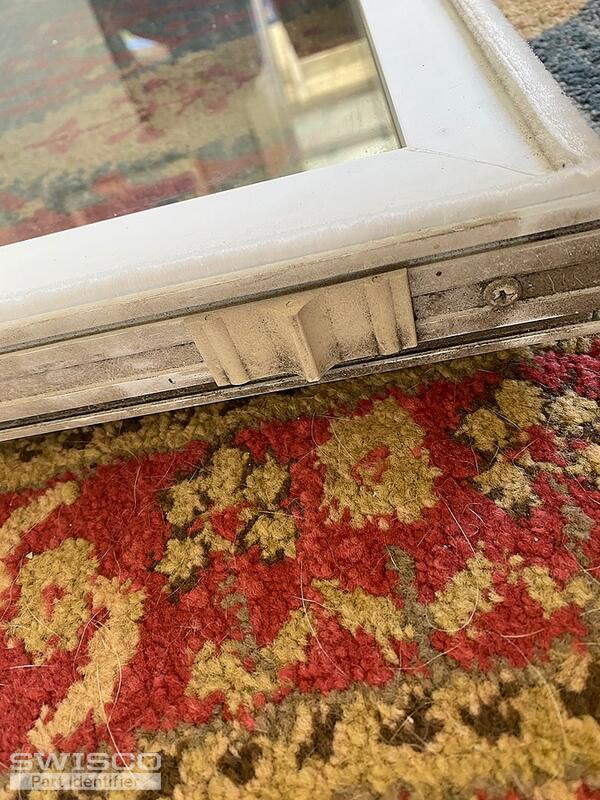

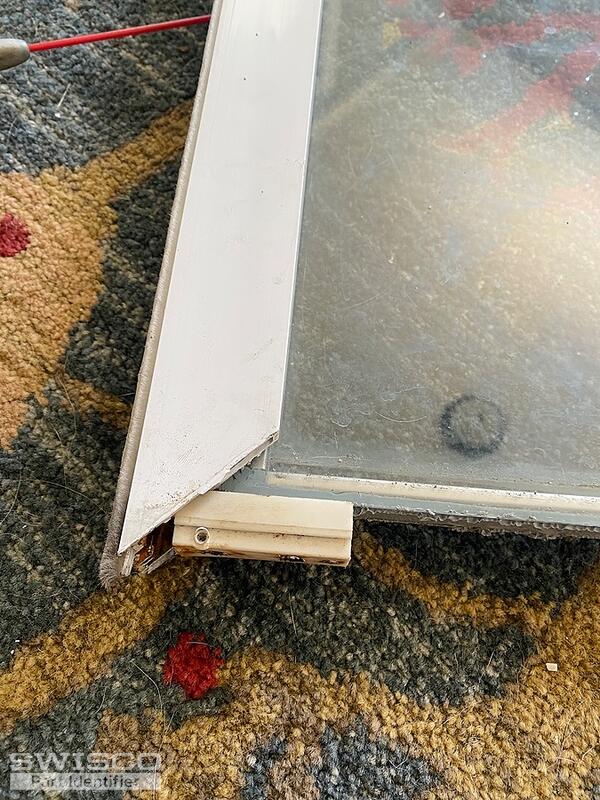

Thanks for reaching out to us! I don't recognize the parts you have here, but we do sell many that are similar. Hopefully we can get something for you in each case. Starting with the actuator, can you tell me exactly how yours differs? If it's a matter of size, I will need the precise measurements written out, if possible. In my experience the biggest determining factor will be the size and spacing of the two bottom prongs. As for the pivot bar carrier, the only product we sell that may work is our 26-382S. This is compatible with the 26-089 but my major concern is whether or not it will be too large to fit in your sash. It looks a lot longer than your original. Look it over and see if you think. Dimensions for 26-382S
|
Tom from SWISCO responded:
September 29, 2022

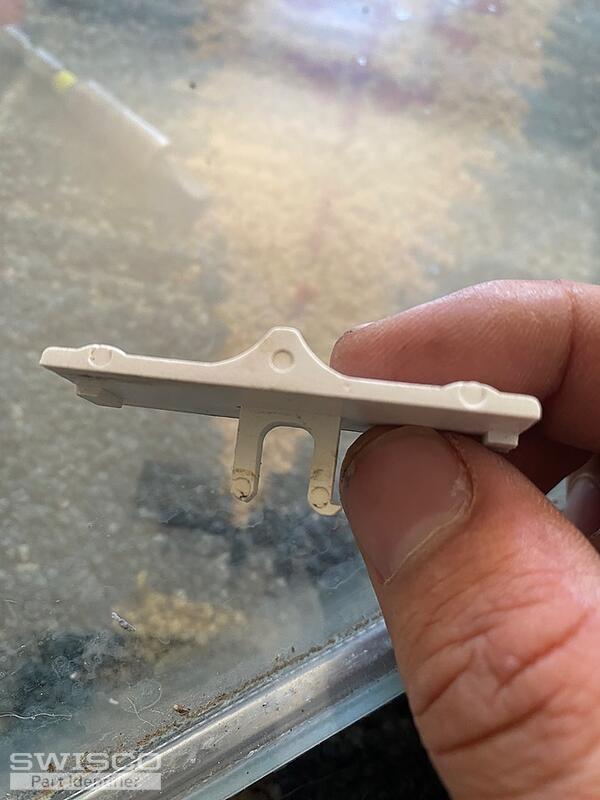

We sell two actuators with 7/16" long prongs: our 26-119 and 26-235. Their prong spacing is also the same at 1/2", measured from the outside. If that measurement also matches yours then I think these are worth considering. However, they are the only options we have. If neither will work or if that 1/2" measurement is no good then your next best option is going to be installing a surface mount latch on top of the sash. To be perfectly honest with you, that's something you might want to consider anyway; surface-mount latches are a lot easier to deal with and if you have room on the top of the sash for the latch and if you're okay drilling new holes then I think it's a reasonable solution to your issue. The video below will show you what I mean. As for the pivot bar case, your dimensions still differ from our 26-382S. I am not very confident that this will work for you but it is the only thing we sell that might. |
