Pivot bar and pivot shoe

A quick learner from michigan says:
June 4, 2021
Can I use the 26-450 Pivot bar with the 15-129 Pivot shoe?
Profile picture of Tom
Tom from SWISCO responded:
June 9, 2021

I don't think that you can. The 26-450 has a "collar" around the front tip that will make it too large to fit in the 15-129's came.

Do you have photos of your original parts? I can use those to try to find a good match.
A quick learner from michigan says:
June 9, 2021
The pin was 3" to 3-1/4". I don't have a complete sample.

Aluminum window.

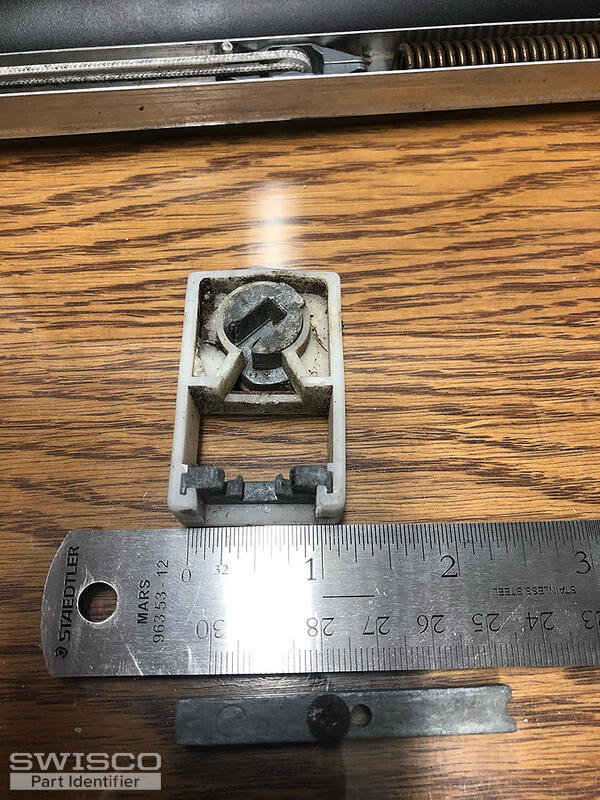

Thumbnail of the uploaded file named Asford front.jpg

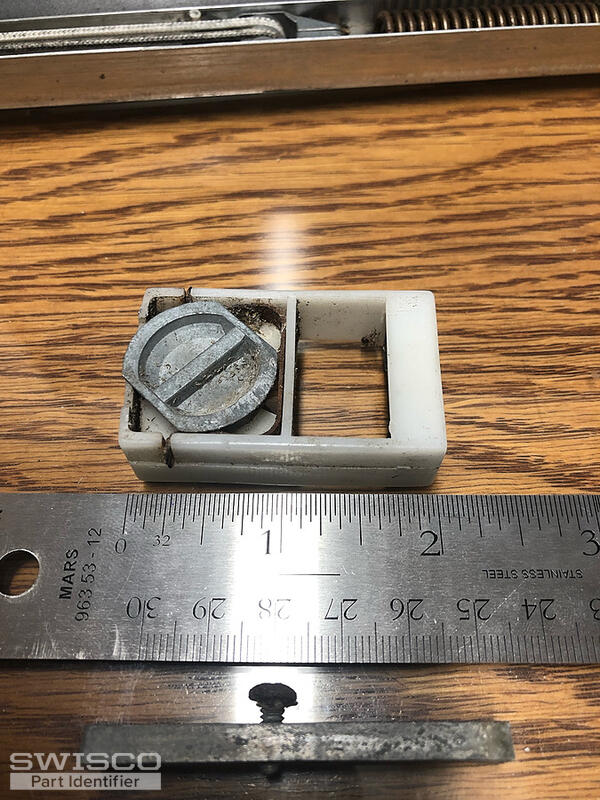

Thumbnail of the uploaded file named Ashford pivot back.jpg

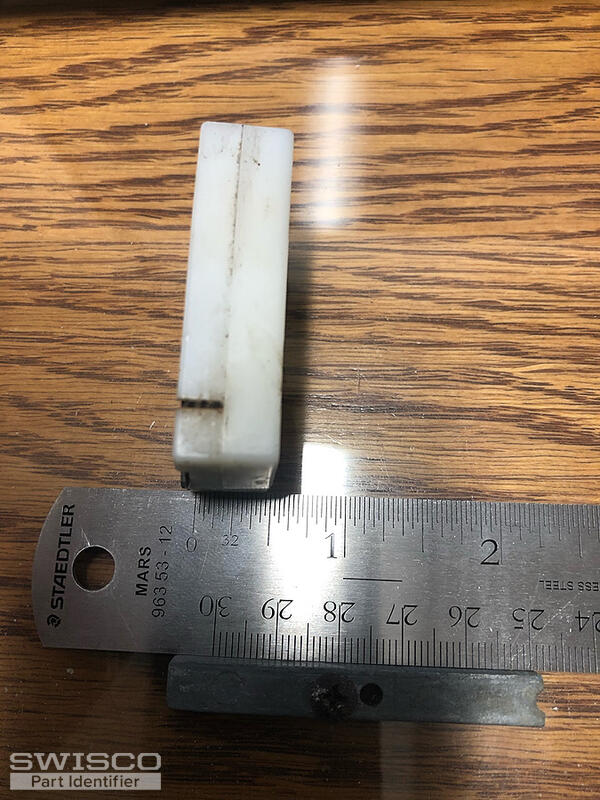

Thumbnail of the uploaded file named Ashford side.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 10, 2021

Thanks for this photo. Your shoe may be similar in design for the 15-129 but it is not a match. The cam on yours is much larger. This looks like it might be closer in design to our 15-188, which is absolutely compatible with the 26-450 pivot bar.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
Pivot Bar
Pivot Bar
26-450
$1.97
