Pivot bar and pivot shoe

Question

The pivot pin is 2 1/2" long. We think it might be part #26-433. I need the pins and the shoe that goes with it. Can you help me figure out what parts I need to order?

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 15-129 as long as the specifications below match yours.

Detail of 15-129

As for the pivot bar, the 26-433 would be a good place to start, but the backset of the installation hole would be the determining factor. If yours differs, please write out your exact measurement, and we'll be happy to confirm if a closer match is available. Thank you!

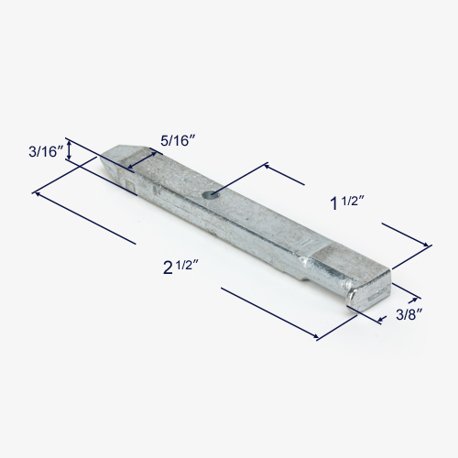

Alternate image for 26-433
