Pivot bars

Quick Learner from Kalamazoo, MI

Aug 7, 2023 11:13 am

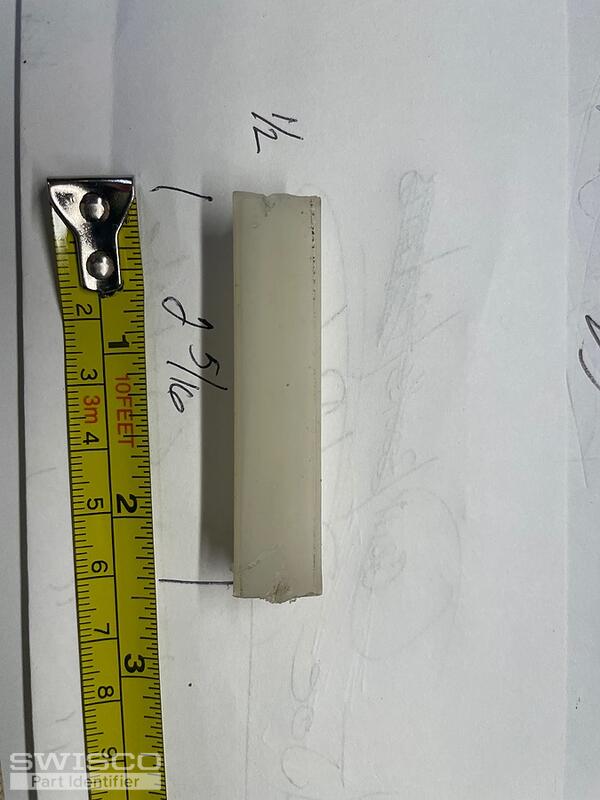

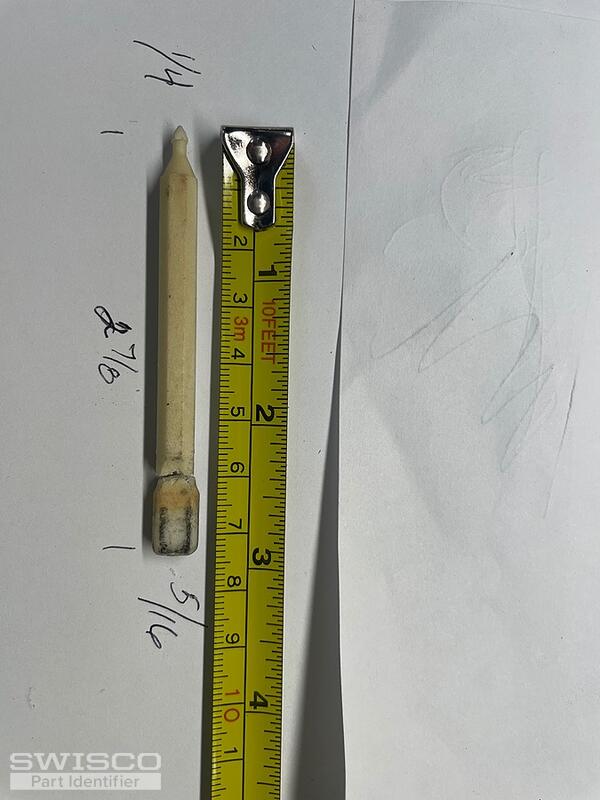

Please help in trying to determine if you have something to replace my broken pivots. The 26-373 or 404 look to be close but mine are plastic/ ceramic? I don't know the brand of windows, there are no markings or numbers visible. All vinyl

5 user uploaded images

5 Replies

+ Add a Comment

Emily from SWISCO

Aug 9, 2023 8:27 am

EXPERT

Thank you for reaching out to us! Can you show us some photos of these parts installed? I can't promise we'll have a match but that will help us confirm.

Quick Learner from Kalamazoo, MI

Aug 11, 2023 4:00 pm

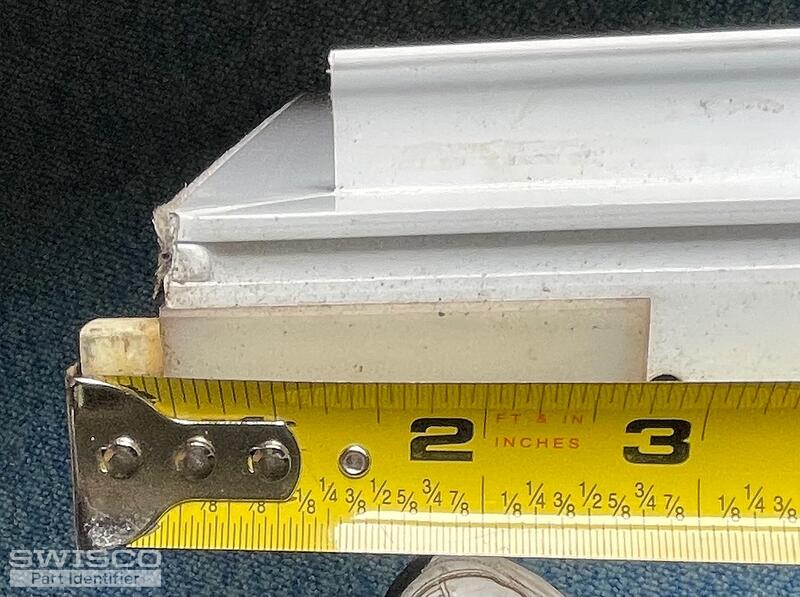

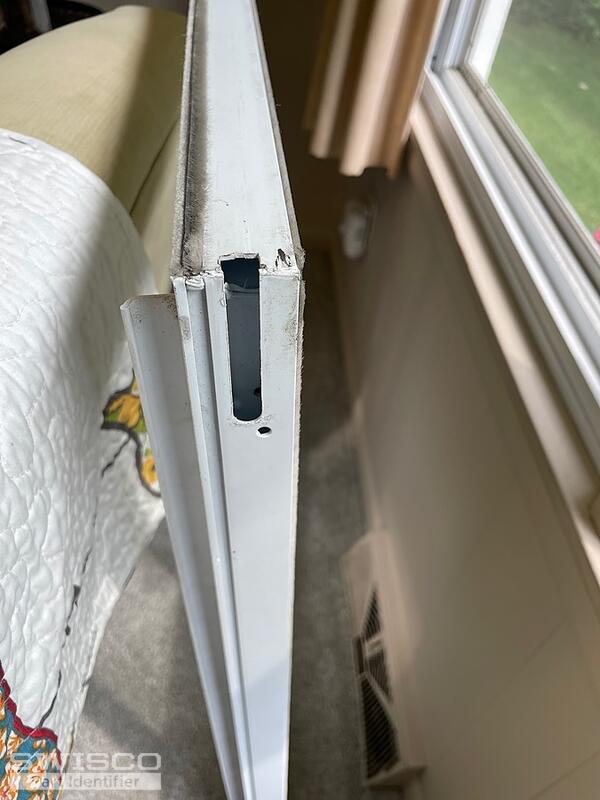

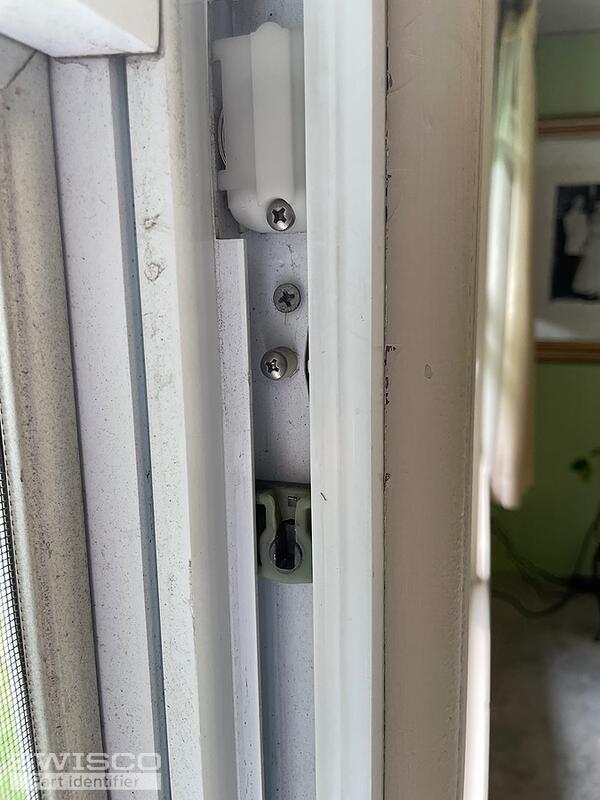

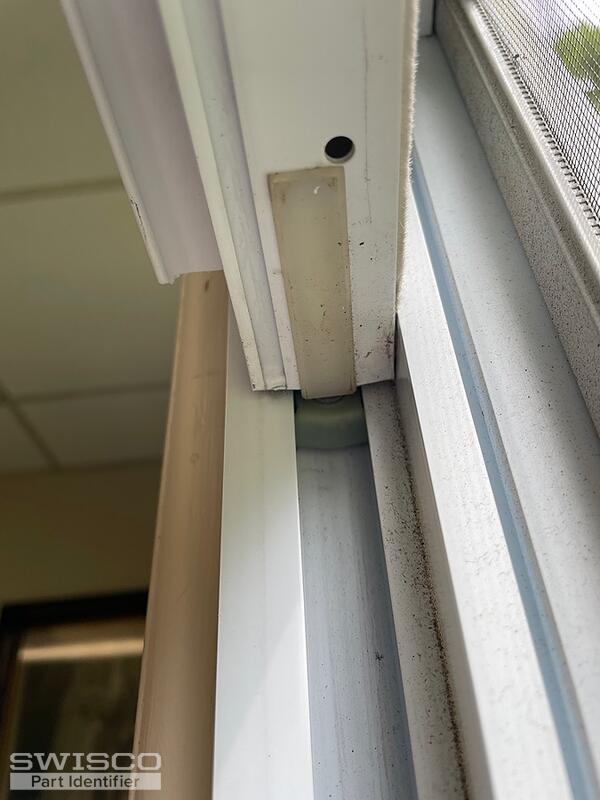

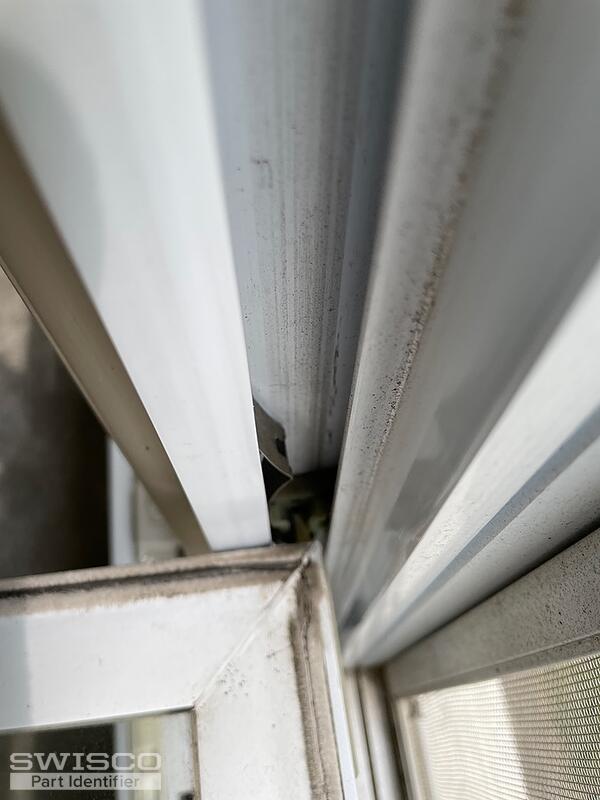

Here are more photos of installed pivots

5 user uploaded images

Emily from SWISCO

Aug 14, 2023 8:55 am

EXPERT

Thanks for the additional photos! We believe what you're showing here is an older version of the 26-040 pivot bar and 26-382S case. These parts aren't a direct replacement so we can't make any guarantees but they do appear to be our best options. Take a look a see what you think.

Quick Learner from Kalamazoo, MI

Aug 14, 2023 10:08 am

Thanks Emily, I will give those a try!

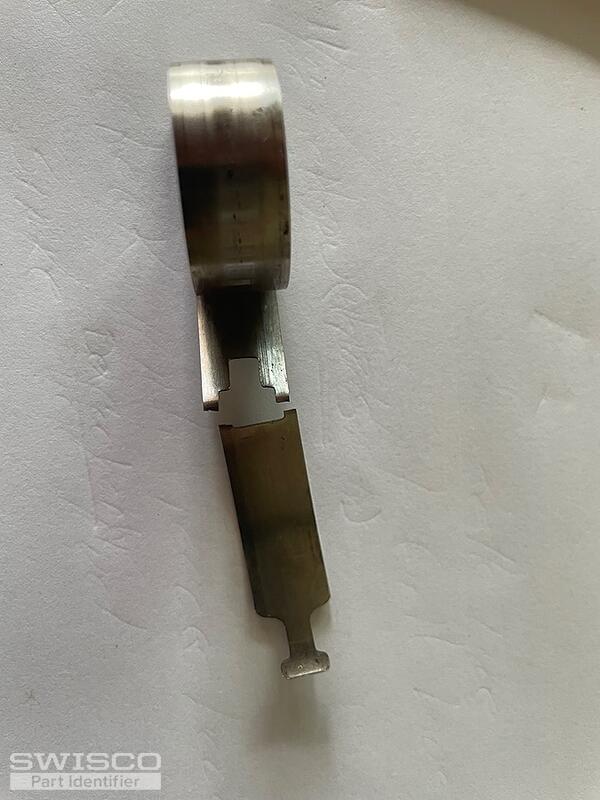

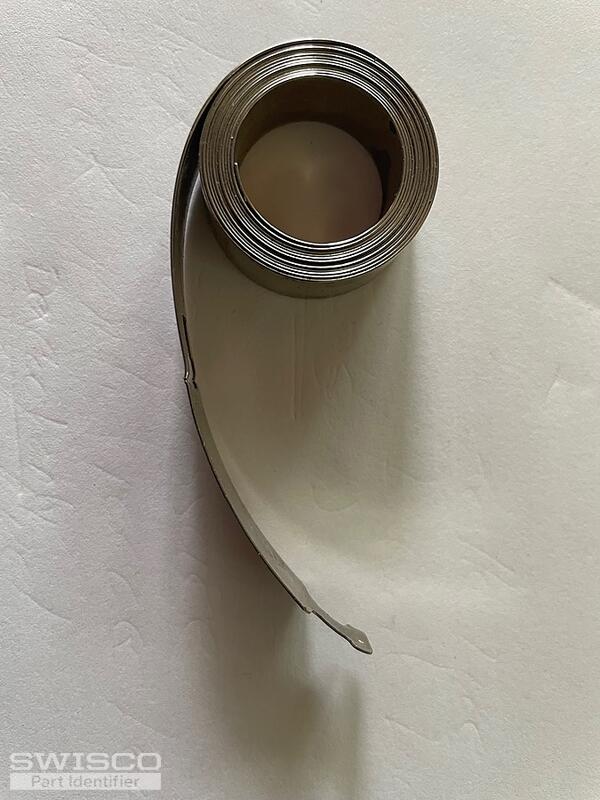

Also I will be ordering several balance coils for all my windows. I have all the weights figured out but need a verification on coil series. I believe the s-160 is the style I need, they are all 1/2" wide with a "T" that attaches to pivot shoe. Here is a pic of what they look like.
Thanks for your help!!

2 user uploaded images

Emily from SWISCO

Aug 14, 2023 11:38 am

EXPERT

No problem, I'm happy to help!

Your pivot shoe looks like it may be a match for the 15-111. If that's the case, the 1/2" Series 160 are the compatible springs and would be what you want.
