Pivot bars. Balances. Tilt bars.

Question

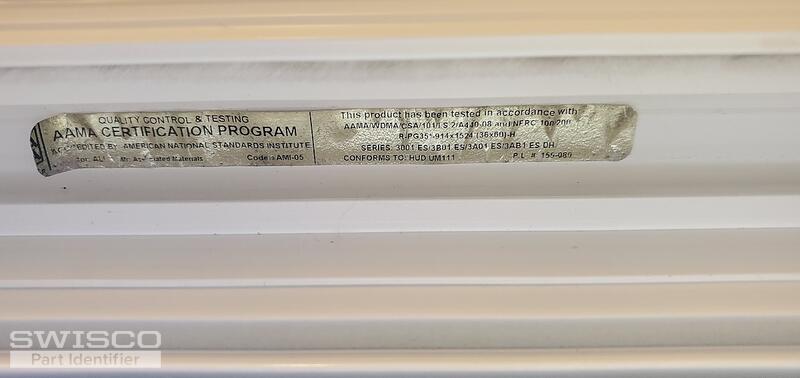

I am in need of parts for alside windows series 3001. Need right and left coil balances. Pivot bars and tit latches.  Susan

Lauren · Accepted Answer

Hi Susan, thank you for posting,

Please review the 15-177 pivot shoe that is compatible with the Series 152 coil springs. Compare below to confirm a good fit!

Alternate image for 15-177

There should be a number stamped on the coil spring that indicates the weighted option needed. If there is no markings, please provide the weight of the window sash to move forward. Also see the 15-143 bushing, 15-144 bushing cap and 15-145 support barrel for a new cover.

For the tilt latches, compare the style and dimensions of the 26-243A and 26-244A.

Do you have a picture of your original pivot bar that we could review? Thank you!

Dimensions for 26-244A
