Pivot bars for Nami windows

Home Owner from Tennessee

Feb 28, 2018 10:02 pm

Looked everywhere, just need the inside part that slides into the housing, about 3 in long and 1/4 in wide. As long as it will Work and be an inexpensive fix.

6 Replies

Paul from SWISCO

Mar 2, 2018 3:01 pm

I can't understand why Simonton window company would switch from a metal pivot bar to a nylon bar. The pivot bar takes a lot of pressure in holding the weight of the sash, in addition to when it twists when tilting in the sash. Since the nylon housing looks fine, we might be able to supply a metal tilt bar to go inside the housing. Before we recommend anything please give us dimensions showing the width and length of the nylon tilt bar that fits in the nylon housing.

Home Owner from Tennessee

Mar 4, 2018 12:13 pm

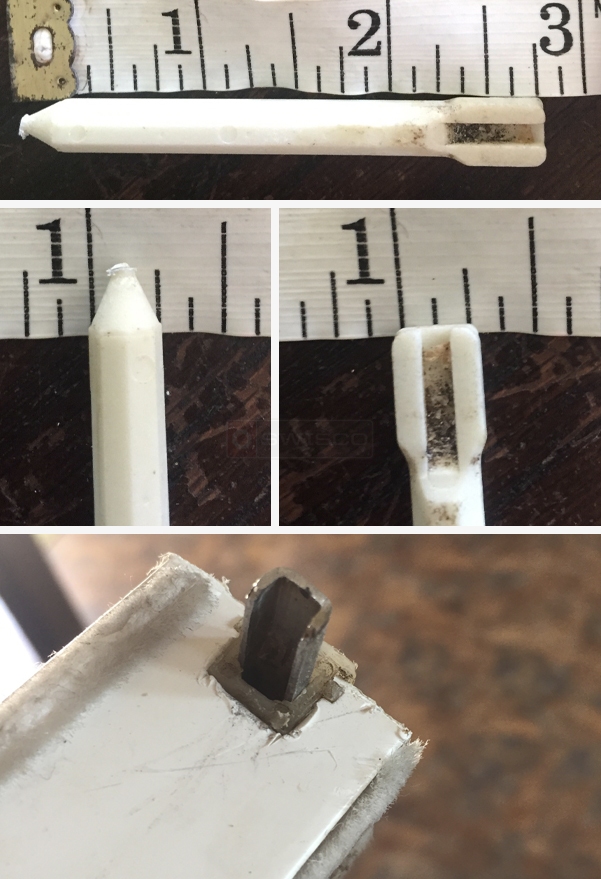

I had one made from a window/glass store but they charged me 25$ and it?s a metal u shaped insert that?s 1/4 wide and 2 1/2 in long .. i can cut them into the length they need to be but i can?t find the inserts anywhere attached the last pic is the insert they made me

Paul from SWISCO

Mar 6, 2018 12:29 pm

We have a 3" pivot bar, 26-089, that can be cut down to 2-1/2" with a hacksaw like our 75-023. Could you make that work?

Quick Learner from Gallatin tn

Mar 6, 2018 2:11 pm

Yes!

Paul from SWISCO

Mar 6, 2018 2:59 pm

Great, I was hoping that could be an option. I'm happy you agree. Please let me know if you need anything else.
