Pivot casing for vinyl replacement window is cracked

Question

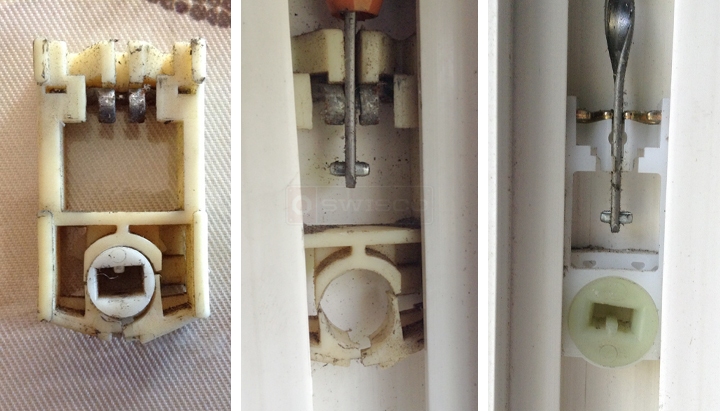

Hi, the first two pictures I sent are from the left side of the window, one is with the piece in place and the second is with the part removed. The third is the right side of window but appears to be slightly different than the left. Should there be a difference between the right and left or is the part interchangable? If you recognize the part or parts could you let me know so I can order the right parts.

Just measured the part and the width is 1 7/32 x 9/16 thick x 2 1/4 high at its longest point.

Thanks, John

Tom · Accepted Answer

Hi, and thank you for writing in. The pivot shoe in the left two pictures has been discontinued; however, our 15-046, which coincidentally appears to match the pivot shoe in the right picture, is a suitable replacement. Let us know how it works out.
