Pivot for Single Coil Balance : SWISCO.com

Quick Learner from Detroit, MI

Mar 1, 2024 6:08 pm

Hey there!

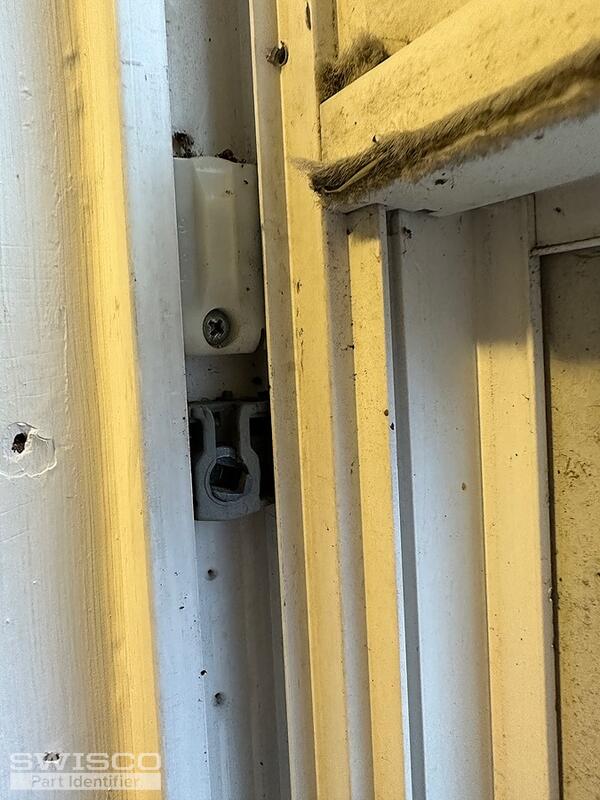

I also need a pivot pin replacement for a single coil balance. One of them fell out and was lost.

The tooth is 7/16"

4 user uploaded images

4 Replies

Jasmine from SWISCO

Mar 4, 2024 11:36 am

Thanks for posting! Your pivot bar reminds me of either the 26-373 Slide In T-Pivot Bar or the 26-404 Slide-in Pivot Bar. To determine which of these is the best fit for the bottom of your sash, carefully compare the dimensions below. The main difference between the two of them is the length of the bar.

Dimensions for 26-373

Profile view of 26-373

Alternate image for 26-404

Alternate view of 26-404

Quick Learner from Detroit, MI

Mar 4, 2024 12:50 pm

Thank you! I think I'll go with 26-404.

Another Question, I have balances that almost exactly match S795 - 24A.

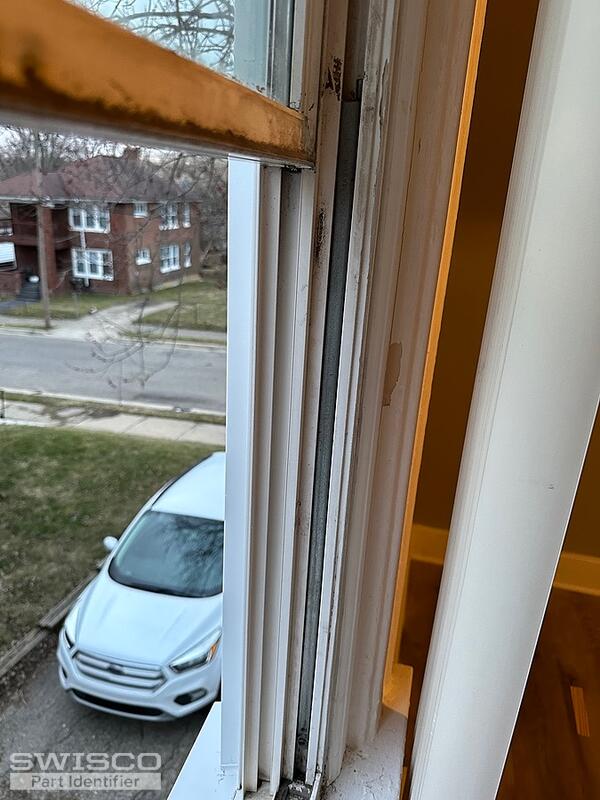

Is there a piece of hardware that the balance is supposed to "hook" into at the top of the channel? I see a little rectangular hole in the vinyl

1 user uploaded image

Jasmine from SWISCO

Mar 4, 2024 1:37 pm

Okay, great! I'm glad to hear the 26-404 is a fit.

Regarding the balances, you are correct. It does appear you have the Series 795 Channel Balance. If it is stamped with a 24A, then the S795-24 would be the balance you need.

May I see a photo of the installation hole at the top of the window? I'll need to see it to determine if your replacement balances would need to be a custom made assembly.
