Pivot hardware

A quick learner from Atlanta GA says:
May 14, 2020

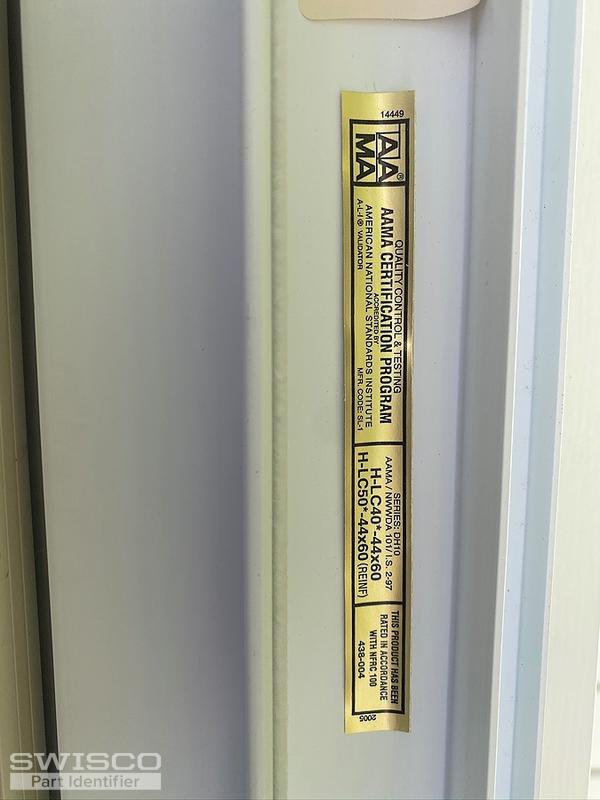

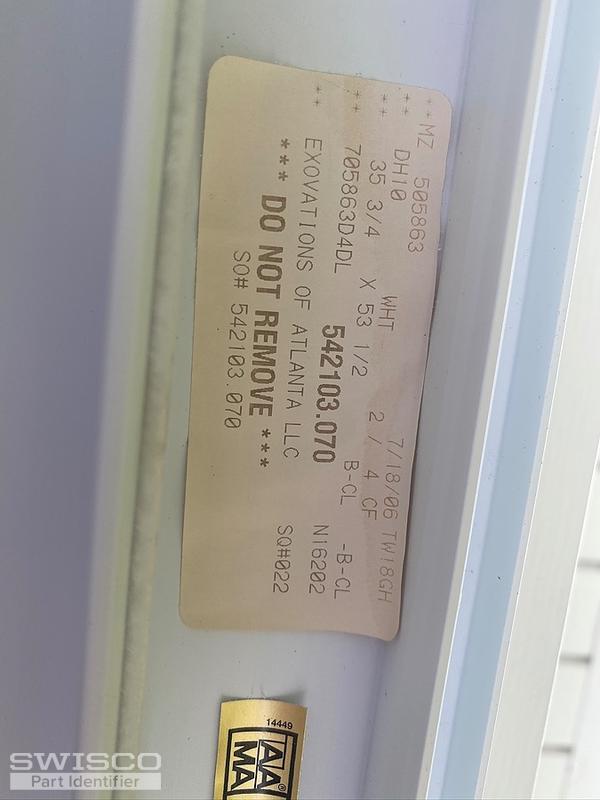

Company that installed windows in 06 is telling us they can't get the hardware any more.
Please tell me that is not true.
Thumbnail of the uploaded file named F39C40D0-E3EA-418B-876E-E85A11A20EA0.jpeg
Thumbnail of the uploaded file named 112AC3F6-48DE-480C-B8B4-DC2652FC0D39.jpeg
Thumbnail of the uploaded file named A6EF30F6-971E-4951-A67B-0403F2B70C5C.jpeg
Thumbnail of the uploaded file named B320CAA7-57AF-4C85-A0B4-4D0F719243D0.jpeg
Thumbnail of the uploaded file named 97E209FF-C168-4079-9F0E-43094F036380.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 18, 2020

We should be able to help. It looks like you need a new pivot shoe and pivot bar. The pivot shoe matches our 15-177, but the pivot bar is too damaged to identify. It could be a match for the 26-226 but you'll have to compare our dimensions to yours to confirm.
A quick learner from Atlanta GA says:
May 19, 2020

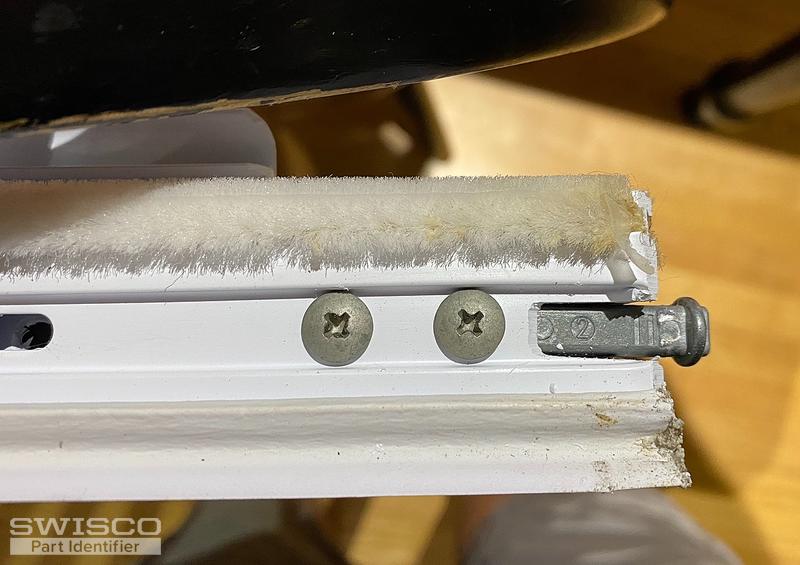

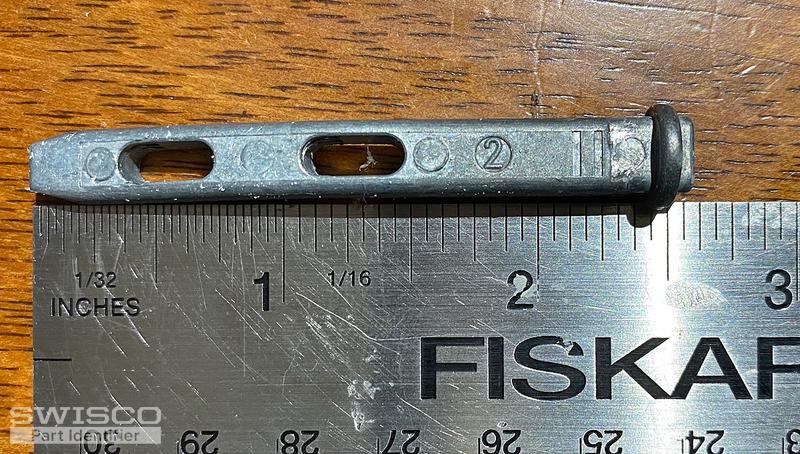

Pivot looks to only 2 9/16
could I adapt 26-226? Pivot end looks the same
Thumbnail of the uploaded file named 099625CB-5DD8-47A7-ACB5-E9600EB849D4_1_201_a.jpeg
Thumbnail of the uploaded file named 7652C1FF-D8D5-4DAE-872E-769871EEE530_1_201_a.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 20, 2020

The pivot ends do look the same, so it's promising. Overall length doesn't matter as much as hole placement, though. Refer to the diagram below for the hole placement of the 26-226. As long as those match, then it will work.

343
A quick learner from Atlanta GA says:
May 20, 2020
Thanks for the advice.
I have ordered 12 of each.
Looks like they should work fine.
