Pivot lock shoe

Hello,

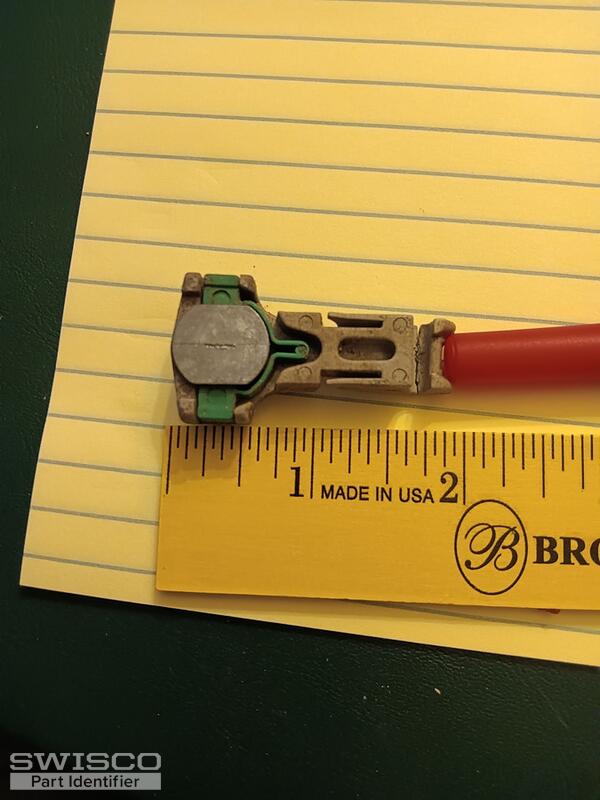

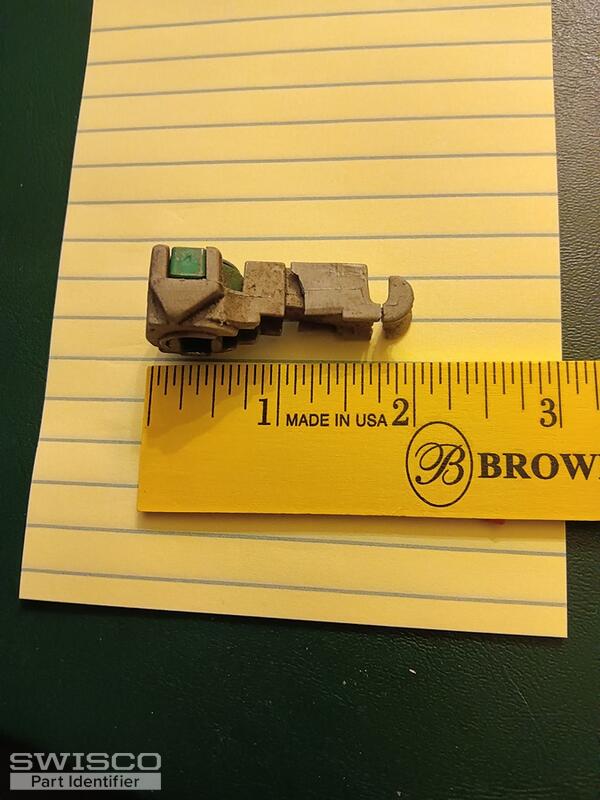

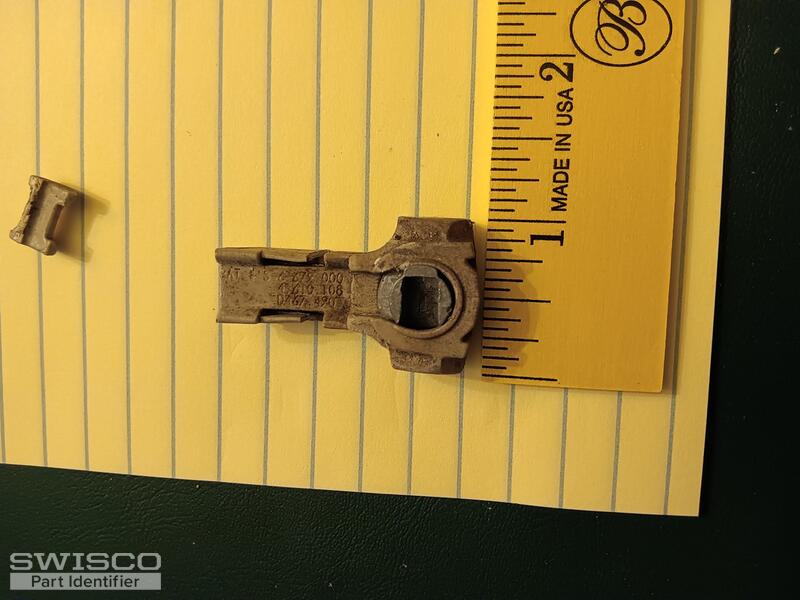

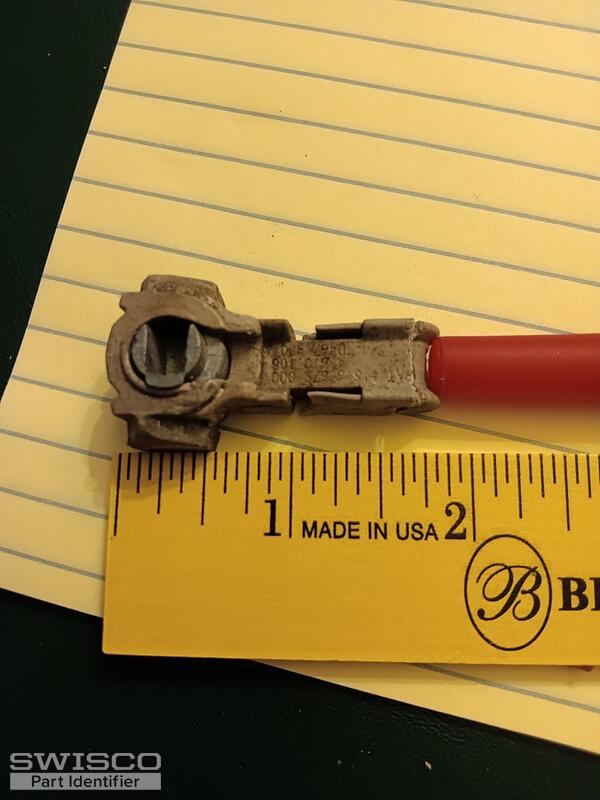

Your T-lock shoe is a similar style to the 15-194 except for the groove in the stem. Since your metal channel has that same groove, unfortunately, the 15-194 won't fit.

In this case, your best option would be to replace the channel balances on both side. Our Series 795 should be a match, though this comes with the 15-195 by default, which is bigger at 1-1/4" wide. You would need to purchase the smaller 15-194 shoes as well, which you will use to replace the default 15-195 by following the video below.

You'll also need to confirm the length, stamp code, and type of clip at the end of the pulley cord of your original balance to compare to our S795 replacements. Thank you!

How to measure the length of the Series 795 channel balance.
