Pivot lock shoe from PGT Vinyl Double Hung Window model DH22 or Series 15000

Quick Learner from Florida

May 16, 2017 11:55 am

Hello,

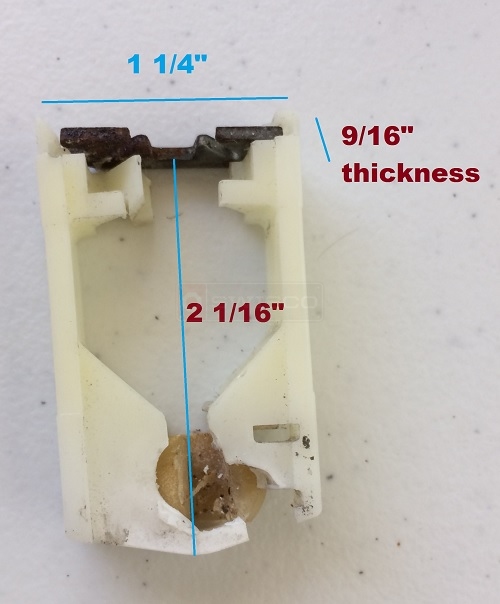

I am trying to find a replacement for the pivot lock shoe, picture of the broken one attached.
Looks like 15-129, but I am no sure. Could you please suggest?
Thank you.
Slava

7 Replies

Tom from SWISCO

May 19, 2017 2:13 pm

Hey, Slava. Our 15-210 looks a little closer. See what you think!

Quick Learner from Florida

May 21, 2017 10:02 am

Thank you so much! You suggestion looks much better. I am ordering the parts and will confirm in the thread if it worked.

Tom from SWISCO

May 24, 2017 10:55 am

Awesome, thank you! Please let me know how it works out. We appreciate your business.

Quick Learner from Florida

May 28, 2017 4:04 pm

Hi Tom,
Thank you. The part was perfect fit and it worked great. The only issue I had is that a little black break puck was a bit thicker than in original PGT part, so a thing layer had to be taken out from it with a fine sandpaper.
Thanks again for helping me out.

Tom from SWISCO

May 30, 2017 11:32 am

That's great news. I'm glad you were able to get it to work. Thanks again for ordering with us.

Quick Learner from Colorado

Feb 9, 2026 11:41 am

I know this a very old thread, but just to confirm that I had the same thickness issues with my 2005-era Milgard double hung windows. I used a sharp knife to shave the two ridges highlighted here on the 15-210 part and then it works great in my window.

1 user uploaded image
