Pivot lock shoes

A quick learner from New Jersey says:
July 27, 2018
don't know the depth of the shoe, hoping you can ID the right part.
Profile picture of Casey
Casey from SWISCO responded:
July 31, 2018

Hi there- thanks for posting!

It's hard to tell without measurements exactly what you have. Can you possibly remove it from the window and get the height, width, and depth? This will help us greatly. Thanks so much!

I've attached a video below on how to remove the pivot shoe from your window in case you need it.
A quick learner from New Jersey says:
October 3, 2018

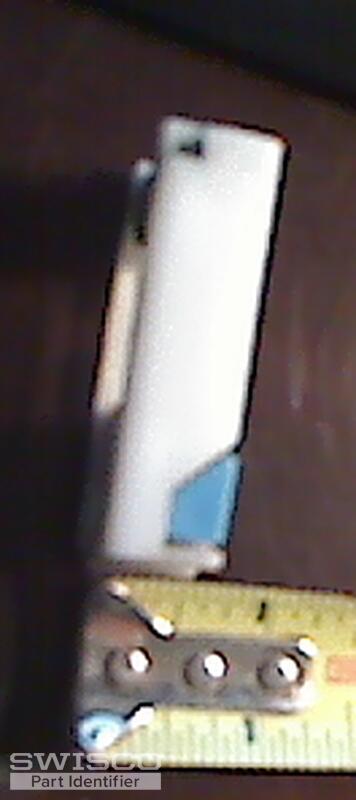

I hope these photos will help you in finding the right replacement part.

Thank you for your time and help.
Profile picture of Tom
Tom from SWISCO responded:
October 8, 2018

It's hard to make out your dimensions from your photos, but start by looking at our 15-046, 15-047, or 15-015. One of these may be a match depending on your dimensions.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
Pivot Shoe, 5/8" Thick
Pivot Shoe, 5/8" Thick
15-047
$2.20
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
