Pivot missing.

A quick learner from Narragansett, RI says:
The pivot piece is missing. Do you sell a complete kit
That would fit this window with the pivot and shoe thing
??
Thumbnail of the uploaded file named 71D95CB2-8431-4716-B08A-065B937166E0.jpeg
Thumbnail of the uploaded file named 00E129A0-09CE-43CE-8395-A1EEE5E5EA05.jpeg
Thumbnail of the uploaded file named 7D848C31-909D-4A44-9828-414947236E30.jpeg

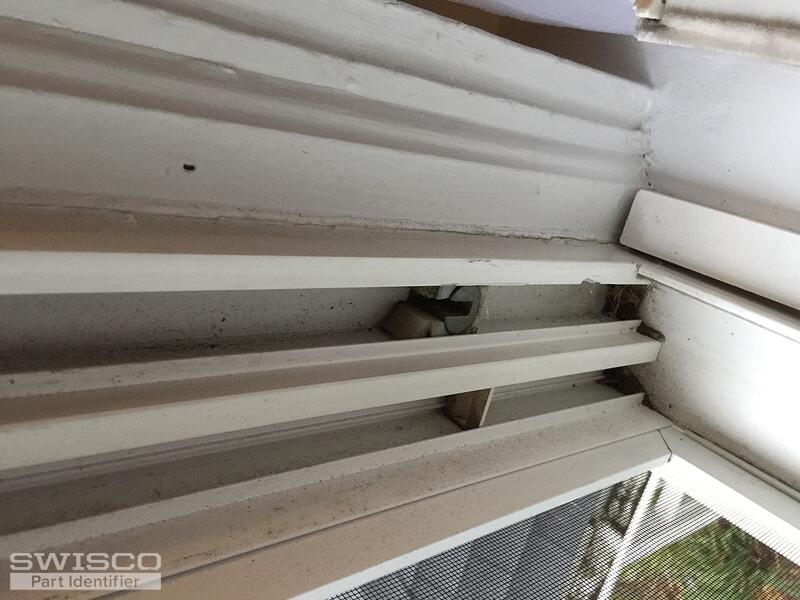

Thumbnail of the uploaded file named E64640B3-F795-4DBD-B202-C13C4F531199.jpeg

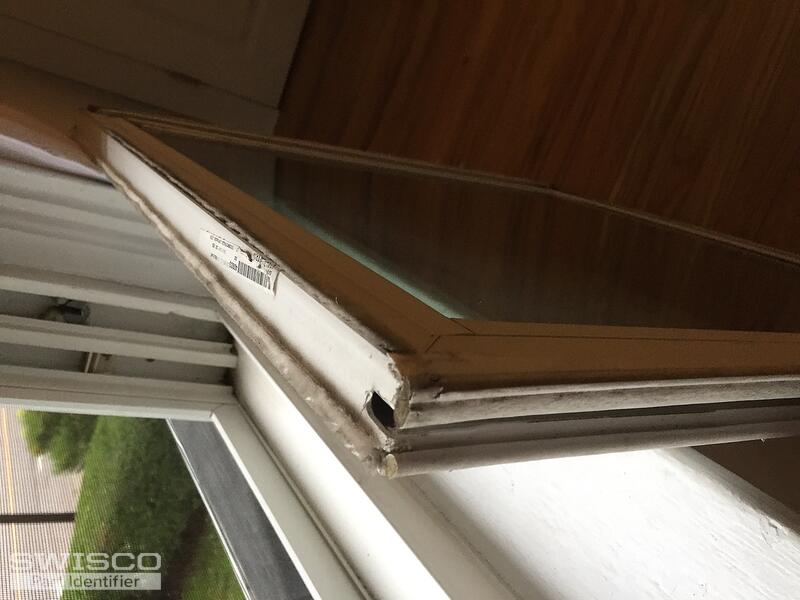

Thumbnail of the uploaded file named 01633368-2280-438D-8581-ECDE642DB3D3.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. Is this a Certainteed window? If so, you can use our 15-192 Pivot Shoe and the Series 170 and Series 171 Coil Balances. The video below goes into more detail.

A quick learner from Narragansett, RI says:
No, it is a Simonton window. I also need two pivot pins that go in the bottom of the window.
Profile picture of Bob
Bob from SWISCO responded:

Thanks for clarifying. If it's a Simonton window, this gets a little more involved, as the very similar Certainteed coil balance system doesn't work well as a replacement. Instead, we recommend overhauling entirely with a 15-259 Pivot Shoe, which uses the Series 159 Coil Springs. The video below explains everything you need to account for, including the pivot bars.

A quick learner from Narragansett, RI says:
Does the 15-259 pivot shoe fit both left and right sides do the window? 2. How do I find out which series 159 coil spring to order? They have different weights? Thank you
A quick learner from Narragansett, RI says:
Does the 15-259 pivot shoe fit both left and right sides do the window? 2. How do I find out which series 159 coil spring to order? They have different weights? Thank you
A quick learner from Narragansett, RI says:
I also need the screws for the pivot pin. Do they come with the pin when I order them? If not what size screw do I need?
Profile picture of Bob
Bob from SWISCO responded:

To know what spring weights to select for the coil springs, there should be stamps on the springs themselves, usually near the tongues. If there are none, or you are uncertain, obtain the exact weight of the window sash. Give me that exact weight and I can calculate what you need.

I believe you mean you need screws for your pivot bars. I am afraid we don't sell these with pivot bars, as the screws you need depends as much on the window sash as it does the pivot bars. I advise contacting a hardware store in your area and see if they can set you up with replacements.

A quick learner from Narragansett, RI says:
The window weights 14 pounds.

Does the 15-259 pivot shoe fit both left and right sides of the window????
Profile picture of Bob
Bob from SWISCO responded:

Yes, apologies for not answering that. The 15-259 and all these components will work on both sides of the window. Using the S159-7 7.5 pound spring will work out for you. Use one of those on both sides of the sash, for a total of 15 pounds of support (being within 1 pound of the sash weight works fine).

A quick learner from Narragansett, RI says:
Thank you very much!! I'll order today!
