Pivot replacement

A quick learner from South Pasadena CA says:
June 13, 2021
Up down brothers window. Does not stay open. Broken part.
A picture of intact side, a picture of broken side
Thumbnail of the uploaded file named 62253A5F-00C3-45CD-AC77-3E54CE89438B.jpeg
Thumbnail of the uploaded file named 8C357180-D9A5-46E9-AD70-D971A66136A5.jpeg
Profile picture of Casey
Casey from SWISCO responded:
June 16, 2021

Hello,

Your pivot shoe resembles our 15-177 but we would need to see an undamaged pivot bar removed from the window, along with dimensions, to compare to our inventory. Thank you!
A quick learner from South Pasadena CA says:
June 16, 2021
Thank you very much for your speedy reply.
Corrosion is making it difficult to remove pivot bar. Is there some kind of solution that may help? After removal I will try to determine specific dimensions.
At this point, I beleive I will need to replace the assembly(pivot bar, shoe, and coil balance) on both sides.
Profile picture of Casey
Casey from SWISCO responded:
June 17, 2021

Take a look at our video below for removing rusted pivot bars.
A quick learner from South Pasadena CA says:
June 17, 2021
Broken pivot pin top is pictured
Pivot pin head diameter 6/16"
From pivot head to first screw 1 1/4"
From first screw point to tip 1 1/2"
Space between screws 1"

Length 2 3/4 - 3"
Width 1/4"
Thickness 2/16"
Thumbnail of the uploaded file named 22BA2428-1A4A-459A-A602-E12B1BDA3E22.jpeg

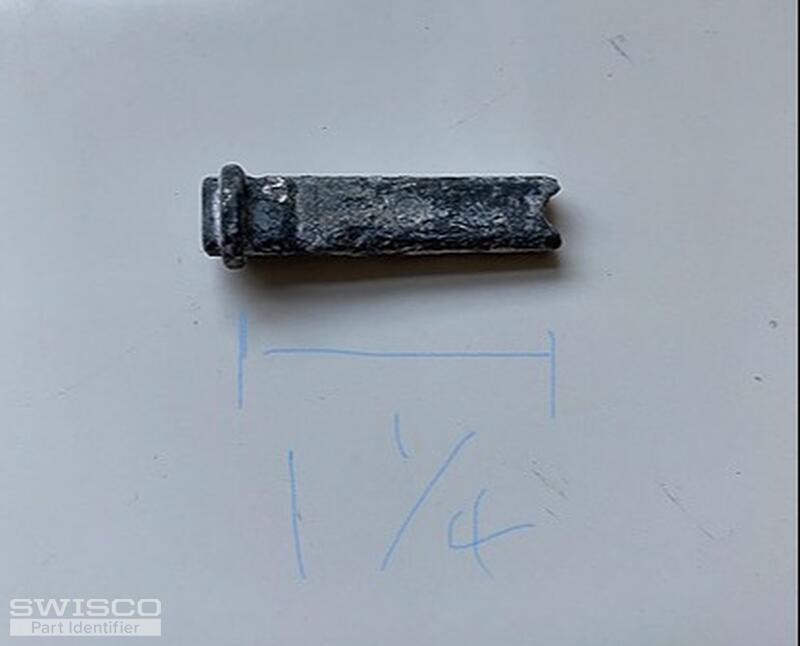

Thumbnail of the uploaded file named 1AB84106-33FB-4CDD-AA7C-901024EB8573.jpeg
Profile picture of Casey
Casey from SWISCO responded:
June 17, 2021

I would recommend starting with our 26-226 pivot bar and see if the specifications on our product page could work for you.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
