Question

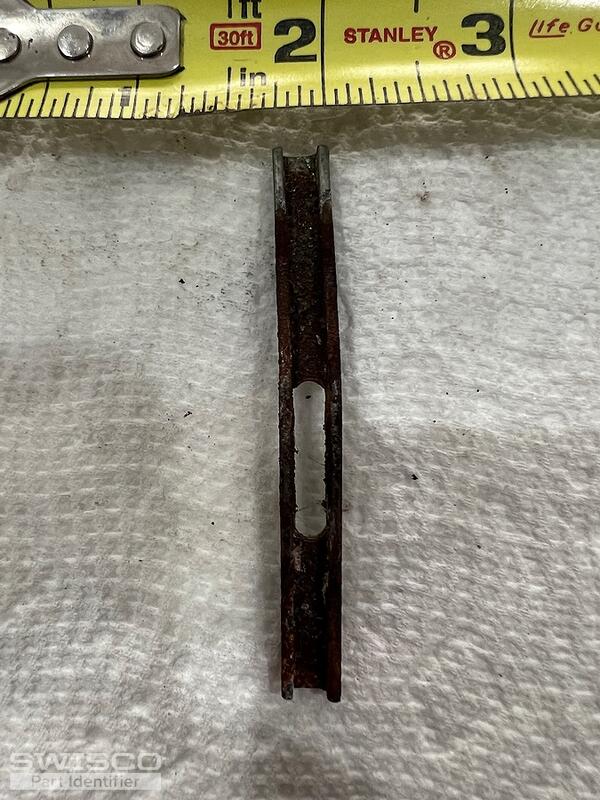

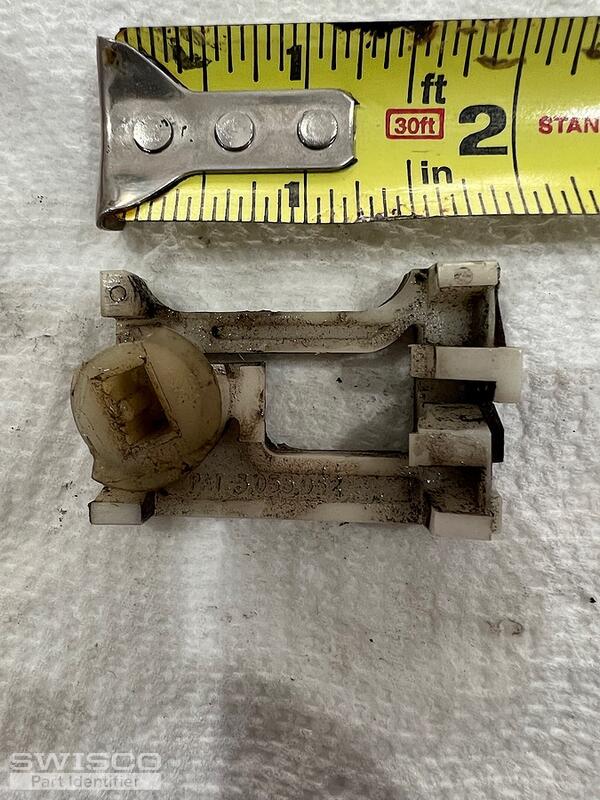

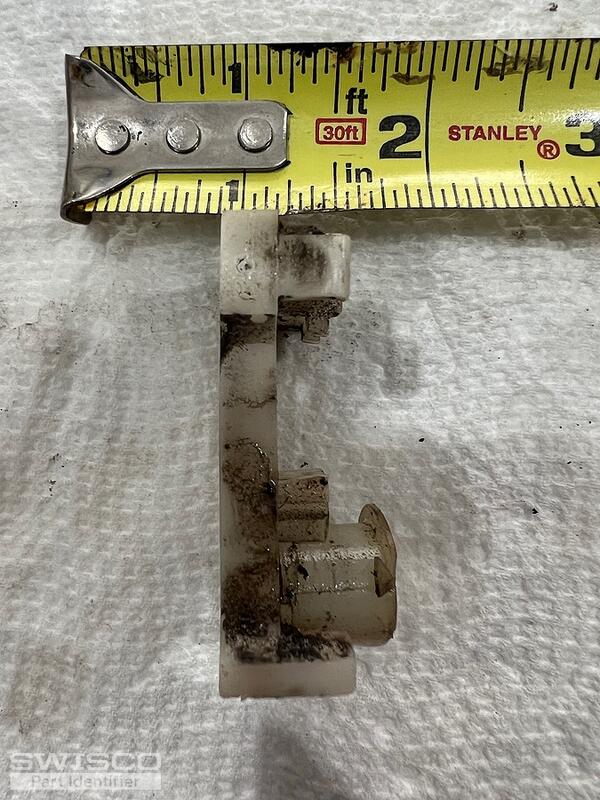

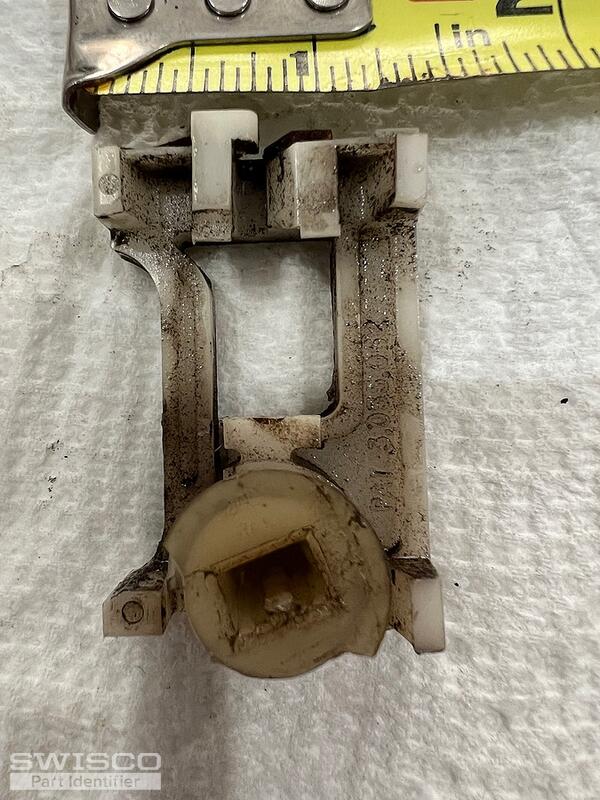

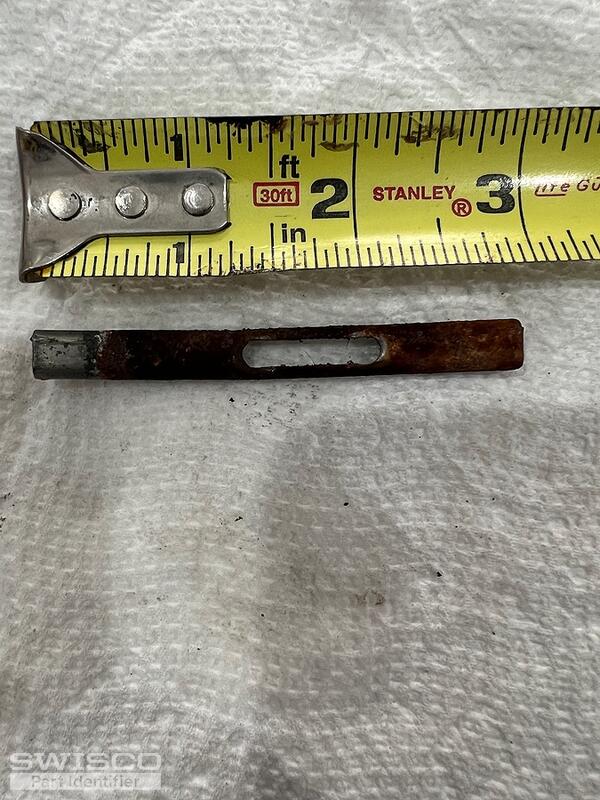

Can you help me identify the parts on these older double hung vinyl replacement windows?

Please review the attached pictures

the spiral balance has a red tip and the metal tube section is 22 inches long. They will need to be replaced as well.

I don't yet have a full quantity of windows, but it's approximately

Bob · Accepted Answer

Hello there. I believe your pivot shoe is an older version of the 15-015. Compare with the diagram below to be certain.

Dimensions for 15-015

For the pivot bar, see our 26-040. So long as the alignment of the hole matches the hole on your old pin, I think this can work for you. Let me know if it does not.

Alternate image for 26-040

Finally, it sounds like you have either a S900-22 3/8" diameter spiral balance, or an S600-22 5/8" diameter balance. Measure the diameter of the metal tube on your old balance to confirm which you need. Both come with red tip options.

Let me know if you have further questions.
