Pivot shoe

Quick Learner from Miamisburg Ohio
Jul 12, 2018 5:23 pm

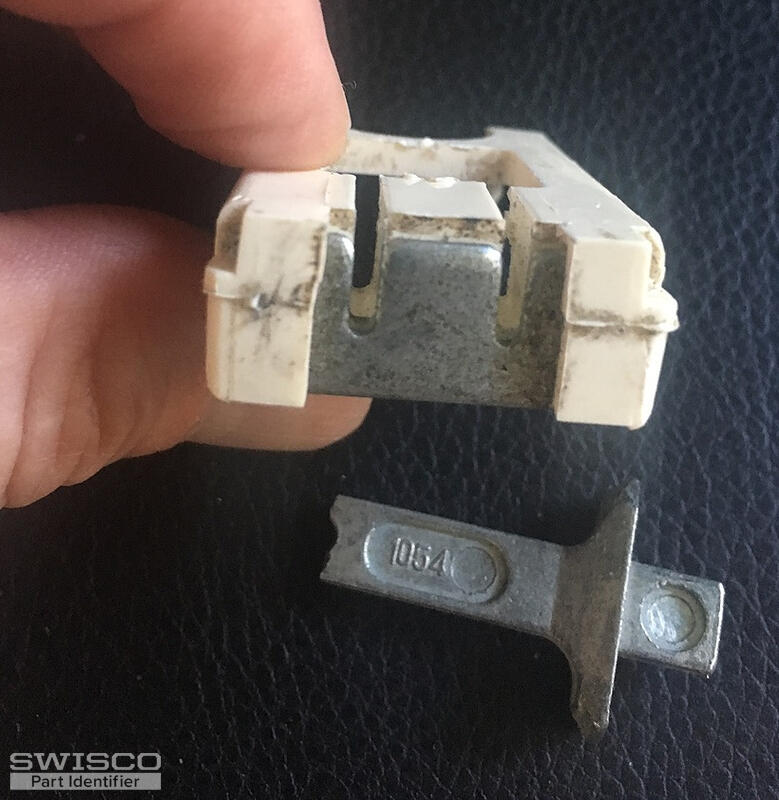

Pivot shoe size 9/16 thick by 1-1/4 wide by 2-1/8 tall pivot bar 2-1/2 inches long
94138025-F38D-4A7D-82BD-734141EE8E82 B47D1E38-33E9-49C3-B226-6A4A22CF5866 791C62AB-1794-4800-B457-F5F6E8752336 90359482-D8DF-476E-B73B-D6F8B1C118E2
4 user uploaded images
1 Replies
+ Add a Comment
Paul
Paul from SWISCO
Jul 13, 2018 1:20 pm
SWISCO
EXPERT

Hello,

It looks like your pivot shoe has been replaced with our 15-046 and the pivot bar is our 26-412. You'll also need our S765-21 with a spring weight of 20-5 and S765-23 with a spring weight of 22-5.

Let us know if you have any other questions. Thank you!
