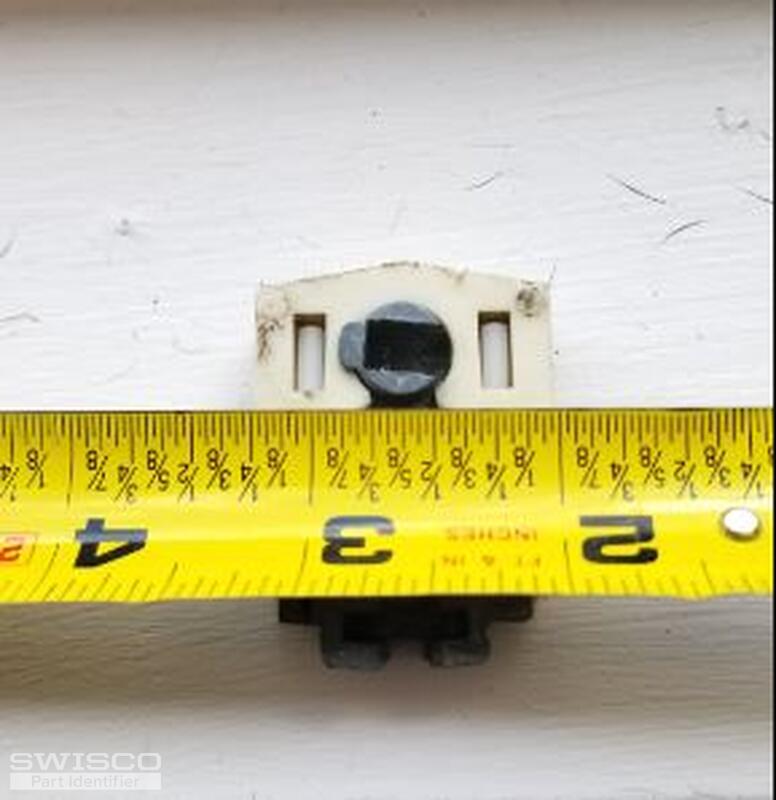

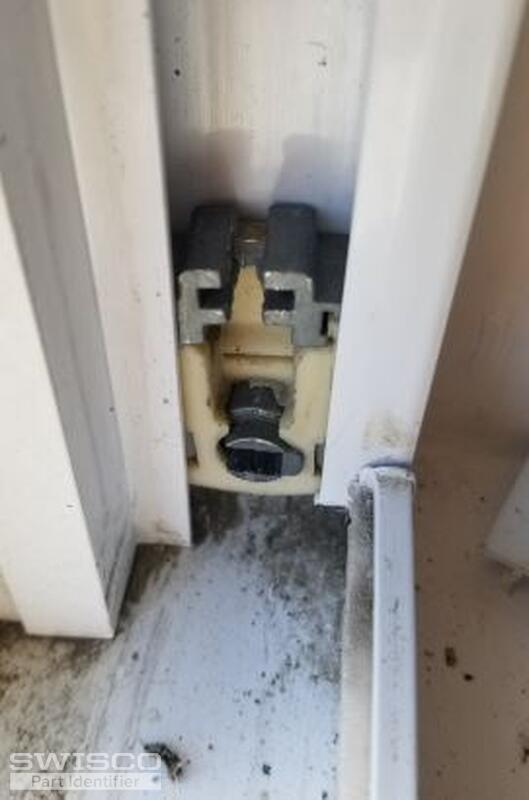

Can you help me identify this shoe or a suitable substitute...

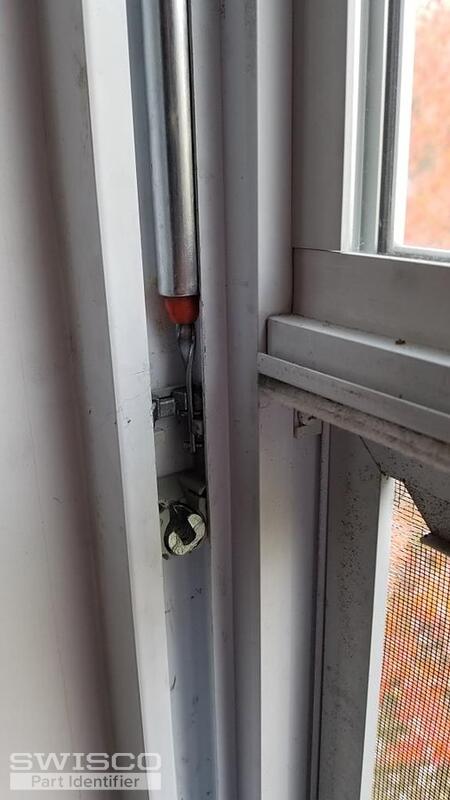

I believe that some type of metal bracket is required on the top in order to hold the end of the spiral balance.
The window that this came off of does not have a " tackle channel balance system ".

Please investigate further with your resources and let me know what you find out.
Thanks again for your continuing assistance.
Kindest regards.

5 user uploaded images

7 Replies

Quick Learner from USA

Oct 16, 2024 8:59 am

Don't know if this is helpful, but I also took a picture of the window tag... meant to send it yesterday as well.

Hoping to hear from someone sooner if possible. I have a customer waiting on this information and follow up order.

Regards

1 user uploaded image

Paul from SWISCO

Oct 18, 2024 11:57 am

Hello,

We've used the 15-129 pivot shoe to replace similar window hardware to yours in the past. Keep in mind that the height of the pivot shoe is not as important as the width and thickness. Review the specifications below and see what you think. Thanks for posting.

Detail of 15-129

Quick Learner from USA

Oct 22, 2024 7:52 pm

Could not wait for answer, so I already ordered the 15-188 and received it over the weekend. 1/2" wide, not 9/16". Fingers crossed, I think it will work.
Will post a follow up after I try and install everything that came to let you all know.
Thanks.

Paul from SWISCO

Oct 23, 2024 8:03 am

Keep in mind that the 15-188 also has a different style metal cam than your original pivot shoe, which could prevent the pivot bar from installing properly.

Quick Learner from USA

Oct 24, 2024 8:42 pm

Thanks Paul, I was able to get everything installed today. The pivot shoes that I ordered worked fine. I think the wider (9/16") ones would have been a problem. Thanks for your continuing support.
Kindest regards,
Brian

1 user uploaded image

Paul from SWISCO

Oct 25, 2024 8:19 am

It's good to hear that everything worked out for you. Just let us know if you have any other hardware questions.
