I was cleaning my double hung windows and pulled the top window out and broke the pivot lock shoe?
I haven't taken it out because I hurt my back when it came out trying to catch it. Can you tell me the part (s) I will need to fix it?

2 user uploaded images

4 Replies

Bob from SWISCO

Jun 25, 2023 10:03 pm

Thanks for posting. From what I can see, I suspect you have the 15-177 Pivot Shoe, but it will still be best to remove and compare when you can, just to be safe. See the diagram below for reference.

Alternate image for 15-177

Quick Learner from Dayton, Ohio

Jun 26, 2023 6:12 pm

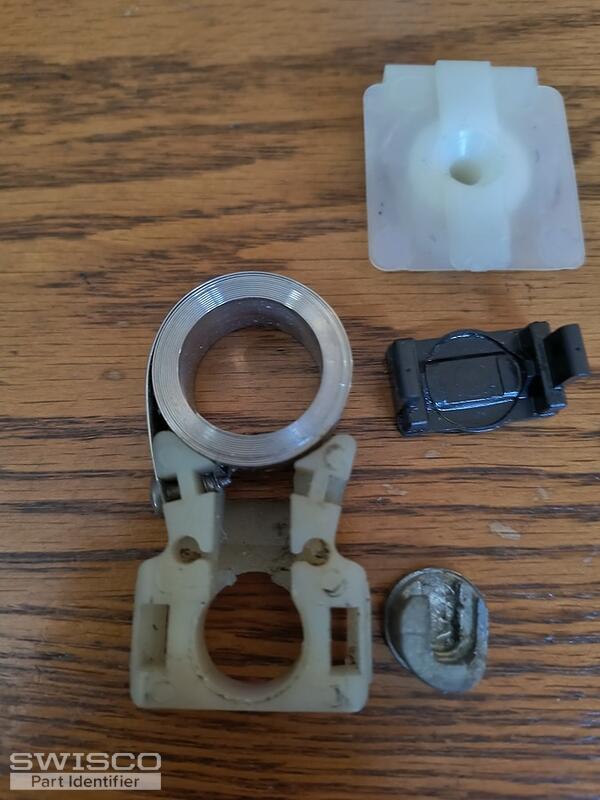

This looks very close to the 15-177. I see slight variations. As you can see it is just the metal cup that has fractured. Can those be replaced separately?

2 user uploaded images

Bob from SWISCO

Jun 27, 2023 9:25 am

That metal cup is called the "cam." These unfortunately aren't sold separately, so you do need a whole new pivot shoe. The good news is that our 15-177 can replace your original. Yours is just an older version. The modern 15-177 should be compatible with all the original hardware.
